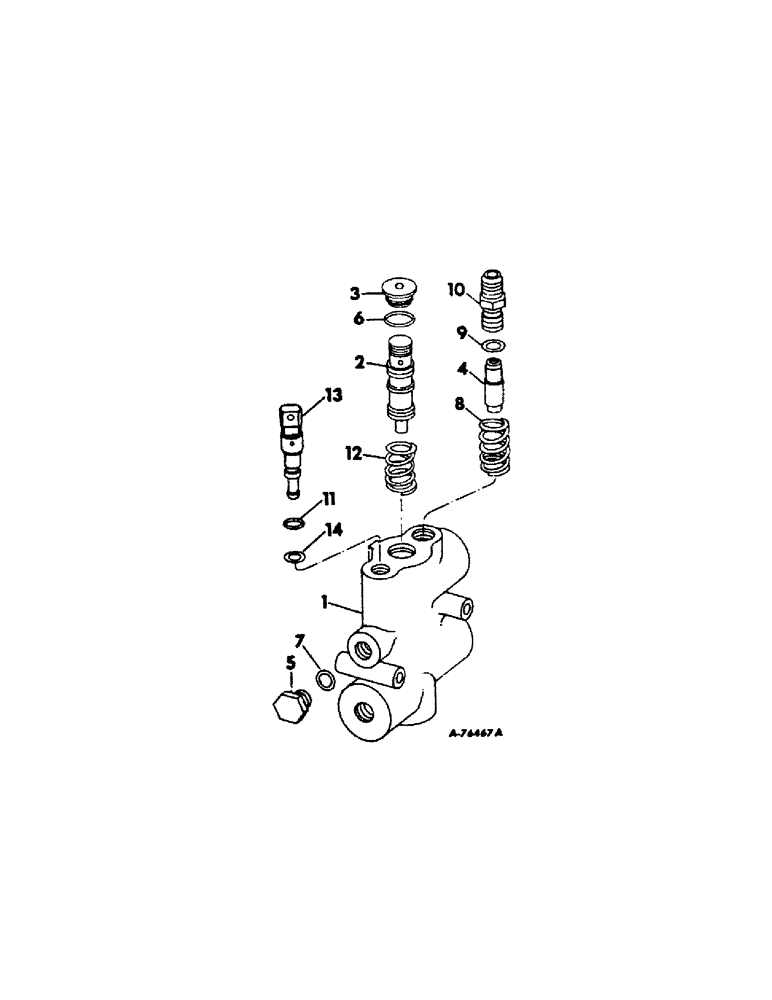

Запчасти Case IH 403 (188[1]) - REEL DRIVE FLOW DIVIDER S/N 1673 AND ABOVE (58) - ATTACHMENTS/HEADERS

1

BODY, flow divider, Not serviced separately order 165361C91

1шт.

18661R1

BOLT,Hex, 1/4"-20 x 2-1/2", G2

1/4 x 2-1/2 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

PISTON, Not serviced separately

1шт.

3

152415C1

PLUG, end

1шт.

4

654248R91

PISTON ASSY, releif

1шт.

5

9410357

PLUG

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

gasket

1шт.

8

654242R1

SPRING

1шт.

9

370920R1

O-RING,1/2" ID

seal

1шт.

10

654244R1

FITTING, male tube

1шт.

11

152418C1

RING, back-up

1шт.

12

SPRING, Not serviced separately

1шт.

13

173130C1

VALVE, control

1шт.

14

355967R1

O-RING,0.364" ID x 0.003" Width

seal

1шт.

7

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Gasket

1шт.
