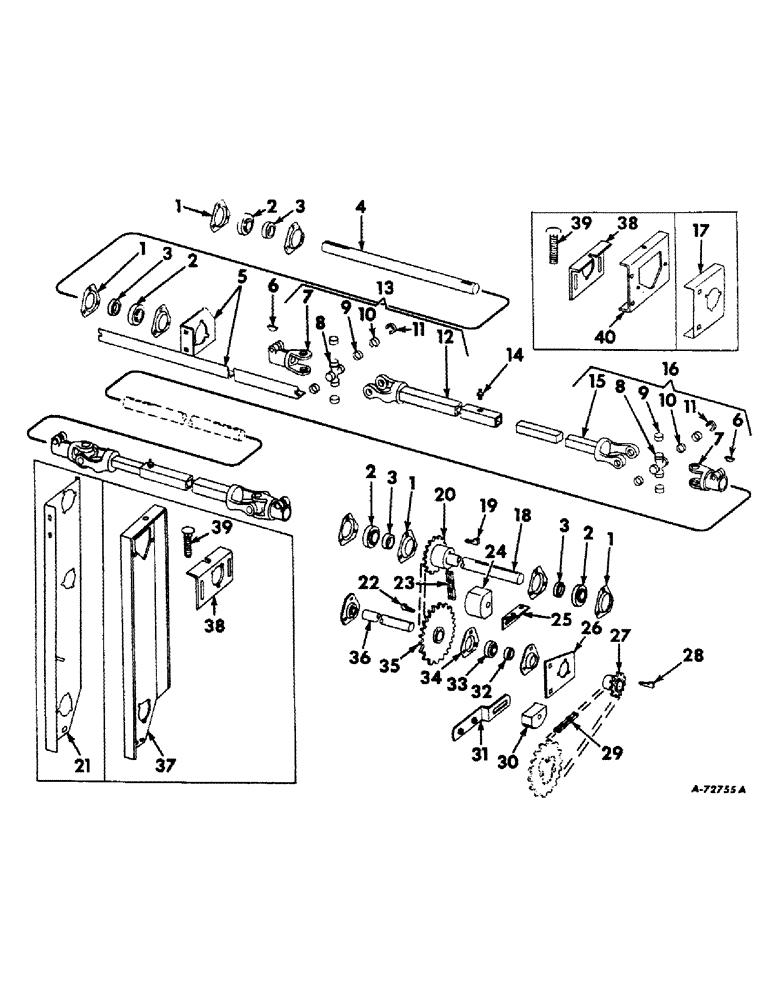

Запчасти Case IH 403 (028) - PLATFORM JACKSHAFT AND DRIVE KNUCKLES (58) - ATTACHMENTS/HEADERS

1

571425R1

FLANGED BEARING

platform jackshaft bearing

8шт.

3/8 X 1 CRG BOLT W/NUT

12шт.

3/8 LOCK WASHER

12шт.

2

557994R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.90625, 0.625"

ball

4шт.

3

557995R11

COLLAR

W/SET SCREW ASSY

4шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 SET SCREW

4шт.

4

571227R1

JACKSHAFT

platform, RH

1шт.

5

573827R91

SUPPORT W/BEAM, platform RH jackshaft 16-ft

1шт.

5

588514R91

SUPPORT W/BEAM, platform RH jackshaft 18-ft

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

6

117988

KEY

no. 28 Woodruff

4шт.

7

574271R1

YOKE, For use with 573826R91, 936652R91, 571269R91 and 581915R91 knuckle assy

4шт.

7

935895R91

YOKE, For use with 654657R91, 936650R91, 654659R91 and 654658R91 knuckle assy

4шт.

1/2 X 2-1/2 MACH BOLT W/NUT

4шт.

1/2 LOCK WASHER

4шт.

8

656226R91

U-JOINT SPIDER

KIT ASSY, spider, For use with 573826R91, 581915R91, 574269R91 and 936652R91 knuckle assy

4шт.

8

659262R91

U-JOINT SPIDER

KIT ASSY, spider, For use with 654657R91, 654658R91, 654659R91 and 936650R91 knuckle assy

4шт.

271284

YOKE

LUBRICATION FITTING

4шт.

9

M32994

WASHER, For use with 573826R91, 574269R91 and 581915R91 knuckle assy

16шт.

9

661656R1

WASHER, For use with 654657R91, 654659R91 and 654658R91 knuckle assy

16шт.

10

M32995

RETAINER

BEARING, For use with 573826R91, 574269R91 and 581915R91 knuckle assy

16шт.

10

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

For use with 654657R91, 654659R91 and 654658R91 knuckle assy

16шт.

11

M32991

SNAP RING, For use with 573826R91, 574269R91 and 581915R91 knuckle assy

16шт.

11

661657R1

RING

SNAP RING, For use with 654657R91, 654659R91 and 654658R91 knuckle assy

16шт.

12

935892R91

YOKE AND TUBE ASSY, for use with 573826R91 or 654658R91 knuckle assy, 16-ft

1шт.

12

581914R91

YOKE AND TUBE ASSY, for use with 581915R91 knuckle assy, 18-ft

1шт.

12

935893R91

YOKE AND TUBE ASSY, for use with 654657R91 knuckle assy, 18-ft

1шт.

13

573826R91

KNUCKLE

ASSY, platform jackshaft outer, optional for 654658R91 knuckle, 16-ft

2шт.

13

654658R91

JOINT TURNING

KNUCKLE ASSY, platform jackshaft outer, optional for 573826R91 knuckle, 16-ft

2шт.

13

581915R91

KNUCKLE ASSY, platform jackshaft outer, optional for 654657R91 knuckle, 18-ft

2шт.

13

654657R91

KNUCKLE ASSY, platform jackshaft outer, optional for 581915R91 knuckle, 18-ft

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

2шт.

15

574270R91

SHAFT AND YOKE ASSY, For use with 574269R91 knuckle assy, 16-ft

2шт.

15

935894R91

SHAFT AND YOKE ASSY, For use with 654659R91 knuckle assy, 16-ft

2шт.

15

936653R91

SHAFT AND YOKE ASSY, For use with 936652R91 knuckle assy, 18-ft

2шт.

15

936651R91

SHAFT AND YOKE ASSY, For use with 936650R91 knuckle assy, 18-ft

2шт.

16

574269R91

KNUCKLE

ASSY, platform jackshaft inner, optional for 654659R91 knuckle assy, 16-ft

2шт.

16

654659R91

KNUCKLE

ASSY, platform jackshaft inner, optional for 574269R91 knuckle assy, 16-ft

2шт.

16

936652R91

KNUCKLE

ASSY, platform jackshaft inner, optional for 936650R91 knuckle assy, 18-ft

2шт.

16

936650R91

KNUCKLE

ASSY, platform jackshaft inner, optional for 936652R91 knuckle assy, 18-ft

2шт.

17

571235R1

SUPPORT, LH, jackshaft outer bearing, Serial no., Serial Range: 501-640

1шт.

3/8 X 1 CRG BOLT W/NUT

5шт.

3/8 LOCK WASHER

5шт.

18

629470R1

JACKSHAFT, platform, LH

1шт.

19

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

1шт.

20

571266R91

SPROCKET ASSY.

SPROCKET W/HUB, reel lower jackshaft, 17-T

1шт.

21

573238R1

SUPPORT, LH, jackshaft inner bearing, Serial no., Serial Range: 501-640

1шт.

22

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib

1шт.

23

CHAIN, reel lower jackshaft drive chain, Use 29 links of 1-1/4 extended pitch roller chain, agricultural from a 10-ft roll marked 569089R91, 2 connecting links 587372R91, 1 roller link 456979R91 and 1 offset connecting link 456929R91

1шт.

24

575622R2

BLOCK

reel lower jackshaft drive chain tightener

1шт.

3/8 X 3 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

1шт.

25

571281R1

BRACKET, reel lower jackshaft drive chain tightener

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

26

571284R1

SUPPORT, reel lower jackshaft, LH, bearing

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

27

571282R91

SPROCKET W/HUB, reel upper jackshaft, 15-T

1шт.

28

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib

1шт.

29

CHAIN, reel upper jackshaft drive, Use 26 links of 1-1/4 extended pitch roller chain, agricultural, from a 10-ft roll 569089R91, 2 connecting links 456980R91, 2 offset connecting links 456924R91

1шт.

30

575874R1

BLOCK

reel upper jackshaft drive chain tightener

1шт.

5/16 X 2-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 1 X 16 GA WASHER

1шт.

15/32 X 1-1/4 X 16 GA WASHER

1шт.

31

574390R11

BRACKET W/NUT, reel jackshaft drive tightener

1шт.

32

455102R11

COLLAR

W/SET SCREW ASSY

2шт.

1/4 X 1/4 CUP-PT., set screw

2шт.

33

455101R91

BEARING

ball

2шт.

34

571424R1

FLANGE

PLATE, reel lower jackshaft bearing mounting

4шт.

5/16 X 1 CRT BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

35

571279R91

SPROCKET W/HUB, reel lower jackshaft driven, 40-T

1шт.

36

571283R1

JACKSHAFT, reel lower

1шт.

37

936621R1

SECTION, knife drive jackshaft bearing support, Serial no. 641 and above

1шт.

3/8 X 3 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

13/32 X 1 X 16 GA WASHER

3шт.

38

936623R1

BRACKET, knife drive jackshaft bearing, Serial no. 641 and above

2шт.

3/8 X 3/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

39

936625R1

BOLT, knife drive jackshaft bearing bracket, Serial no. 641 and above

2шт.

7/16 NUT

6шт.

40

936622R1

CHANNEL, knife jackshaft outer bearing, Serial no. 641 and above

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.
