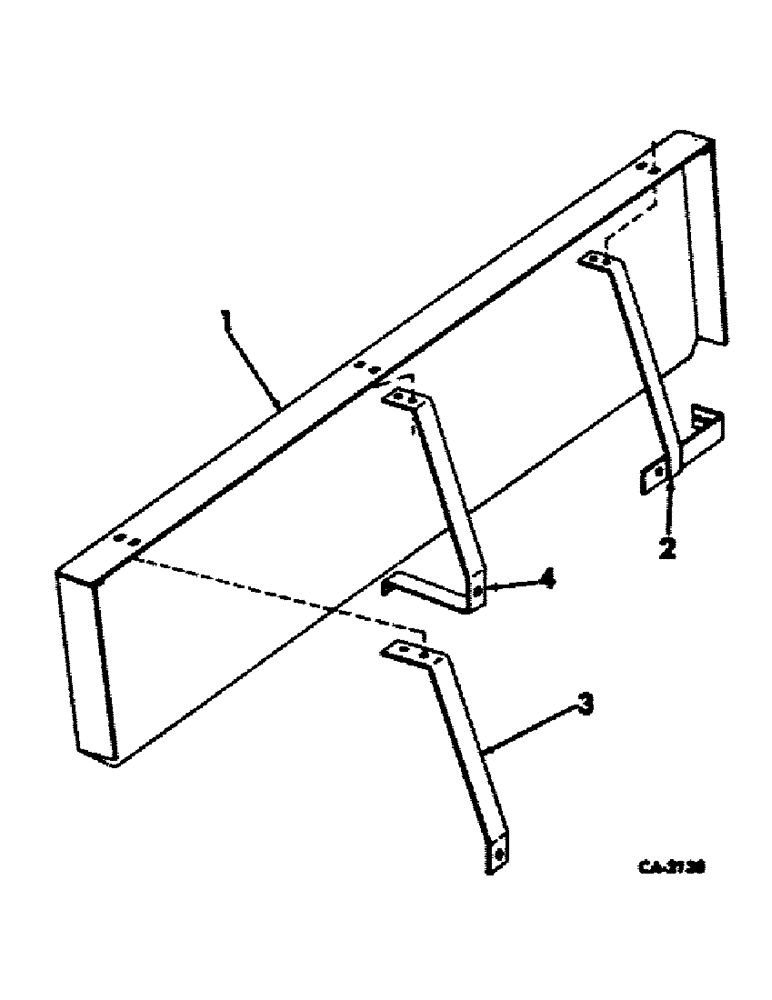

Запчасти Case IH 403 (027) - REEL DRIVE SHIELD (58) - ATTACHMENTS/HEADERS

1

156424C91

SECTION ASSY, reel drive shield

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

2

156903C91

BRACE ASSY, reel drive shield front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach, For chain drive reels

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach, For hydraulic chain reduction drive

1шт.

3

156918C1

REINFORCEMENT, reel drive chain shield rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach, For chain drive reels

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach, For hydraulic chain reduction drive

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

156919C1

REINFORCEMENT, reel drive chain shield center

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
