Запчасти Case IH 403 (025) - REEL, 5 BAT, IH DESIGN, REEL END GUARDS, OPTIONAL (58) - ATTACHMENTS/HEADERS

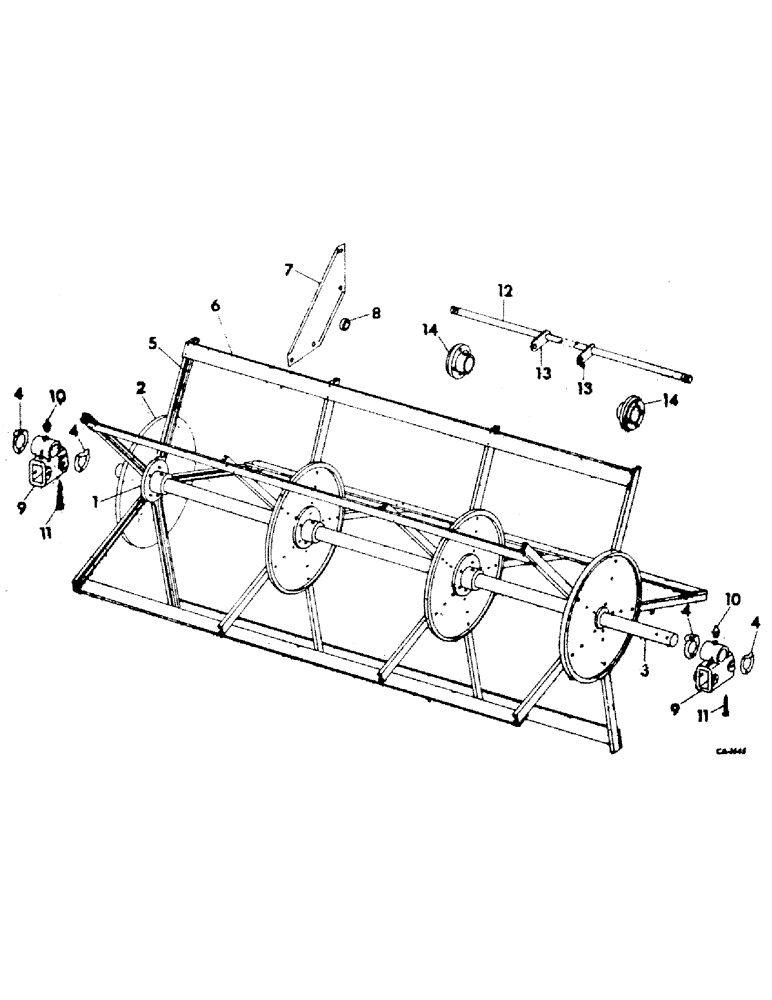

Схема запчастей Case IH 403 - (025) - REEL, 5 BAT, IH DESIGN, REEL END GUARDS, OPTIONAL (58) - ATTACHMENTS/HEADERS
4
9
1
10
11
3
4
4
8
6
14
9
5
11
14
4
2
7
13
10
12
13

Артикул

Название

Примечание

Количество

1

171219C1

HUB, reel arm support, 4 used 16-ft, 5 used 18-ft

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16 C-Z hex, jam

1шт.

19888R1

SCREW, 7/16 x 1 C-Z sq-hd set

1шт.

2

171220C1

SUPPORT, reel arm, 4 used 16-ft, 5 used 18-ft

1шт.

3

633180R1

SHAFT, reel, 16-ft

1шт.

3

170297C1

SHAFT, reel, 18-ft

1шт.

4

633177R1

WASHER

WASHER, cotter pin retaining

4шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

4шт.

Q3859

WASHER

1-25/32 x 2-3/4 x 11 GA

2шт.

22768R1

WASHER

1-25/32 x 2-3/4 x 18 GA

8шт.

5

633175R2

ARM, reel bat, 20 used 16-ft, 25 used 18-ft

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

632904R1

BAT, reel, 16-ft

5шт.

6

632905R1

BAT, reel, 18-ft

5шт.

21301R1

BOLT, 1/4 x 2-1/4 C-Z step

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

171396C1

GUARD

reel end, optional

10шт.

8

680295R1

SPACER, reel end guard, optional

20шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd mach

20шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

20шт.

9

633181R1

BRACKET

HOUSING, reel shaft support

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

11

633184R1

SET SCREW

reel shaft support housing

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 c-z hex. jam

2шт.

12

163523C91

ROD ASSY, reel truss, 18-ft

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

16шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 GA

8шт.

13

163521C1

BAR, reel truss rod

8шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

170280C1

HUB, reel truss rod, 18-ft

2шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex. type 8

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

Выбрано товаров: 40
