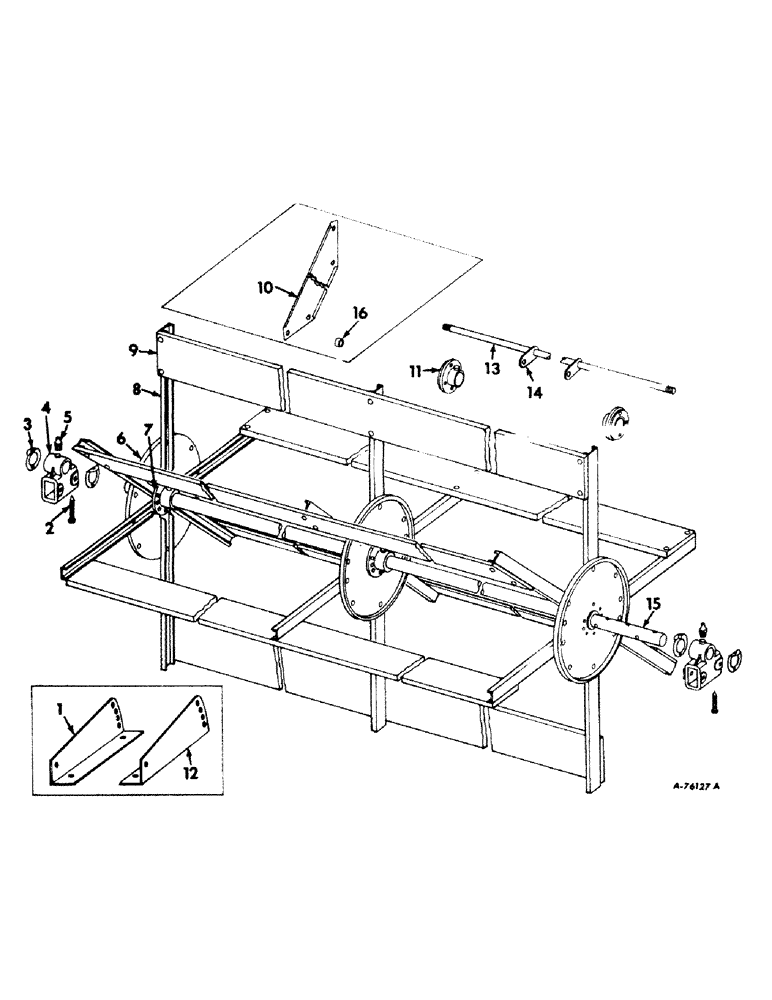

Запчасти Case IH 403 (023) - REEL, IH DESIGN, REEL END GUARDS, SPECIAL (58) - ATTACHMENTS/HEADERS

1

564843R1

CLAMP, bat RH adjusting, Serial no. 940 and below

4шт.

1/4 CD-PLTD NUT

8шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 SLT-RD-HD, cd-pltd mach screw

8шт.

1/4 CD-PLTD LOCK WASHER

8шт.

2

633184R1

SET SCREW

reel shaft support housing, 1/2 x 2 sq-hd

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 CD-PLTD., jam nut

2шт.

3

633177R1

WASHER

WASHER, cotter pin retaining

4шт.

1/4 X 2-1/4 COT. PIN

4шт.

Q3655

1-25/32 X 2-3/4 X 18 GA WASHER

8шт.

Q3859

WASHER

1-25/32 X 2-3/4 X 11 GA WASHER

2шт.

4

633181R1

BRACKET

HOUSING, reel shaft support

1шт.

1-25/32 X 2-3/4 X 11 GA WASHER

2шт.

1-25/32 X 2-3/4 X 18 GA WASHER

18шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

564841R1

SUPPORT, reel arm

1шт.

7

633172R1

HUB, arm support reel

1шт.

272122

BUSHING

7/16 CD-PLTD JAM NUT

1шт.

19888R1

7/16 X 1 CD-PLTD SQ-HD SET SCREW

1шт.

8

633175R2

ARM, reel

1шт.

5/16 X 1 CD-PLTD CRG BOLT W/NUT

1шт.

5/16 X 3/4 CD-PLTD MACH BOLT W/NUT

1шт.

5/16 CD-PLTD LOCK WASHER

1шт.

9

632904R1

BAT, reel, 6 used 16-ft

1шт.

9

632905R1

BAT, reel, 6 used 18-ft

1шт.

1/4 X 1-1/4 CD-PLTD STEP BOLT W/NUT

1шт.

1/4 CD-PLTD LOCK WASHER

1шт.

10

565396R1

GUARD, reel end, 4 bat reel, reel end guard attachment

8шт.

10

565395R1

GUARD, reel end, 6 bat reel, reel end guard attachment

12шт.

11

633174R1

ANCHOR, reel truss rod, 18-ft, Serial no. 1323 and above

2шт.

17006R1

BALL

BOLT, 7/16 x 3 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

12

564842R1

CLAMP, reel bat LH adjusting, Serial no. 940 and below

1шт.

13

153782C91

ROD ASSY, reel truss 18-ft, Serial no. 1322 and below

4шт.

1/2 CD-PLTD NUT

16шт.

76730H

WASHER

17/32 X 1-1/2 X 11 GA WASHER

8шт.

13

163523C91

ROD ASSY, reel truss, Serial no. 1323 and above

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

16шт.

464623R1

WASHER

21/32 x 1-1/2

1шт.

14

571579R1

CLIP, reel truss rod, 18-ft, Serial no. 1322 and below

12шт.

14

163521C1

BAR, reel truss rod, Serial no. 1323 and above

8шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

633180R1

SHAFT, reel, 16-ft

1шт.

15

633168R2

SHAFT, reel 18-ft

1шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

Q3655

1-25/32 X 2-3/4 X 18 GA WASHER

1шт.

Q3859

WASHER

1-25/32 X 2-3/4 X 11 GA WASHER

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 CD-PLTD SLT-RD-HD MACH SCREW

1шт.

1/4 CD-PLTD LOCK WASHER

1шт.

16

580295R1

SPACER

reel end guard, reel end guard attachment

24шт.

1/4 X 1-1/4 C-Z HEX-HD MACH

24шт.

1/4 C-Z NUT

24шт.

1/4 C-Z MED LOCK

24шт.
