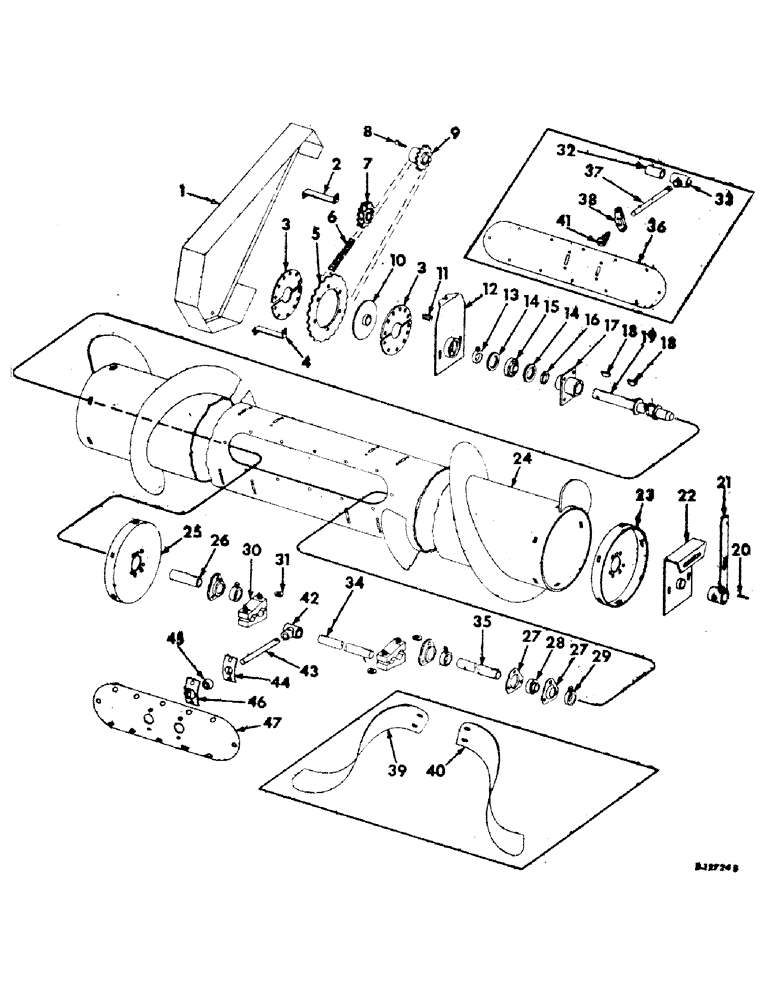

Запчасти Case IH 403 (020) - PLATFORM AUGER AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
571261R91
SHIELD W/WRAPPER, platform auger drive
1шт.
2
571265R1
BRACKET, platform auger drive shield upper
1шт.
3
570890R1
PLATE, platform auger slip clutch pressure
4шт.
5/16 X 2 MACH BOLT
6шт.
230-4115
LOCK NUT,5/16"-18, GA
5/16 STOVER LOCK NUT
6шт.
5/16 LOCK WASHER
6шт.
11/32 X 1 X 16 GA WASHER
6шт.
4
571264R11
BRACKET ASSY, platform auger drive shield lower
2шт.
5/16 NUT
2шт.
5/16 LOCK WASHER
2шт.
5
571256R1
SPROCKET, platform auger driven, 25-T
1шт.
6
CHAIN, platform auger drive roller, Use 57 links of 1-1/4 extended pitch roller chain from a 10-ft roll marked 569089R91, 2 offset connecting links 456929R91 and one connecting link 456980R91
1шт.
7
582415R91
DRIVE SPROCKET,9T
SPROCKET ASSY, platform auger drive tightener
1шт.
5/8 X 2 HEX-HD MACH BOLT
1шт.
5/8 HEX. NUT
1шт.
5/8 LOCK WASHER
1шт.
10620P
WASHER
21/32 X 1-1/2 X 16 GA WASHER
3шт.
8
Q1497
KEY,Gib, 3/8" Sq x 2"
3/8 x 2 gib
1шт.
9
571266R91
SPROCKET ASSY.
SPROCKET W/HUB, platform auger drive, 17-T
1шт.
10
571257R91
HUB
W/DISC, platform auger driven sprocket slip clutch
1шт.
3/8 X 1-3/4 ROLL PIN
1шт.
11
568243R1
SPRING
platform auger slip clutch
6шт.
12
564810R91
PLATE W/HOUSING, platform auger adjusting RH
1шт.
M86308
3/8 X 5-1/2 BOLT
1шт.
3/8 NUT
2шт.
Q1505
WASHER
13/32 X 1 X 16 GA WASHER
1шт.
13
557995R11
COLLAR
W/SET SCREW ASSY, locking
1шт.
14
561088R1
SNAP RING,#244, 2.588", Int, Spiral
platform auger LH bearing retaining
2шт.
15
563883R91
BALL BEARING,31.75mm ID x 62mm OD x 16mm W
BEARING, ball
1шт.
16
569260R1
SPACER, platform auger LH shaft, Serial no. 1089 and below
1шт.
16
153311C1
SPACER
platform auger shaft LH, Serial no. 1090 and above
1шт.
17
935965R1
HUB CAP
HUB, platform auger drive sprocket, Serial no. 1089 and below
1шт.
19
153417C11
SHAFT
ASSY, platform auger right
1шт.
F18476
WASHER
1-9/32 X 1-3/4 X 16 GA WASHER
1шт.
20
Q98
KEY, 1/4 x 1/4 x 1-7/8 straight 1/4" Sq x 1 7/8", Par
1шт.
21
155201C91
LEVER ASSY, platform auger finger adjusting
1шт.
106839
SET SCREW,Sq Hd, 5/16"-18 x 1"
5/16 X 1 SQ-HD DOG-PT SET SCREW
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
5/16 X 5/16 CUP-PT SET SCREW
1шт.
5/16 JAM NUT
1шт.
22
569244R21
PLATE W/HUB, platform auger adjusting LH
1шт.
565392R1
3/8 X 7-1/2 BOLT
1шт.
3/8 C-Z HEX. NUT
3шт.
Q1505
WASHER
13/32 X 1 X 16 GA WASHER
2шт.
3/8 X 1-1/4 CRG BOLT
1шт.
3/8 LOCK WASHER
1шт.
23
565669R91
DISC W/STUD, platform auger LH
1шт.
7/16 NUT
4шт.
7/16 LOCK WASHER
4шт.
24
573823R91
AUGER ASSY, platform 16-ft, Serial no. 805 and below
1шт.
24
150825C91
AUGER ASSY, platform 16-ft, Serial no. 806 and above
1шт.
24
588516R91
AUGER ASSY, platform 18-ft, Serial no. 805 and below
1шт.
24
150827C91
AUGER ASSY, platform 18-ft, Serial no. 806 and above
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
18шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 HEX. NUT
18шт.
25
563246R1
FLANGE
DISC, platform auger end RH
1шт.
5/16 X 3/4 CRG BOLT W/NUT
3шт.
5/16 LOCK WASHER
3шт.
26
558353R1
SHAFT
PIN, platform auger stub
1шт.
27
571424R1
FLANGE
bearing
6шт.
28
455101R91
BEARING
ball
3шт.
29
455102R11
COLLAR
W/SET SCREW, locking
3шт.
30
566608R11
CLAMP
ARM W/NUT, screw and washer assy, platform auger shaft
2шт.
3/8 X 2-1/4 CAP SCREW
4шт.
3/8 NUT
4шт.
3/8 LOCK WASHER
4шт.
31
28459KA
WASHER
platform auger shaft arm
4шт.
32
558318R1
HALF-BUSHING
BUSHING, platform auger finger, Serial no., Serial Range: 501-640
12шт.
33
558316R2
HUB
platform auger finger bearing, Serial no., Serial Range: 501-640
12шт.
5/16 X 1 SQ-HD CUP-PT SET SCREW
12шт.
5/16 JAM NUT
12шт.
33
617182R1
BUSHING
HUB, platform auger finger bearing, Serial no., Serial Range: 641-805
12шт.
34
569250R1
SHAFT
platform auger center, Serial no. 805 and below
1шт.
25/32 X 1-1/4 X 16 GA WASHER
6шт.
34
150829C1
SHAFT
platform auger center, Serial no. 806 and above
1шт.
575813R1
WASHER
25/32 X 1-1/4 X 11 GA WASHER
11шт.
35
573650R1
SHAFT, platform auger adjusting 16-ft
1шт.
35
654023R1
SHAFT, platform auger adjusting 18-ft
1шт.
36
569259R1
PLATE, platform auger inspection, Serial no. 805 and below
1шт.
113859
BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"
5/16 X 1/2 SLT-RD-HD MACH SCREW
12шт.
5/16 LOCK WASHER
12шт.
37
564954R1
FINGER
platform auger, Serial no., Serial Range: 501-640
12шт.
37
936655R1
FINGER
platform auger, Serial no., Serial Range: 641-805
12шт.
3/16 X 1-1/2 COTTER PIN
1шт.
38
653935R2
GUIDE
platform auger finger, Serial no. 805 and below
12шт.
39
569587R91
EXTENSION
W/CLIP, platform auger RH, platform auger extension att
1шт.
5/16 X 3/4 CRG BOLT W/NUT
2шт.
5/16 X 1 MACH BOLT
1шт.
5/16 LOCK WASHER
2шт.
11/32 X 3/4 X 16 GA WASHER
3шт.
558384R91
NUT
platform auger extension clip
1шт.
40
569586R91
EXTENSION W/CLIP, platform auger LH, platform auger extension att
1шт.
5/16 X 3/4 CRG BOLT W/NUT
2шт.
5/16 X 1 MACH BOLT
1шт.
5/16 LOCK WASHER
2шт.
11/32 X 3/4 X 16 GA WASHER
2шт.
558384R91
NUT
platform extension clip
1шт.
41
936693R1
CAPSCREW,Tapping, 1/4" x 7/8"
SCREW, platform auger pin guide, Serial no. 805 and below
12шт.
42
150725C1
HUB CAP
HUB, platform auger finger, Serial no. 806 and above
12шт.
43
150728C1
SHAFT
PIN, platform auger finger, Serial no. 806 and above
12шт.
150724C1
SPLIT PIN/SAFETY PIN
PIN, quick attachable
1шт.
44
150723C1
RETAINER
platform auger pin bushing inner, Serial no. 806 and above
12шт.
45
170720C1
BUSHING,13.13mm ID x 28.4mm OD
platform auger pin, Serial no. 806 and above
12шт.
46
150726C1
RETAINER
platform auger pin bushing outer, Serial no. 806 and above
12шт.
1/4 C-Z NUT
24шт.
1/4 X 1/2 C-Z SLT TRUSS-HD MACH SCREW
24шт.
1/4 C-Z LOCK WASHER
24шт.
47
150731C1
COVER
platform inspection, Serial no. 806 and above
1шт.
5/16 X 3/4 C-Z PAN HD SELF TAPPING SCREW
12шт.
5/16 C-Z LOCK WASHER
12шт.
