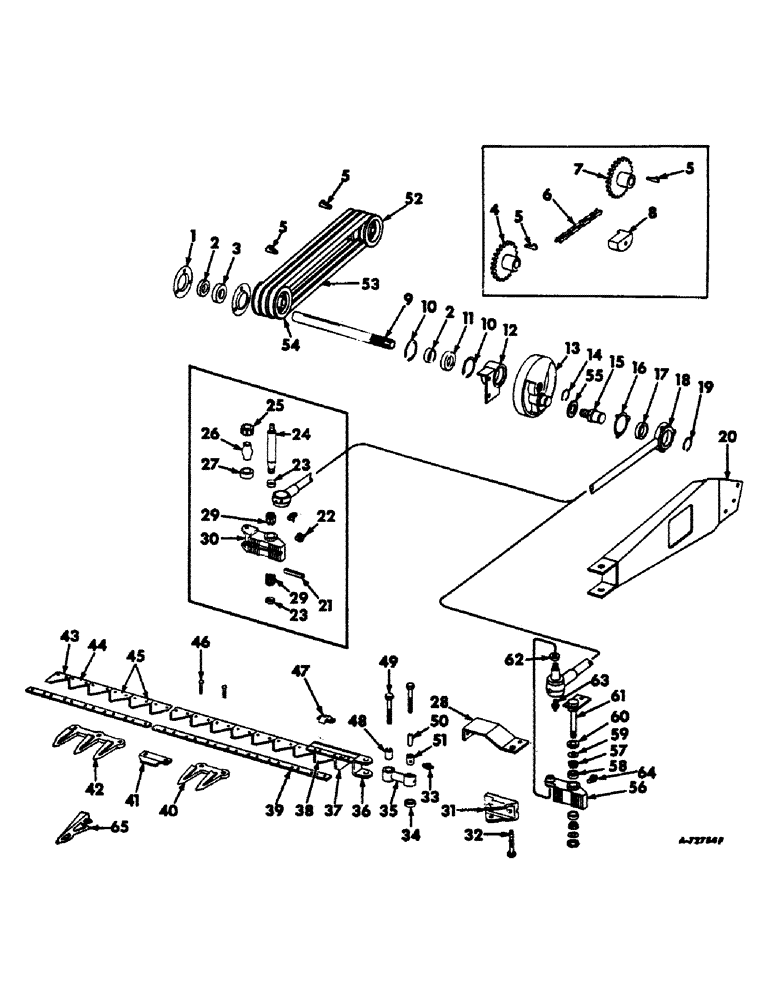

Запчасти Case IH 403 (017) - KNIFE AND KNIFE DRIVE, GRAIN LIFTERS ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

617863R1

FLANGED BEARING

RETAINER, knife crank drive shaft RH bearing

2шт.

2

517645R11

COLLAR

w/set screw, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT. SET SCREW

1шт.

3

517644R91

BEARING

ball

1шт.

4

573235R91

SPROCKET W/HUB, knife driven, 27-T, Serial no., Serial Range: 501-640

1шт.

5

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

2шт.

6

CHAIN, knife drive roller, Use 100 links of 5/8 pitch stock roller chain, standard, from a 10-ft roll marked 1791D, two roller links 1309D, 2 connecting links 1310D and 1 offset link 1315D, Serial no., Serial Range: 501-640

1шт.

7

634747R91

SPROCKET W/HUB, knife drive, 31-T, Serial no., Serial Range: 501-640

1шт.

8

575622R2

BLOCK

knife drive chain tightener, Serial no., Serial Range: 501-640

1шт.

3/8 X 1-3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

551175R1

WASHER

19/32 X 1-1/2 X 16 GA WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

9

589806R1

SHAFT

knife crank drive

1шт.

551769R1

WASHER

1-13/32 X 2 X 16 GA WASHER, Serial no. 1672 and below

5шт.

9

171645C1

SHAFT, knife crank drive, Serial no. 1673 and above

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

WASHER, 1/2 C-Z med lock

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga C-Z

1шт.

10

512889R1

RING

SNAP RING, knife crank drive shaft LH

1шт.

11

573856R91

BEARING

ball

1шт.

12

589804R91

SUPPORT W/HOUSING, knife crank drive shaft LH bearing

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

3шт.

1/2 LOCK WASHER

3шт.

13

168745C1

PLATE ASSY.

CRANK, knife pitman, Serial no. 1672 and below

1шт.

13

167476C1

CRANK

ASSY, knife pitman, Serial no. 1673 and above

1шт.

631191R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

5/8 X 5 MACH BOLT

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

14

565644R1

RING, SNAP

SNAP RING, For use w/589036R1 crank

1шт.

15

583050R1

TRUNNION

STUD, knife crank, For use w/589036R1 crank

1шт.

20798R1

WASHER

1-1/32 X 2 X 16 GA WASHER

1шт.

16

572139R1

RETAINER

knife Pitman bearing

1шт.

1/4 X 1-1/4 CAP SCREW

3шт.

1/4 NUT

3шт.

1/4 LOCK WASHER

3шт.

17

150397C91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9843"

BALL

1шт.

18

936581R91

PITMAN W/ARM ASSY, knife, Serial no. 805 and below

1шт.

5/16 JAM NUT

1шт.

106837

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

5/16 X 3/4 SQ-HD., dog-pt., set screw

1шт.

18

939866R91

PITMAN ASSY.

PITMAN ASSY, knife, Serial no. 806 and above

1шт.

1/8 X 1-1/2 COTTER PIN

1шт.

12258R1

WASHER

21/32 X 1-1/4 X 11 GA WASHER

1шт.

19

26540D

RING, SNAP

SNAP RING

1шт.

20

572986R1

BRACE, platform knife Pitman, Serial no. 805 and below

1шт.

20

939875R91

BRACE ASSY, platform knife Pitman, Serial no. 806 and above

1шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

2шт.

21

Q56

KEY, 1/2 x 2 square, Serial no. 805 and below 1/2" Sq x 2", Par

1шт.

22

16964R91

FITTING

1/4 90 deg. elbow lubrication, Serial no. 805 and below

1шт.

23

564808R91

WIPER

OIL SEAL, Serial no. 805 and below

2шт.

24

572223R1

TRUNNION

STUD, knife bellcrank, Serial no. 805 and below

1шт.

5/8 NUT

1шт.

5/8 JAM NUT

1шт.

3/4 SLT. NUT

1шт.

1/8 X 1-1/2 COTTER PIN

1шт.

1-5/32 X 1-3/4 X 22 GA WASHER

2шт.

1-5/32 X 1-3/4 X 16 GA WASHER

5шт.

575810R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

1шт.

25

572980R1

SEAT

BALL SEAT, knife driver upper, Serial no. 805 and below

1шт.

26

572979R1

JOINT TURNING

BALL, knife bellcrank, Serial no. 805 and below

1шт.

27

572981R1

SEAT

BALL SEAT, knife drive lower, Serial no. 805 and below

1шт.

28

572989R1

TIE, knife drive bellcrank top support, Serial no. 805 and below

1шт.

28

939864R1

TIE, knife drive bellcrank top support, Serial no. 806 and above

1шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

29

142929H

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 25.4mm W

BEARING, needle, Serial no. 805 and below

2шт.

30

633648R11

ANGLE

BELLCRANK W/BEARING ASSY, rear half, Includes ref no. 33, Serial no. 805 and below

1шт.

31

633647R1

LEVER

BELLCRANK, knife drive front half

1шт.

5/8 X 4 CAP SCREW

1шт.

5/8 X 2-3/4 CAP SCREW

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

2шт.

32

573034R1

BOLT, knife drive ball, 1/2-20 UNF x 4 bolt machine, Serial no. 805 and below

1шт.

1/2 NUT

1шт.

1/2 LOCK WASHER

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

34

697494R91

OIL SEAL

OIL SEAL

2шт.

35

654731R11

DRAG LINK

LINK W/BUSHING ASSY, knife bellcrank, Includes ref nos 48 and 51

1шт.

36

172726C1

HEAD (CYLINDER)

HEAD, knife

1шт.

1/4 X 1 X 74 DEG. CSK-HD RIVET

8шт.

37

634789R1

KNIFE SECTION

SECTION, knife half LH

1шт.

37

634790R1

KNIFE SECTION

SECTION, knife half LH, chrome plated

1шт.

1/4 X 1 X 74 DEG. CSK-HD RIVET

2шт.

38

634787R1

KNIFE SECTION

SECTION, knife, serrated

3шт.

38

634788R1

KNIFE SECTION

SECTION, knife, serrated, chrome plated

3шт.

NO. 6 X 5/8 OVAL-HD RIVET

1шт.

39

KNIFE BACK, Not serviced separately

1шт.

40

633098R1

GUARD

knife double, 28 used 16-ft, 35 used 18-ft

1шт.

41

552082R1

GUIDE

CLIP, knife hold-down, 15 used 16-ft, 17 used 18-ft

1шт.

42

633240R1

GUARD

knife triple, 3 used 16-ft, 1 used 18-ft

1шт.

43

634791R1

KNIFE SECTION

SECTION, knife half RH

1шт.

43

634792R1

KNIFE SECTION

SECTION, knife half RH, chrome plated

1шт.

NO. 6 X 5/8 OVAL-HD RIVET

1шт.

44

634793R1

KNIFE SECTION

SECTION, knife, serrated

1шт.

44

634794R1

KNIFE SECTION

SECTION, knife, serrated, chrome plated, 61 used 16-ft, 69 used 18-ft

1шт.

NO. 6 X 5/8 OVAL-HD RIVET

1шт.

45

634799R92

KNIFE

ASSY, 18 ft, Includes ref nos. 36, 37, 38, 39, 43, and 44

1шт.

45

634805R91

KNIFE

ASSY, 18 ft, chrome plated, Includes ref nos 36, 37, 38, 39, 43, and 44

1шт.

45

935652R91

KNIFE W/BACK, head and section, Includes ref nos 36, 37, 38, 39, 43, and 44, 16 ft

1шт.

45

935653R91

KNIFE W/BACK, head and section, Includes ref nos 36, 37, 38, 39, 43, and 44, chrome plated, 16 ft

1шт.

46

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

BOLT, knife hold-down clip, 3/8 x 1-3/8, 30 used 16-ft, 40 used 18-ft, Serial no. 940 and below

1шт.

46

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, knife hold-down clip, Serial no. 941 and above

1шт.

3/8 NUT

1шт.

3/8 LOCK WASHER

1шт.

47

634977R1

GUIDE

knife

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2 CRG BOLT

2шт.

3/8 NUT

2шт.

3/8 LOCK WASHER

2шт.

48

654455R91

BUSHING

right

1шт.

49

568316R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3"

BOLT, knife bellcrank link LH

1шт.

49

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, knife bellcrank link RH

1шт.

3/4 NUT

1шт.

3/4 LOCK WASHER

1шт.

50

565627R1

BUSHING

SLEEVE, knife bellcrank link LH

1шт.

51

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

LH

1шт.

52

936618R1

PULLEY, knife drive, Serial nos 641 and above

1шт.

53

936620R11

V-BELT

Knife drive, Matched set, Serial no. 641 and above

1шт.

54

936619R1

PULLEY, knife driven, Serial no. 641 and above

1шт.

55

936626R1

WASHER

knife bellcrank, Serial no. 805 and below

1шт.

56

939296R1

ARM ASSY.

BELLCRANK, knife drive rear half, Serial no. 806 and above

1шт.

57

518120R91

ROLLER BEARING,0.75" ID x 1.933" OD x 0.71"

knife drive rear half bellcrank cone, Serial no. 806 and above

2шт.

58

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

BEARING, knife drive rear half bellcrank cup, Serial no. 806 and above

2шт.

59

939736R1

WASHER

FLINGER, knife drive rear half bellcrank bearing, Serial no. 806 and above

2шт.

60

939737R1

WASHER

CLOUSER, knife drive rear half bellcrank bearing, Serial no. 806 and above

2шт.

61

939291R91

BOLT (SPREADER)

BOLT ASSY, bellcrank, Serial no. 806 and above

1шт.

427640

SLOTTED NUT,3/4"-16, G5

3/4 C-Z HEX. SLTD NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

575813R1

WASHER

25/32 X 1-1/4 X 11 GA WASHER

1шт.

62

151926C1

SEAL

SEAL, knife Pitman socket dust, Serial no. 806 and above

1шт.

63

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg lub, Serial no. 806 and above

1шт.

64

16964R91

FITTING

1/4-90 deg lub, Serial no. 806 and above

1шт.

65

163417C91

GRAIN LIFTER

LIFTER ASSY, grain, special

1шт.
