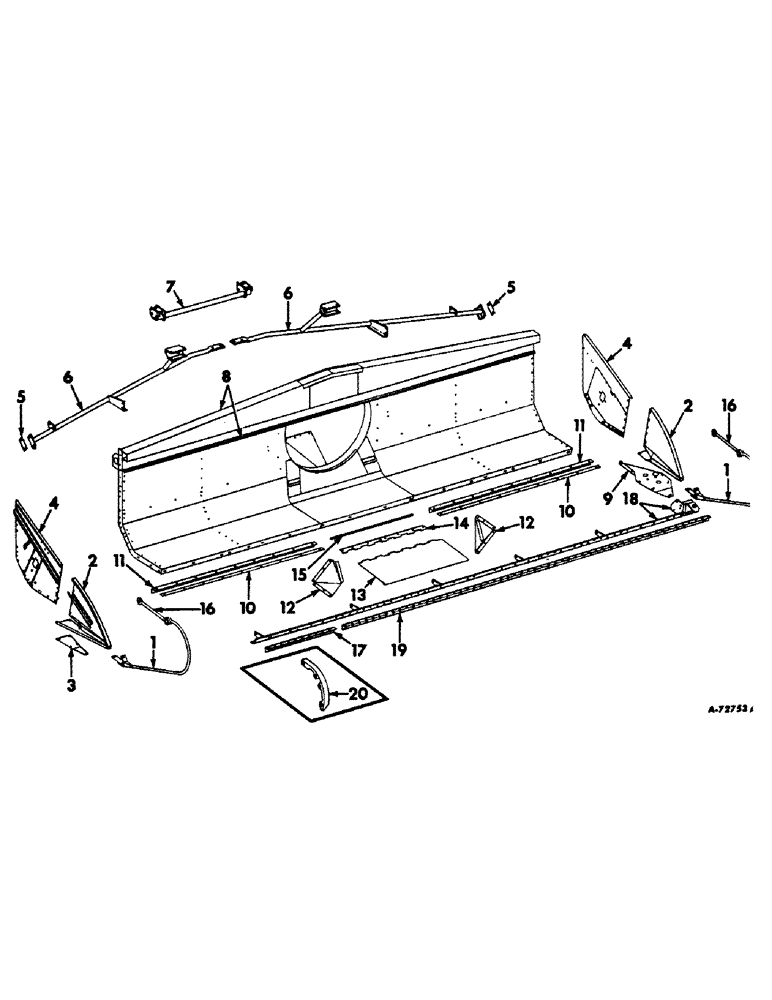

Запчасти Case IH 403 (015) - PLATFORM (58) - ATTACHMENTS/HEADERS

1

568309R91

ROD

W/LINK, divider, Includes ref. no. 16

2шт.

5/16 X 3/4 CRG

2шт.

5/16 X 1 CRG

2шт.

5/16 HEX. NUT

4шт.

5/16 LOCK WASHER

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA

2шт.

2

634558R91

DIVIDER ASSY, platform RH

1шт.

2

634557R91

DIVIDER ASSY, platform LH

1шт.

5/16 X 1/2 CRG BOLT W/NUT

4шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

1/4 NUT

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

2шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

8шт.

3

634580R1

PLATE

STIFFENER, platform divider runner RH runner

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

5шт.

4

634667R91

END W/STIFFENER, platform LH

1шт.

4

634668R91

END W/STIFFENER, platform RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 X 1 CRG BOLT W/NUT

12шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

7/16 X 1-1/4 CRG BOLT W/NUT

2шт.

5/16 X 1/2 MACH BOLT W/NUT

4шт.

5/16 X 3/4 MACH BOLT W/NUT

6шт.

5/16 LOCK WASHER

26шт.

3/8 LOCK WASHER

4шт.

7/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

13/32 X 1 X 16 GA WASHER

4шт.

5

570369R1

SHIM, platform lower brace outer plate

6шт.

6

588232R91

BRACE W/TIE, platform lower LH 16-ft

1шт.

6

632964R91

BRACE W/TIE, platform lower LH 18-ft

1шт.

6

588233R91

BRACE W/TIE, platform lower RH 16-ft

1шт.

6

632965R91

BRACE W/TIE, platform lower RH 18-ft

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

7

571029R91

LIFT W/SPACER, platform

1шт.

8

573781R91

PLATFORM W/BACKSHEET AND BOTTOM 16-FT

1шт.

8

588178R91

PLATFORM W/BACKSHEET AND BOTTOM 18-FT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/4 BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

1/4 X 5/8 WAGON-BOX-HD RIVET

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1-1/4 X 11 GA WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

9

634579R1

PLATE

STIFFENER, platform divider runner LH

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

1/2 X 1-1/2 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

3шт.

1/2 LOCK WASHER

3шт.

10

654650R1

STRIPPER, auger, 16-ft and 18-ft

2шт.

11

654638R1

ANGLE, auger stripper, 16-ft

2шт.

11

654447R1

ANGLE, auger stripper LH, 18-ft

1шт.

11

654448R1

ANGLE, auger stripper RH, 18-ft

1шт.

3/8 X 3/4 CRG BOLT W/NUT, 8 used 16-ft, 12 used 18-ft

1шт.

3/8 X 1 CRG BOLT W/NUT

18шт.

1/2 X 1-1/4 CRG BOLT W/NUT, 5 used 16-ft, 7 used 18-ft

2шт.

1/2 X 1-1/4 HEX-HD MACH W/NUT

1шт.

12

571036R91

SHIELD W/SIDE, conveyor chain front side LH

1шт.

12

571039R91

SHIELD W/SIDE, conveyor chain front side RH

1шт.

3/8 X 1 CRG BOLT W/NUT

6шт.

1/4 NUT

8шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

2шт.

1/4 LOCK WASHER

8шт.

3/8 LOCK WASHER

6шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

2шт.

570812R1

15/32 X 3 X 16 GA WASHER

2шт.

13

569175R1

DOOR, feeder front shield

1шт.

14

569176R1

HINGE, feed front shield door

1шт.

15

568476R1

ROD

feeder shield door hinge

1шт.

16

564825R1

LINK, divider rod

2шт.

15/32 X 1 X 11 GA WASHER

4шт.

17

573059R1

BAR, cutter RH 16-ft

1шт.

17

583081R1

BAR, cutter RH 18-ft, 49 used 16-ft, 57 used 18-ft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

573780R91

SUPPORT W/ANCHOR, cutter bar 16-ft, Serial no. 804 and below

1шт.

18

939868R91

SUPPORT W/ANCHOR, cutter bar 16-ft, Serial no. 805 and above

1шт.

18

588177R91

SUPPORT W/ANCHOR, cutter bar 18-ft, Serial no. 804 and below

1шт.

18

939869R91

SUPPORT W/ANCHOR, cutter bar 18-ft, Serial no. 805 and above

1шт.

7/16 X 1 CRG BOLT W/NUT, 4 used 16-ft, 7 used 18-ft

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT, 4 used 16-ft, 7 used 18-ft

1шт.

7/16 MED LOCK WASHER, 8 used 16 ft, 14 used 18-ft

1шт.

1/2 X 3-3/4 HEX-HD MACH W/NUT

1шт.

1/2 MED LOCK WASHER

1шт.

28407K

WASHER

17/32 X 1-1/4 X 25 GA WASHER

1шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

19

573060R1

BAR, cutter LH 16-ft

1шт.

19

583080R1

BAR, cutter LH 18-ft

1шт.

20

568443R2

DEFLECTOR, platform end sheet RH, special for grain

1шт.

20

568444R2

DEFLECTOR, platform end sheet LH, special for grain

1шт.

1/4 NUT

8шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD SCREW

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

6шт.

1/4 LOCK WASHER

8шт.
