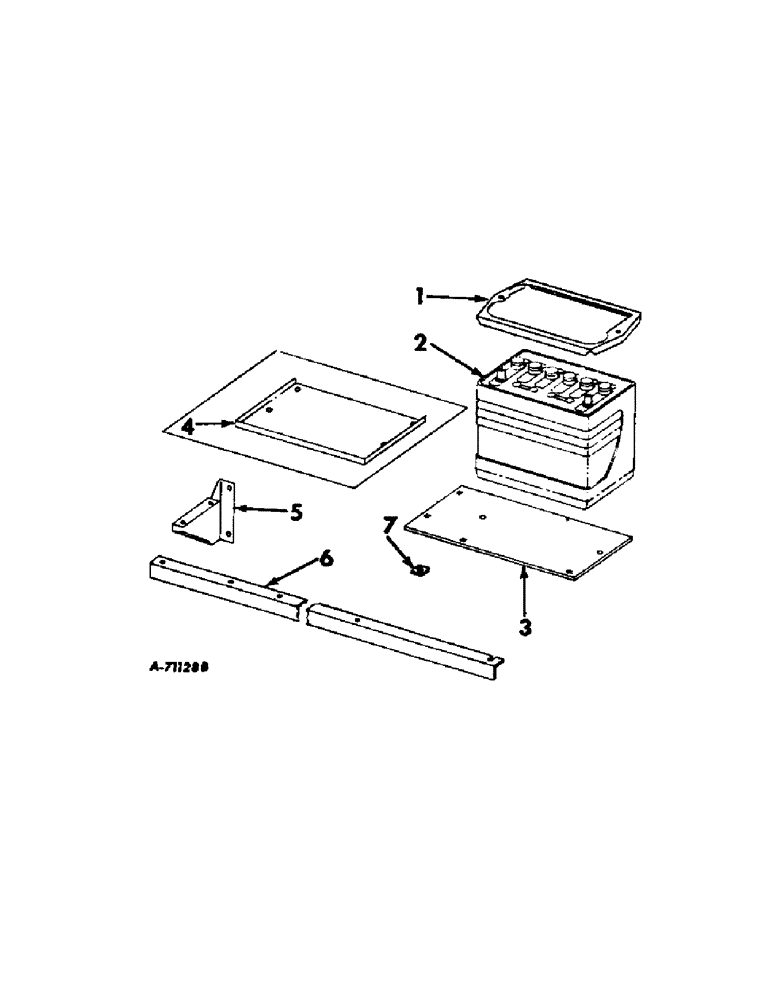

Запчасти Case IH 403 (256) - BATTERY AND COVER, C-282 ENGINE (55) - ELECTRICAL SYSTEMS

1

72924R1

CLAMP

battery hold-down

1шт.

18012R1

SCREW,Hex, 5/16" - 18 x 9 1/2"

5/16 X 9-1/2 MACH BOLT

2шт.

932736R1

PIN

5/16 WING NUT

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

2

395587R91

BATTERY, Prestolite 24H-A8Z 12 volt

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

155866C1

CARRIER, battery, For hydrostatic drive

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4 MACH BOLT

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

629625R1

BRACKET, battery support

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 MACH BOLT

2шт.

102635

NUT,3/8"-16, G5

2шт.

111640

1/4 X 3/4 SELF-TAPPING SCREW

2шт.

6

628593R1

SUPPORT, battery

1шт.

17427R1

7/16 X 1 MACH BOLT

1шт.

211500

BRACKET

7/16 NUT

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

7

NOT USED IN THIS APPLICATION

1шт.
