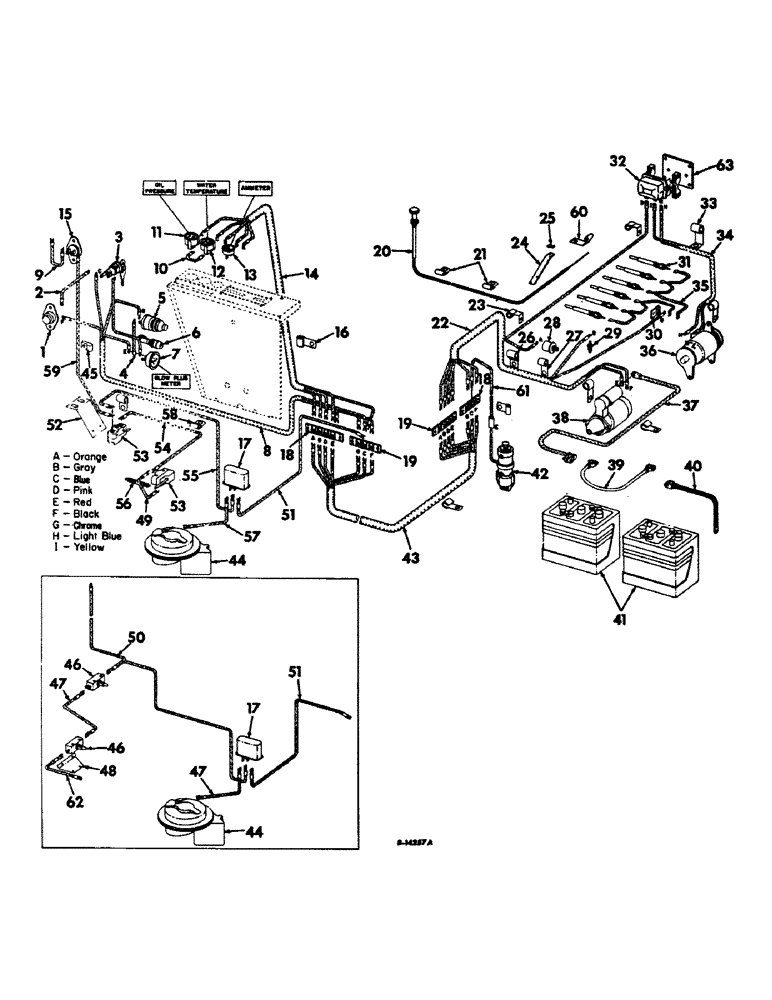

Запчасти Case IH 403 (250) - ELECTRICAL SYSTEM, WIRING DIAGRAM, COMBINE S/N 940 AND BELOW, D-301 ENGINE (55) - ELECTRICAL SYSTEMS

1

366317R92

IGNITION SWITCH

SWITCH ASSY, push button starting

1шт.

120611

NUT,#10 - 32

NO. 10-32NF SQ NUT

2шт.

100751

SCREW,Slotted Rd Hd, #8-32 x 1/2"

NO. 8 X 1/2 SLT-RD-HD SCREW

1шт.

132903

ADAPTER

NO. 10-32NF X 7/16 SLT-HD CD-PLTD SCREW

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

2

565553R91

CABLE ASSY, ignition switch to starter switch

1шт.

3

365522R91

IGNITION SWITCH

SWITCH ASSY, ignition, key type

1шт.

365502R1

NUT

switch mounting

1шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

4

588052R91

CABLE ASSY, glow plug meter to glow plug switch

1шт.

5

627670C1

IGNITION SWITCH

SWITCH ASSY, glow plug, less cap

1шт.

373612R1

CAP

glow plug switch, red

1шт.

6

936049R91

HOUSING ASSY, fuse, 30 amp.

1шт.

223-31

FUSE,10 Amp, Type 3AG

cartridge type AGC 30 amp

1шт.

103089

NO. 12 NUT

1шт.

100776

NO. 12 X 3/4 SLT-RD-HD MACH SCREW

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

1шт.

7

370380R92

METER

ASSY, glow plug

1шт.

8

632108R91

HARNESS ASSY, starter and starter switch

1шт.

9

654353R91

WIRE ASSY, horn, Serial Range: button-ground

1шт.

10

565553R91

CABLE ASSY, oil pressure gauge to water temperature gauge

1шт.

11

939263R91

GAUGE ASSY.

GUIDE ASSY, oil pressure

1шт.

12

629032R91

GAUGE

ASSY, water temperature, combine Serial no. 805 and below

1шт.

12

939262R91

GAUGE ASSY.

GAUGE ASSY, water temperature, combine Serial no. 806 and above

1шт.

13

269467R92

INDICATOR

GAUGE ASSY, charge indicator

1шт.

14

632107R91

HARNESS ASSY, instrument gauge cable

1шт.

15

366316R91

SWITCH

ASSY, warning horn push button

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, open

1шт.

17

241120R91

RELAY

ASSY, parking brake warning horn

1шт.

18

565481R91

BAR

BLOCK ASSY, four terminal

2шт.

103102

NO. 12 SQ NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

4шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

19

300559R91

BLOCK

ASSY, junction three terminal

2шт.

103102

NO. 12 SQ NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

3шт.

100781

NO. 12 X 1 SLT-RD-HD SCREW

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

20

558063R91

CABLE ASSY, fuel shut-off

1шт.

21

362127R1

CLIP

fuel shut-off cable

2шт.

22

380478R91

HARNESS ASSY, main cable

1шт.

23

370535R1

CLIP

cable harness, on push rod cover screw

2шт.

24

312588R11

BRACKET ASSY, engine shut-off wire

1шт.

25

275965R1

CLAMP

shut-off wire bracket

1шт.

26

358986R1

CABLE CLIP

CLIP, cable harness, on rear of cylinder head upper LH, tapped hole

1шт.

27

362123R1

CLIP

cable harness, on fuel filter bracket upper LH, mounting bolt

1шт.

28

665014R91

SENDER UNIT

UNIT ASSY, oil pressure sending

1шт.

29

665016R91

TEMPERATURE SENDER

UNIT ASSY, water temperature

1шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 X 3/8 REDUCING PIPE BUSHING

1шт.

30

BLOCK, junction, Refer to eng-5 parts catalog

1шт.

31

PLUG, glow, Optional with 343894R1, Refer to eng-5 parts catalog

1шт.

32

1119270E

REGULATOR ASSY, voltage, For components see list of parts under details of voltage regulator, alos order plate, 393454R1 and attaching hardware

1шт.

33

370383R1

CLIP

cable harness, on RH water outlet housing mounting bolt

1шт.

34

380479R91

HARNESS ASSY, generator cable

1шт.

35

HARNESS ASSY, glow plug cable, Refer to eng-5 parts catalog

2шт.

36

1100425

GENERATOR

ASSY, For components see list of parts under details of generator

1шт.

37

632106R91

CABLE

ASSY, battery to starting motor

1шт.

38

1113193

MOTOR HOUSING

MOTOR ASSY, cranking, For components see list of parts under details of cranking motor

1шт.

39

279171R91

CABLE ASSY, Serial Range: battery-battery

1шт.

40

629029R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

61252H

WASHER

15/32 x 3/4 x 11 ga.

1шт.

41

370424R91

BATTERY, prestolite H2-135, 6 volt

2шт.

42

PUMP ASSY, fuel, See list of parts under details of fuel pump

1шт.

43

632109R91

HARNESS ASSY, cable

1шт.

44

166166R91

HORN

ASSY, parking brake warning

1шт.

45

140582

CLAMP

CLIP, closed

8шт.

45

589980R2

CLIP

closed

1шт.

45

140571

CLIP

cable

1шт.

109084

NUT,1/4"-20, G5

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

633643R91

SWITCH

ASSY, warning horn, combine Serial no. 640 & below

2шт.

47

654349R91

CABLE ASSY, relay to horn, 2nd switch to switch, Order package 936719R91

2шт.

48

632916R1

BRACKET, warning horn to switch mounting, Order package 936719R91

1шт.

49

654353R91

CABLE ASSY, micro switch to ground, combine Serial no. 641 and above

1шт.

50

654348R91

CABLE ASSY, relay to switch, Order package 936719R91

1шт.

51

654350R91

WIRE ASSY, Serial Range: ignition-relay

1шт.

52

936695R1

BRACKET, parking brake warning horn switch

1шт.

14986R1

BOLT, 5/16-18 x 1/2 crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

936694R91

SWITCH

ASSY, warning horn

2шт.

132719

NO. 6-32 X 1 CD-PLTD SLT-RD-HD MACH SCREW

4шт.

134530

NUT,Hex, #6 - 32

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

54

936697R91

CABLE ASSY, micro switch to micro switch

1шт.

56

495525R1

SPRING

micro switch actuating

1шт.

57

936940R91

CABLE ASSY, Serial Range: relay-horn

1шт.

58

362127R1

CLIP

relay to switch cable

2шт.

59

936696R91

CABLE ASSY, micro switch to horn button

1шт.

60

365584R1

CLIP

water temperature sending unit, on center and rear valve outer bolt

2шт.

61

632095R91

CABLE ASSY, fuel pump to junction block

1шт.

62

654351R91

CABLE ASSY, micro switch to ground, combine Serial no. 640 & below

1шт.

63

393454R1

PLATE, voltage regulator mounting

1шт.

109084

NUT,1/4"-20, G5

4шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

936719R91

PACKAGE ASSY, parking brake warning horn, Consists of

1шт.

936694R91

SWITCH

ASSY, warning horn

2шт.

134450

NUT, 6-32 C-Z hex.

4шт.

132719

SCREW, 6-32 x 1 C-Z slt-rd-hd mach

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

495525R1

SPRING

warning horn switch

1шт.

936695T1

BRACKET, warning horn switch mounting

1шт.

14986R1

5/16 X 1/2 CRG BOLT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

936698R91

CABLE ASSY, Serial Range: relay-switch

1шт.

362127R1

CLIP

relay to switch cable

1шт.

936697R91

CABLE ASSY, micro switch to micro switch

1шт.

654353R91

CABLE ASSY, micro switch to ground

1шт.

936696R91

CABLE ASSY, micro switch to horn button

1шт.
