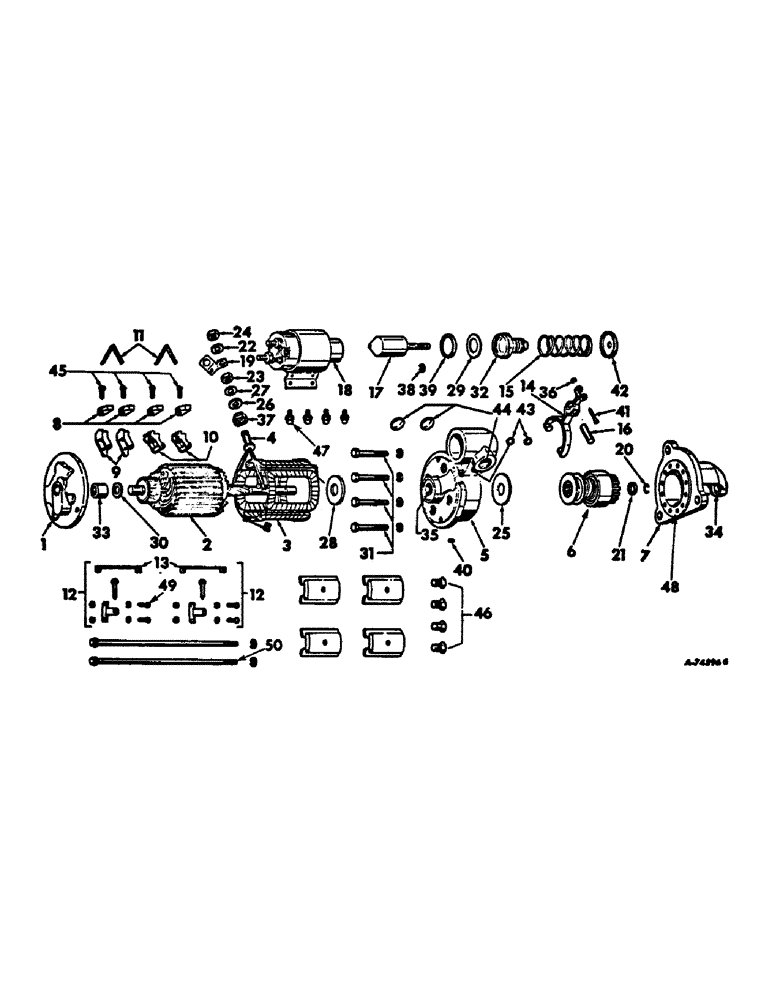

Запчасти Case IH 403 (242) - CRANKING MOTOR, DELCO REMY, D-301 ENGINE (55) - ELECTRICAL SYSTEMS

1113193

MOTOR HOUSING

MOTOR ASSY, cranking, 393771R91, 12 volt

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/5-16 x 1-1/8 C-Z hex-hd cap

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120381

WASHER

3/8 C-Z lt lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1945617

HOLDER

FRAME W/BUSHING, 1872678 plug, 810819 & wick, 1916439 commutator end

1шт.

2

1967042

SPOOL

ARMATURE

1шт.

3

1959350

COIL ASSY, field, 4 coils

1шт.

1914873

INSULATOR

INSULATION, field coil

2шт.

4

1933879

TERMINAL CONNECTOR

terminal

1шт.

5

1942241

HOUSING

ASSY, lever, Composed of

1шт.

1933999

BUSHING

1шт.

9411375

PLUG

2шт.

1942957

PLUG

1шт.

1947350

WICK

1шт.

6

1941157

MOTOR HOUSING

MOTOR ASSY, drive

1шт.

7

1947803

HOUSING

W/BUSHING, 1955994 plug, 453465 & wick, 1916439, drive

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

4шт.

12

1945923

PACKAGE

brush support

1шт.

13

1930694

CABLE

LEAD, ground

1шт.

14

1942245

LEVER

shift

1шт.

15

1942260

SPRING

lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock

1шт.

23

805258

NUT

terminal stud, 5/32 in. thick

1шт.

24

120377

NUT,3/8" - 16, Gr 5

Terminal stud outer 3/8"-16, G5

1шт.

25

821453

WASHER

brake, between lever housing & motor drive

1шт.

26

1950029

WASHER

insulating terminal stud

1шт.

27

805790

WASHER

terminal stud plain

1шт.

28

1942283

PIN

space, between lever housing & armature

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

1914842

WASHER

commutator end space

1шт.

31

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

drive housing attaching

4шт.

32

1942257

BOOT

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING, spring retainer snap

1шт.

39

1942256

RETAINER

spring 1-13/64 in. hole

1шт.

40

809593

PIN

drive housing dowel

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

810819

PLUG

1/2 diameter lever housing

2шт.

44

9411375

PLUG

1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

brush attaching

4шт.

46

1913100

SCREW

pole shoe

4шт.

47

NOT USED IN THIS APPLICATION

1шт.

48

NOT USED IN THIS APPLICATION

1шт.

49

NOT USED IN THIS APPLICATION

1шт.

50

809763

BOLT

thru

2шт.
