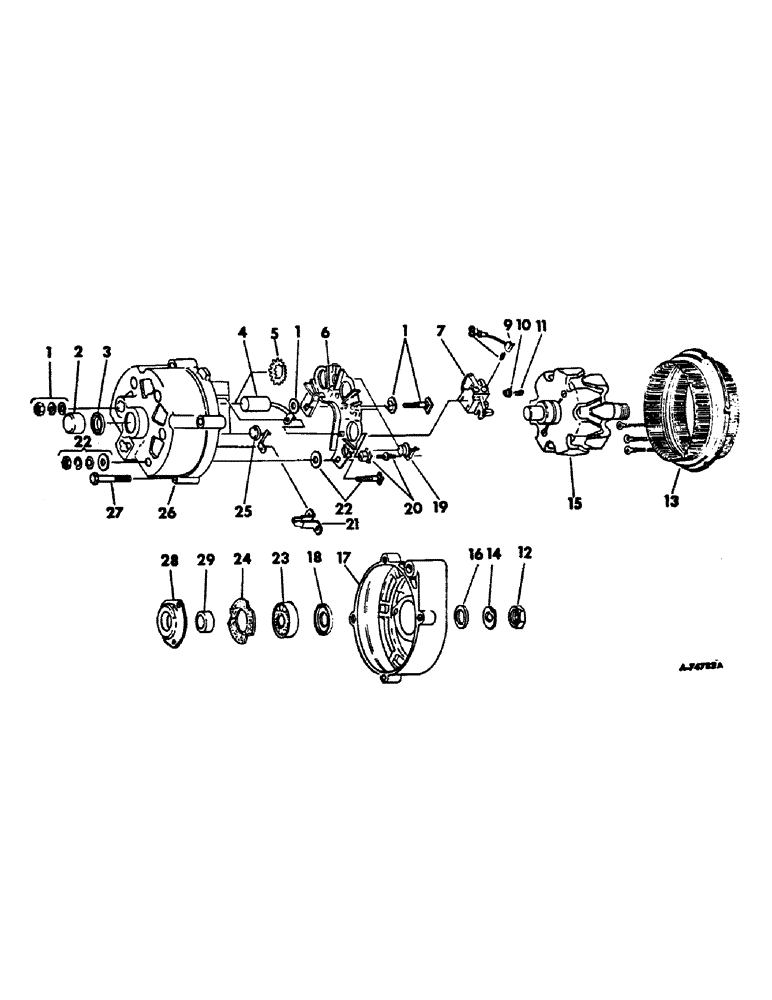

Запчасти Case IH 403 (238) - ALTERNATOR GENERATOR, DELCO REMY, COMBINE S/N 941 AND ABOVE (55) - ELECTRICAL SYSTEMS

1100750

ALTERNATOR GENERATOR ASSY, 393820R91, Consists of all unmarked parts plus those marked unit A

1шт.

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, Consists of all unmarked parts plus those marked unit B

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL W/NUTS & WASHERS, ground

1шт.

2

423649R91

BEARING, slip ring end roller, will work for 7451326 and 968838R91

1шт.

3

1959790

SEAL

RETAINER W/FELT, slip ring end, Unit A

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end, Unit B

1шт.

4

1959455

CAPACITOR

1шт.

1959523

WASHER, capacitor screw insulator

1шт.

5

1959390

SPRING

condenser retaining, Unit A

1шт.

5

1960750

VALVE SPRING

SPRING, condenser retaining, Unit B

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

ASSY, brush and spring

1шт.

8

NOT SERVICED SEPARATELY, Order holder assy, 1964682

1шт.

9

NOT SERVICED SEPARATELY, Order holder assy, 1964682

1шт.

10

1959389

INSULATOR

capacitor terminal screw

1шт.

11

1957501

SCREW

brush holder attaching

2шт.

12

1911324

NUT

drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY, Unit A

1шт.

13

1959531

STATOR

ASSY, Unit B

1шт.

14

1941978

WASHER

drive end shaft

1шт.

15

1958565

ROTOR

ASSY

1шт.

16

1959991

COLLAR

drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

1947344

SLINGER

drive end grease, Unit A

1шт.

19

1959829

DIODE

positive, Unit A

3шт.

19

1964353

DIODE

positive, Unit B

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

954378

BALL BEARING

BEARING, drive end ball, Unit A

1шт.

23

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

drive end ball, Unit B, will work for 904571 and 443919R91

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1959830

SET

DIODE, negative, Unit A

3шт.

25

1964354

DIODE

negative, Unit B

3шт.

26

1959827

FUNNEL

FRAME W/NEGATIVE DIODE, bearing, retainer & condenser, Unit A

1шт.

26

1969329

FUNNEL

FRAME W/NEGATIVE DIODE, bearing, retainer & condenser, Unit B

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

1956104

SCREW, attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.
