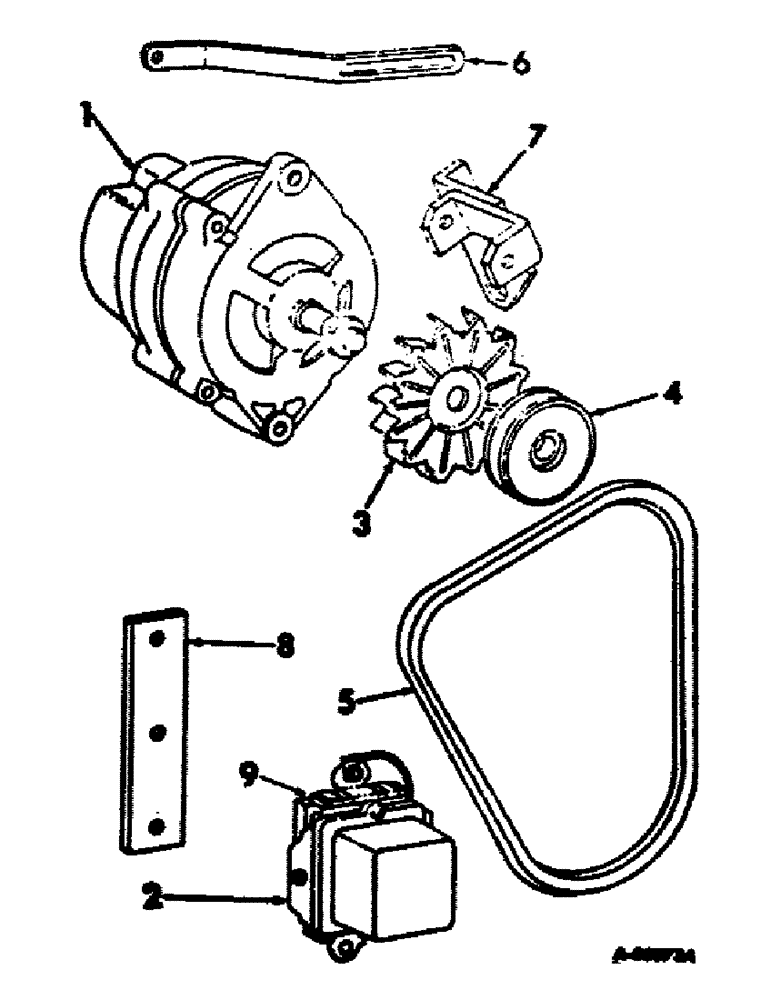

Запчасти Case IH 403 (237) - ALTERNATOR GENERATOR, VOLTAGE REGULATOR AND CONNECTIONS, D-301 ENGINE (55) - ELECTRICAL SYSTEMS

1

1100750

ALTERNATOR GENERATOR ASSY, 393820R91, Order 1100791, alternator generator assy, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

102635

NUT,3/8"-16, G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

2

65303C1

REGULATOR

voltage, Automotive Controls Corp, will work for 1119513, Optional w/1119507

1шт.

2

1119507

GOVERNOR

REGULATOR, voltage, Delco Remy, will work for 1119513, Optional w/65303C1

1шт.

3

1940994

FAN

alternator-generator

1шт.

4

1961291

PULLEY

alternator-generator

1шт.

5

394013R1

V-BELT,0.50" W x 53.00" L

Alternator & water pump 0.50" W x 53.00" L

1шт.

6

BRACE, alternator-generator, Refer to Eng-5 parts catalog, Refer to Eng-5 parts catalog

1шт.

7

BRACKET ASSY, alternator generator mounting, Refer to Eng-5 parts catalog

1шт.

8

393841R1

BRACKET, voltage regulator mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

173127

WASHER, 5/16 int-ext tooth lock Ext-Int Tooth, 5/16"

1шт.

9

65304C1

PACKAGE

BRACKET ASSY, shock mount, For 65303C1 regulator

1шт.

9

1962629

BRACKET

ASSY, shock mount, For 1119507 regulator

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.
