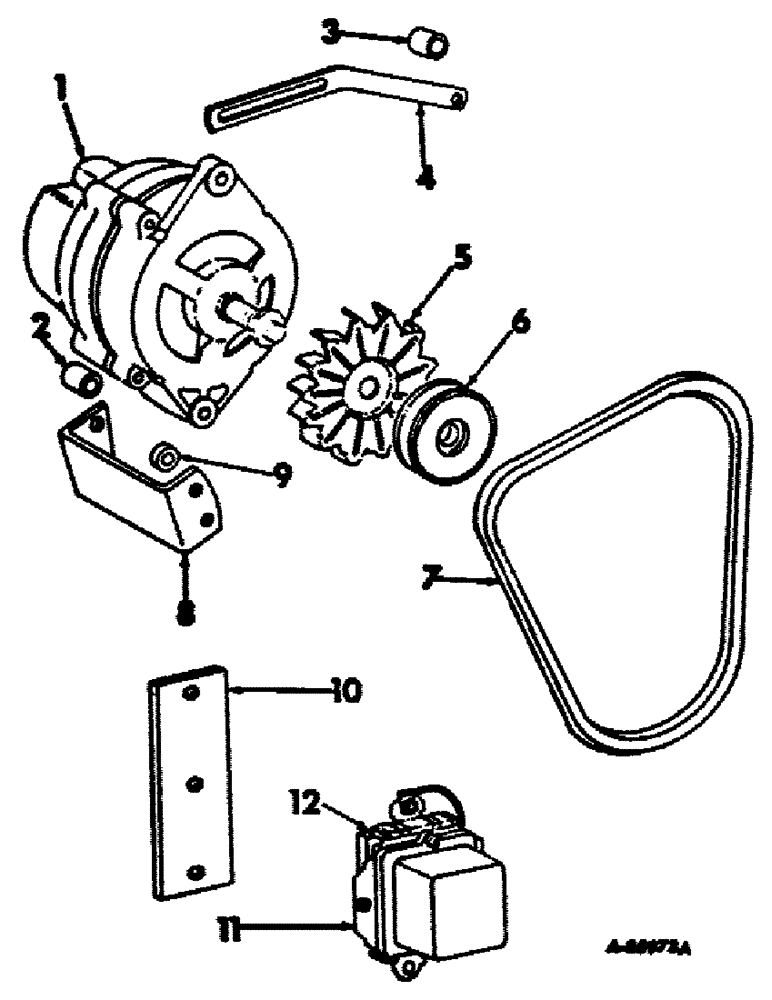

Запчасти Case IH 403 (236) - ALTERNATOR GENERATOR, VOLTAGE REGULATOR AND CONNECTIONS, C0282 ENGINE (55) - ELECTRICAL SYSTEMS

1

1100750

ALTERNATOR GENERATOR ASSY, 393820R91, Order 1100791, alternator generator assy, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 hex-hd cap

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 C-Z hex-hd cap

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

1шт.

2

384993R1

SPACER

alternator generator mounting bracket, long

1шт.

3

SPACER, alternator generator brace, Refer to Eng-2 parts catalog

1шт.

4

BRACE, alternator generator, Refer to Eng-2 parts catalog

1шт.

5

1940994

FAN

alternator generator

1шт.

6

1961291

PULLEY

alternator generator

1шт.

7

403617R1

V-BELT,0.50" W

Alternator and water pump, will work for 394013R1 0.50" W

1шт.

8

BRACKET, alternator generator mounting refer to Eng-2 parts catalog

1шт.

9

384992R1

SPACER

alternator generator mounting bracket, short

1шт.

10

393841R1

BRACKET, voltage regulator mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

173127

WASHER, 5/16 int-ext tooth lock Ext-Int Tooth, 5/16"

1шт.

11

65303C1

REGULATOR

voltage, automotive controls corp, will work for 1119513, Optional w/1119507

1шт.

11

1119507

GOVERNOR

REGULATOR, voltage, Delco-Remy, will work for 1119513, Optional w/65303C1

1шт.

12

65304C1

PACKAGE

BRACKET ASSY, shock mount, For 65303C1 regulator

1шт.

12

1962629

BRACKET

ASSY, shock mount, For 1119507 regulator

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.
