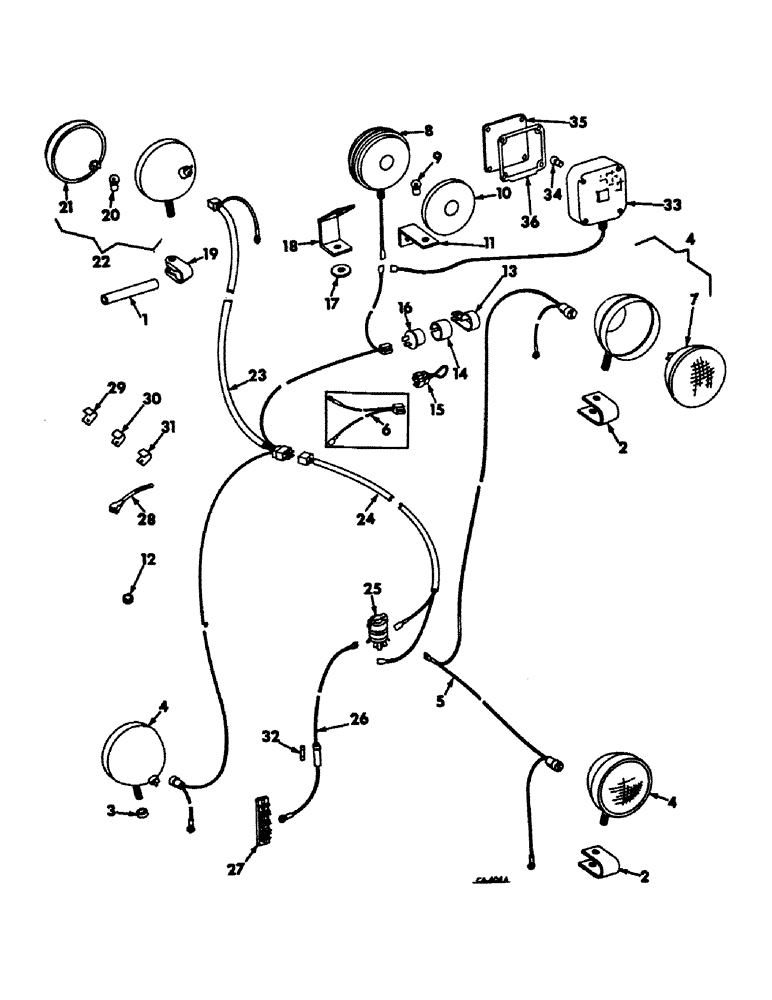

Запчасти Case IH 403 (194) - LIGHTING PARTS, S/N 1323 AND ABOVE (55) - ELECTRICAL SYSTEMS

1

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, light pivot

1шт.

18790R1

BOLT

3/8 x 5-1/2 C-Z med lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

2

561916R1

CLAMP, head light

2шт.

3

49069D

SPACER

head light

1шт.

4

376849R91

HEADLIGHT

LIGHT ASSY, 12 volt, Includes ref. no. 7

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

5

155926C92

WIRE ASSY, head light front

1шт.

6

155146R91

CABLE ASSY, flasher light, Serial no. 1322 and below

1шт.

7

373662R91

LAMP

UNIT ASSY, head light sealed beam

3шт.

8

394129R91

LIGHT

ASSY, flasher, Includes ref. nos. 9 and 10

1шт.

120371

NUT,1/2"-20, G5

1шт.

9

9417866

BULB,C6, #1156, 12.8V

LAMP, no. 1/56-12 volt

1шт.

10

396585R1

LENS

warning light amber

1шт.

10

397442R1

LENS, warning light red

1шт.

11

158747C1

ANGLE, flasher light bracket

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

plain no. 5 diagonal cut

1шт.

13

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

14

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

15

394473R91

CABLE ASSY, flasher light jumper

1шт.

16

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

17

394262R1

WASHER

flasher light

1шт.

18

561915R1

BRACKET

grain tank light

1шт.

19

350920R1

CLAMP

tail light

1шт.

20

455490

BULB,C-6, #1003, 12V, .94W

BUlT, tail light

1шт.

21

371461R91

LENS

UNIT, rear light sealed beam

1шт.

22

377102R91

NO LONGER SERVICED

LIGHT ASSY, rear lamp and tail, Includes ref. nos. 20 and 21

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

161142C91

HARNESS ASSY, lights rear cable

1шт.

24

161141C91

HARNESS ASSY, lights front cable

1шт.

25

376851R92

SWITCH

ASSY, light

1шт.

26

161140C91

WIRE ASSY, primary

1шт.

27

565481R91

BAR

BLOCK ASSY, junction

1шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

SCREW, no. 12 x 3/4 slt-rd-hd mach

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

28

702093C1

CABLE TIE

CLAMP, light cable

18шт.

29

362127R1

CLIP

light rear cable

7шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP

1шт.

31

362667R1

CLIP

light rear cable

1шт.

32

432644

FUSE,20 Amp, Type SFE

20 amp 1-1/4 long

1шт.

33

537328R91

LIGHT

ASSY, flasher, Includes ref nos. 34, 35 and 36

1шт.

120371

NUT,1/2"-20, G5

1шт.

34

9417866

BULB,C6, #1156, 12.8V

LAMP, no. 1156 12-volt

1шт.

35

537011R1

LENS

red

1шт.

35

537012R1

LENS

amber

1шт.

36

537010R1

GASKET

2шт.

159578

SCREW, no. 8-32 x 5/16 cr-rec-pan-hd mach.

8шт.
