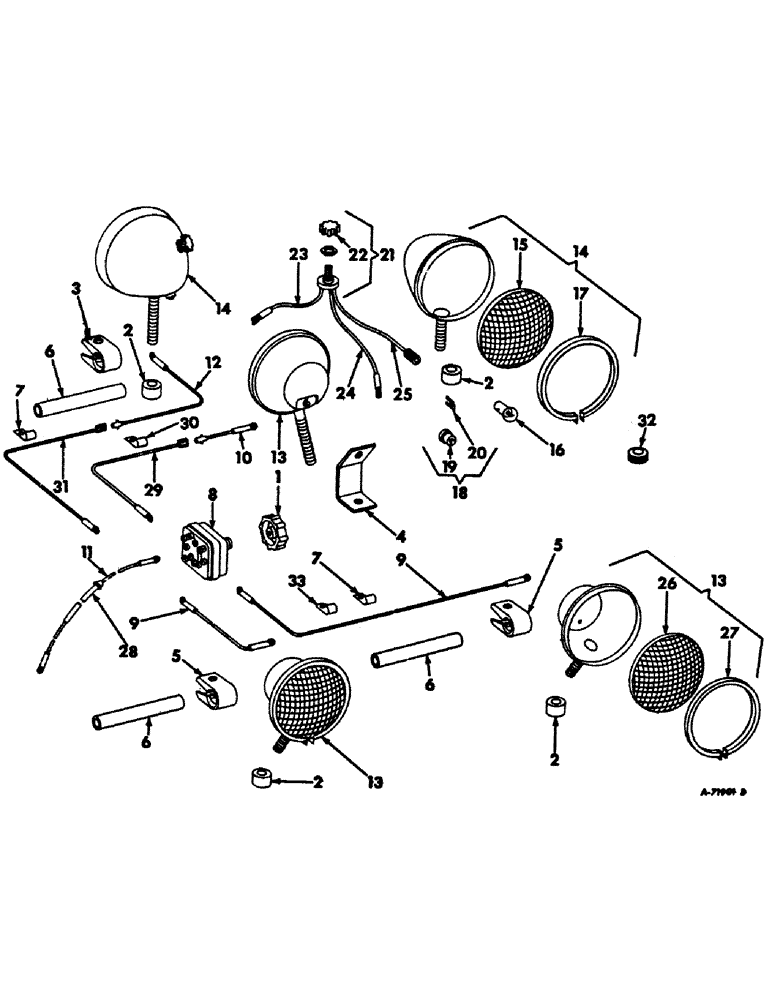

Запчасти Case IH 403 (192) - LIGHTING PARTS, STANDARD S/N 1090 TO 1322 ATT. S/N 1089 AND BELOW (55) - ELECTRICAL SYSTEMS

1

57313D

KNOB, light switch

1шт.

122159

HOUSING

NO. 8 x 1/4 slt-rd-hd screw

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

2

49069D

SPACER

head light

4шт.

3

350920R1

CLAMP

tail light

1шт.

4

561915R1

BRACKET

grain tank light, grain tank

1шт.

5/16 X 1 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

5

561916R1

CLAMP, headlight

2шт.

6

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, tail light pivot

1шт.

3/8 X 5-1/2 C-Z MACH BOLT

1шт.

3/8 C-Z LOCK WASHER

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

2шт.

7

362127R1

CLIP

cable

1шт.

57312D

11/16 NUT

1шт.

141706

WASHER

11/16 INTERNAL TOOTH LOCK WASHER

1шт.

8

355698R91

SWITCH

light

1шт.

57312D

11/16 NUT

1шт.

141706

WASHER

11/16 INTERNAL TOOTH LOCK WASHER

1шт.

9

358583R91

WIRE, head light front

2шт.

10

561995R91

WIRE, grain tank light, grain tank, Serial no. 1089 and below

1шт.

10

159480C91

CABLE ASSY, grain hopper light to connection, Serial no. 1090 and above

1шт.

11

936577R91

WIRE, primary, Serial no. 940 and below

1шт.

11

633219R91

WIRE ASSY, primary, Serial no. 941 and above

1шт.

12

561999R91

WIRE, tail light, Serial no. 1089 and below

1шт.

12

159482C91

CABLE ASSY, tail light to connection, Serial no. 1090 and above

1шт.

13

373573R91

LAMP

LIGHT ASSY, 12 volt

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

373306R91

LIGHT

ASSY, rear lamp and tail

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

371461R91

LENS

UNIT, rear light sealed beam

1шт.

16

455490

BULB,C-6, #1003, 12V, .94W

1шт.

17

371450R91

BEZEL

MOLDING ASSY, rear light, Dietz

1шт.

132489

NO. 8 X 1-1/4 FIL-HD-SLT SCREW

1шт.

365697R1

NO. 8 NUT

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

17

371451R91

MOLDING

ASSY, rear light, guide lamp

1шт.

53526D

SCREW

molding

1шт.

18

365664R91

ELEC CONNECTOR

CLIP ASSY, terminal block and spring, Dietz

1шт.

18

68417D

INSULATOR

PACKAGE, terminal plate, Includes ref nos 19 and 20, guide lamp

1шт.

19

79407H

PLATE

terminal, guide lamp

1шт.

20

79408H

SPRING, terminal retaining, guide lamp

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

NO. 8 X 5/16 SLT-RD-HD SCREW

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

21

373308R91

LIGHT SWITCH

SWITCH ASSY, rear lamp, Dietz, Includes ref no. 22

1шт.

21

375653R91

SWITCH

ASSY, rear lamp, guide lamp, Includes ref no. 22

1шт.

22

373309R1

KNOB

switch, Dietz

1шт.

22

359773R91

KNOB, switch, guide lamp

1шт.

23

373310R91

WIRE ASSY, tail light socket to switch, Dietz

1шт.

23

375654R91

WIRE ASSY, tail light socket to switch, guide lamp

1шт.

24

373311R91

WIRE ASSY, switch to terminal block, Dietz

1шт.

24

375655R91

WIRE ASSY, switch to terminal plate, guide lamp

1шт.

25

373311R91

WIRE ASSY, switch to sealed beam unit, Dietz

1шт.

25

375656R91

WIRE ASSY, switch to sealed beam unti, guide lamp

1шт.

26

373662R91

LAMP

UNIT ASSY, headlight sealed beam

1шт.

27

371450R91

BEZEL

MOLDING ASSY, headlight, Dietz

1шт.

132489

NO. 8 X 1-1/2 FIL-HD-SLT SCREW

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

27

371451R91

MOLDING

ASSY, headlight, guide lamp

1шт.

53526D

SCREW

molding

1шт.

28

432644

FUSE,20 Amp, Type SFE

20 amp 1-1/4 in. long

1шт.

29

159479C91

CABLE ASSY, light switch to grain hopper connection, Serial no. 1090 and above

1шт.

30

362667R1

CLIP

grain hopper light cable

1шт.

31

159481C91

CABLE ASSY, light switch to tail light connection, Serial no. 1090 and above

1шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

plain no. 5 diagonal cut, Used in steering column

1шт.

33

702093C1

CABLE TIE

CLAMP, light cable

9шт.
