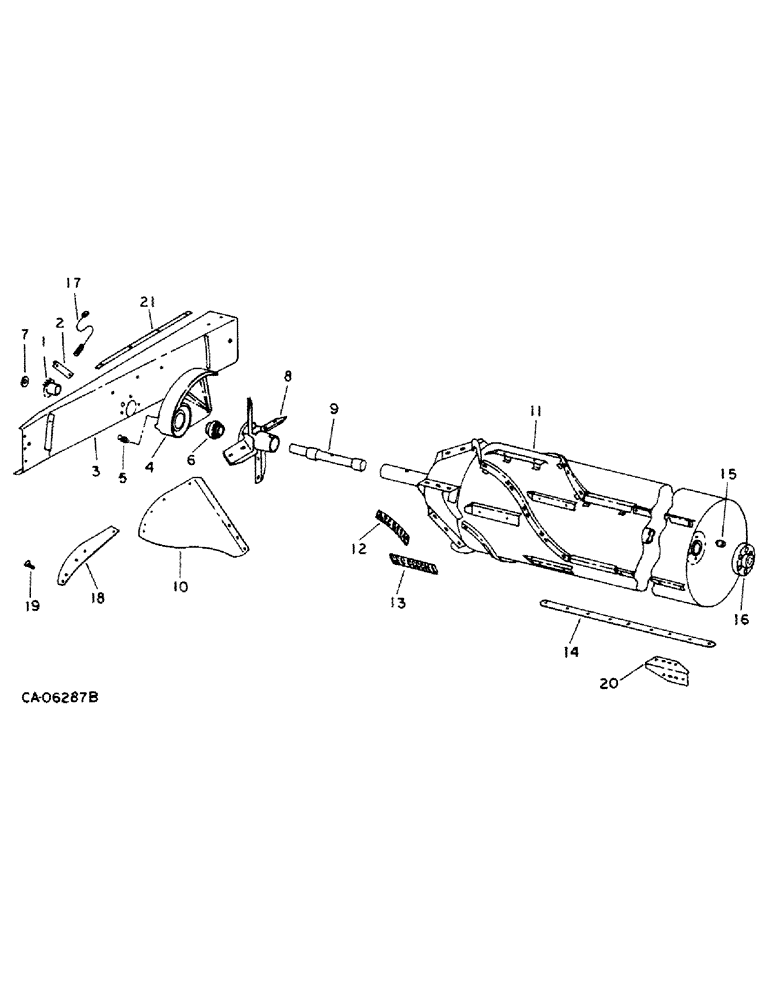

Запчасти Case IH 1482 (21-01) - THRESHING ROTOR AND CONCAVES, ROTOR (14) - THRESHING

1

198527C1

ROTOR

multi-position tachometer rotor speed magnetic pickup

1шт.

2

193221C1

SUPPORT

rotor tachometer magnetic, Serial Range: -5500

1шт.

2

1301239C1

BRACKET

rotor, Start Serial: 5501

1шт.

3

193384C3

SUPPORT

ASSY, front bearing

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

4

1309076C1

BEARING HOUSING

rotor front bearing, Replaces 192956C1

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER, front bearing housing

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

rotor front shaft

1шт.

8

188371C3

TURBINE

IMPELLER, rotor front

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

22109R1

HEADED PIN

PIN, 3/4 x 4.500 hd type 5

1шт.

9

191545C1

SHAFT

ROD, rotor front

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 type 1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

1шт.

10

1957447C1

PACKAGE

BLADE KIT, rotor, Replaces 1309120C1

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

9412230

LOCK NUT

1/2 phc prevailing torque

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 type 8

1шт.

11

181954C96

ROTOR

ASSY, threshing, Includes: Ref. 8 - 10, 12 - 16, 18 and 19

1шт.

12

1308830C1

BAR

helical rasp, 120 deg, Replaces package 1309119C1

16шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

13

1308668C1

RASP BAR

BAR, straight rasp, Replaces package 1309129C1

12шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc P/T lock type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

14

1303038C2

BAR

rotor rear straight, Replaces package 180708C4

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

15

180703C1

PACKAGE,SERVICE

INSULATOR, rotor drive hub, Package of 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

.531 x 1.500 x .12 hardened

1шт.

16

185166C91

HUB

COUPLING ASSY, rotor drive, Includes: Ref. 15

1шт.

17

187855C1

ELECTRICAL GAUGE

CAGE, reluctance pickup, Serial Range: -5500

1шт.

145507

NUT,Stamped, 7/8"-14

7/8 NF c-z stamped

1шт.

17

1301241C1

SENSOR

CONNECTOR, reluctance pickup, Start Serial: 5501

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 c-z stamped

1шт.

18

183264C2

RASP BAR

BAR, wear reinforcing, Replaces package 183343C1

4шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t type 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

19

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

SCREW, wear reinforcing bar

1шт.

20

183335C3

SUPPORT

BAR, rotor rear extension, Replaces package 180953C92, For straw chopper

4шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

1шт.

21

1308967C1

BAR

rotor front door hold down

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

1324031C1

PACKAGE

grain rotor separator angle bar support, Consists of:

1шт.

SUPPORT, rear bar (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.

1324208C1

SHIM KIT

PACKAGE, rotor rasp shim, Replaces 1319543C1, Consists of:

1шт.

SHIM .010 (NSS)

28шт.

SHIM .030 (NSS)

28шт.

SHIM .053 (NSS)

28шт.

SHIM .093 (NSS)

28шт.

INSTRUCTIONS (NSS)

1шт.

SB 21-87 for info on Shimmed Rotor Assys for hard to thrash grains

1шт.

SB 86-87 Impeller Blade Pkg 1957445C1

1шт.
