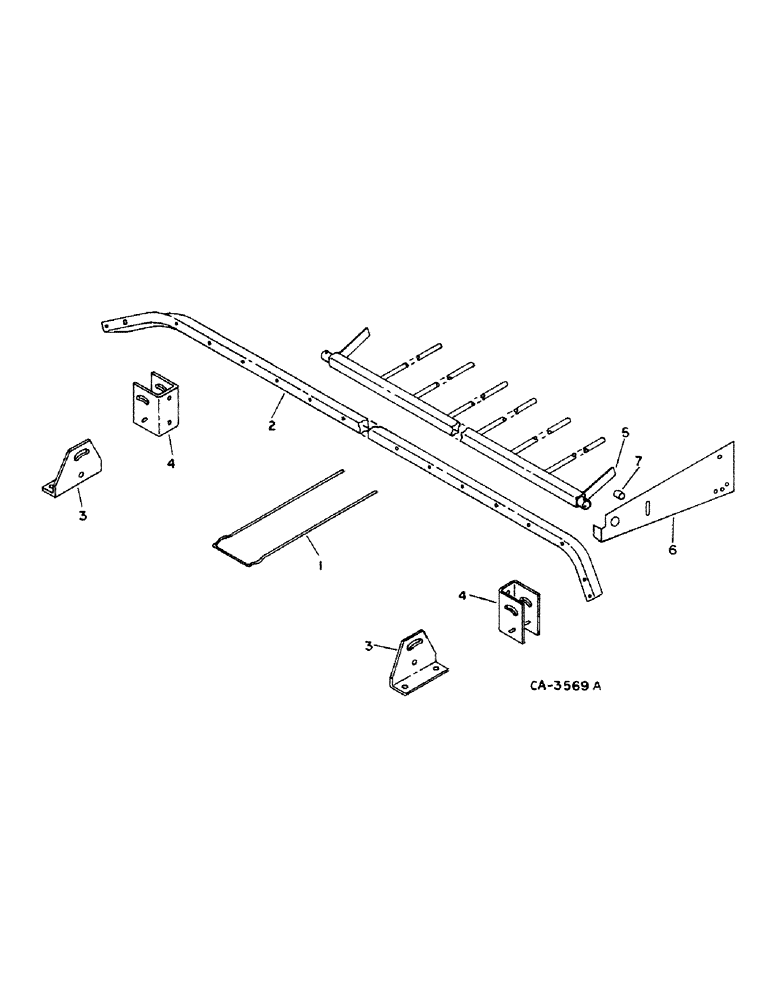

Запчасти Case IH 1482 (33-32) - FEEDER, WIND DEFLECTOR (13) - FEEDER

1

176972C2

FINGER

11 for 110 in., 2794.0 mm, 13 for 132 in., 3352.8 mm

1шт.

2

176973C1

TUBE,110" Length

deflector, For 110 in., 2794.0 mm

1шт.

2

176974C1

TUBE

deflector, For 132 in., 3352.8 mm

1шт.

3

176975C1

BRACKET

deflector tube support

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

4

176976C2

SUPPORT TUBE

SUPPORT, deflector tube adjustment

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 hd type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

5

181888C1

GUARD

DEFLECTOR ASSY, For 110 in., 2794.0 mm

1шт.

5

181887C1

GUARD

DEFLECTOR ASSY, For 132 in., 3352.8 mm

1шт.

137263

STRIP

3/16" x 2"

1шт.

20802R1

WASHER

1.28 x 2.50 x .12

1шт.

6

181885C1

SUPPORT

deflector LH

1шт.

6

181886C1

SUPPORT

deflector RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

7

586329R1

SPACER,3/4" Tube x 13/16"

.750 x .812

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.
