Запчасти Case IH 1482 (33-29) - FEEDER, WINDROW PICKUP, BASIC (13) - FEEDER

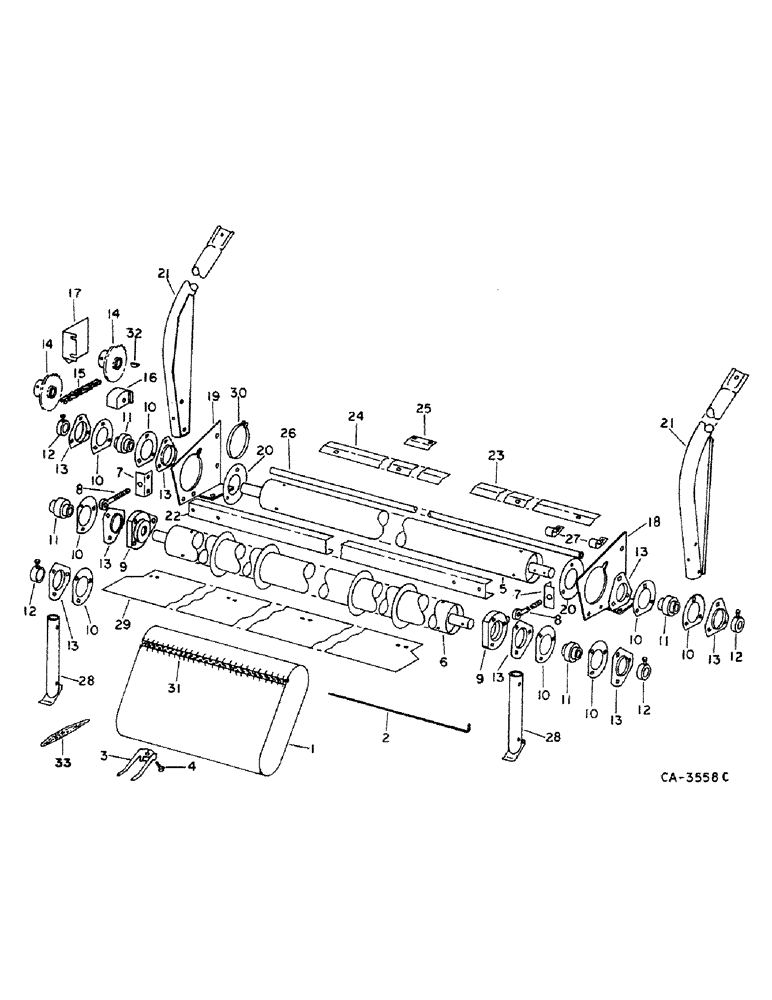

Схема запчастей Case IH 1482 - (33-29) - FEEDER, WINDROW PICKUP, BASIC (13) - FEEDER
28
21
12
7
9
11
10
29
8
9
13
10
13
20
7
10
8
11
19
3
33
2
30
28
20
10
13
13
10
11
1
26
27
12
13
17
10
10
12
31
10
14
6
22
14
21
15
13
13
5
18
11
32
13
24
25
23
12
4
16

Артикул

Название

Примечание

Количество

1

185527C93

CONVEYOR BELT

w/56 teeth, Includes Ref. 2 - 4, 5 for 110 in, 2794.0 mm; 6 for 132 in, 3352.8 mm

1шт.

2

176887C2

ELECTRICAL WIRE

WIRE, belt lacing, 5 for 110 in., 2794.0 mm, 6 for 132 in., 3352.8 mm

1шт.

3

176888C1

TOOTH

pickup, 280 for 110 in, 2794.0 mm, 336 for 132 in., 3352.8 mm

1шт.

4

176889C1

BOLT,Elevator, Flat Hd, 1/4" - 20 x 19.05mm

tooth, 280 for 110 in., 2794.0 mm, 336 for 132 in., 3352.8 mm

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

5

1313183C1

ROLLER ASSY.

ROLLER ASSY, upper belt, For 110 in., 2794.0 mm

1шт.

5

1313185C1

ROLLER ASSY.

ROLLER ASSY, upper belt, For 132 in., 3352.8 mm

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

21716R1

WASHER

1.156 x 1.750 x .054

1шт.

6

1313184C1

ROLLER

ASSY, lower belt, For 110 in., 2794.0 mm

1шт.

6

1313186C1

ROLLER ASSY.

ROLLER ASSY, lower belt, For 132 in., 3352.8 mm

1шт.

7

935379R1

BRACKET

ANGLE, lower roller tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

1326456C1

BOLT,5/8" - 11 x 140mm

BOLT, lower roller tightener, Replaces 935380R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

9

176900C2

RETAINER

lower roller

2шт.

10

176935C1

SHIM

bearing

8шт.

11

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

ball

4шт.

12

557115R11

COLLAR

COLLAR W/ SET SCREW, bearing locking

4шт.

13

571425R1

FLANGED BEARING

bearing

8шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 plow type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

176901C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 17T

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2.250 hd type 1

1шт.

15

CHAIN ASSY, lower roller drive, Use 89 links from 10 ft roll marked 1791D, 2 connecting links 1310D, 1 offset link 1315D and 1 roller link 1309D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

2шт.

16

575874R1

BLOCK

chain tightener

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 crg type 1

1шт.

161946C1

NUT

5/16 flange lock

1шт.

17

176936C1

GUARD

SHIELD, lower roller drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

18

197594C1

SUPPORT

ASSY, LH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

19

197595C1

SUPPORT

ASSY, RH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

20

176908C1

RETAINER

support pivot

2шт.

21

179394C2

PIPE

ASSY, support LH

1шт.

21

179395C2

PIPE

ASSY, support RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

176927C1

CHANNEL

cross tie, For 110 in., 2794.0 mm

1шт.

22

176928C1

CHANNEL

cross tie, For 132 in., 3352.8 mm

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

23

177721C1

SUPPORT

seal LH, For 110 in., 2794.0 mm

1шт.

23

177709C1

SUPPORT

seal LH, For 132 in., 3352.8 mm

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

24

177722C1

SUPPORT

seal RH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

25

177711C1

CLIP

backup seal, 4 for 110 in., 2794.0 mm, 5 for 132 in., 3352.8 mm

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

176933C1

STRIPPER

finger, For 110 in., 2794.0 mm

1шт.

26

176934C1

STRIPPER

finger, For 132 in., 3352.8 mm

1шт.

27

177712C1

CLIP

hose retainer, 6 for 110 in., 2794.0 mm, 7 for 132 in., 3352.8 mm

1шт.

28

177714C1

ROD

STAND ASSY

2шт.

153528C1

COTTER PIN

3/32 qa cot.

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2.250 hd type 1

1шт.

29

176955C2

SEAL

front, For 110 in., 2794.0 mm

1шт.

29

176956C2

SEAL

front, For 132 in., 3352.8 mm

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

30

179399C1

BAND

pivot

2шт.

31

567631R93

LACING

conveyor belt, Consists of, 20 cards of 38 stainless steel lacing no. 2 hooks on each card

1шт.

32

124554

O-RING

5/16 x 1 Woodruff

1шт.

33

180120C91

KIT

TAPE PACKAGE, pickup belt, 5 packages for 110 in. pickup, 6 packages for 132 in. pickup

1шт.

1316490C1

TOOL

conveyor belt lacing, Replaces 182148C1, Not illustrated

1шт.

Выбрано товаров: 86
