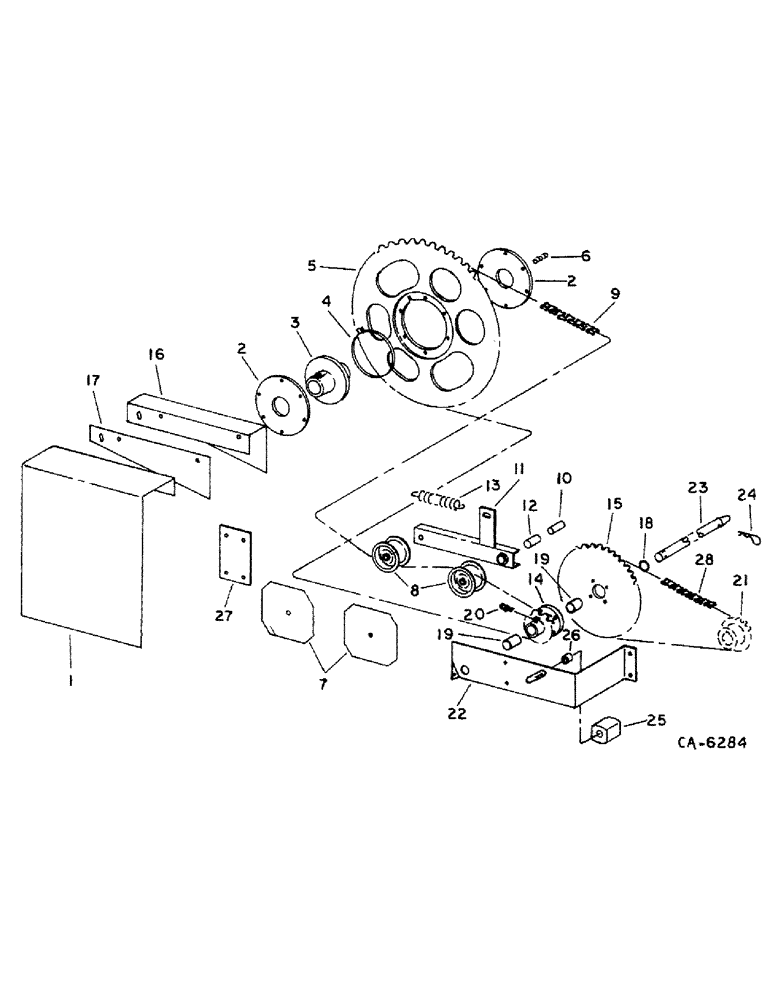

Запчасти Case IH 1482 (33-27) - FEEDER, MECHANICAL REEL DRIVE (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
187266C1
SUPPORT
driven slip clutch
1шт.
19532R1
BOLT,Hex, 3/8" - 16 x 1/2", Gr 2
3/8 x 1/2 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
2
569436R1
PLATE
clutch clamp
2шт.
18767R1
BOLT,Hex, 5/16"-18 x 2", G2
5/16 x 2 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
134238R1
WASHER
.344 x 1.000 x .054
1шт.
3
633173R1
HUB
clutch
1шт.
18801R1
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2
7/16 x 2-3/4 type 1
1шт.
271501
SOCKET
NUT, 7/16 type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
4
570029R1
BAND
clutch
1шт.
5
184570C1
SPROCKET ASSY.
SPROCKET, driven, 50T
1шт.
6
568243R1
SPRING
clutch
3шт.
7
178060C1
GUARD
SHIELD, idler
2шт.
8
559168R91
PTO
PULLEY, chain idler bearing, 3-1/2 in. OD, 89.9 mm OD
2шт.
18812R1
BOLT,Hex, 1/2" - 13 x 3", Gr 2
1/2 x 3 type 1
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
9
CHAIN ASSY, drive, Use 85 links from 10 ft roll marked 569089R91, 2 connecting links 587372R91, 1 offset link 456929R91 and 1 roller link 456979R91
1шт.
456929R91
CHAIN LINK
LINK, #2050 double pitch offset
1шт.
456979R91
CHAIN LINK
LINK, #2050 double pitch roller
1шт.
587372R91
CONNECTING LINK
LINK, #2050 double pitch connecting
2шт.
10
675601R1
SPACER
pivot
1шт.
11
170727C91
ARM
ASSY, chain idler, Includes: Ref. 12
1шт.
18817R1
BOLT,Hex, 1/2" - 13 x 6", Gr 2
1/2 x 6 type 1
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
12
398274R1
BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L
idler arm
1шт.
13
662632R1
SPRING
idler
1шт.
162293C1
BOLT, idler tightener
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
14
185768C91
SPROCKET ASSY.
SPROCKET, drive, 8T, Includes: Ref. 19
1шт.
131019
SWEEP
1.062 x 2.000 x .108
1шт.
15
185767C1
SPROCKET ASSY.
SPROCKET, jackshaft, 54T
1шт.
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
5/16 x 1 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 cad p/t lock type 5
1шт.
16
187251C1
SUPPORT
driven sprocket
1шт.
19532R1
BOLT,Hex, 3/8" - 16 x 1/2", Gr 2
3/8 x 1/2 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
17
187264C1
BAR
driven sprocket shield
1шт.
18780R1
BOLT,Hex, 3/8"-16 x 1 3/4", G2
3/8 x 1-3/4 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
142619H
WASHER
.406 x .750 x .105
1шт.
18
20704R1
WASHER
1.031 x 1.500 x .105
1шт.
19
583346R1
BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L
2шт.
20
87414
LUBE NIPPLE,1/4" - 28
FITTING, 1/4-28 self-tap lub
1шт.
21
SPROCKET ASSY, drive, 18T, Refer to this group under pickup LH drive
1шт.
22
185765C1
SUPPORT
jackshaft
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
23
185766C1
ROD
drive
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
20704R1
WASHER
1.031 x 1.500 x .105
1шт.
24
486830R1
COTTER PIN
PIN, 3/16 qa cot.
1шт.
25
582018R1
BLOCK
chain tightener
1шт.
271733
BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5
5/8 x 4-1/2 type 5
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
1шт.
26
627389R1
SPACER,16.7mm ID x 22.23mm OD x 22.2mm L
.657 x .875 x .875
1шт.
27
179056C1
PLATE
BAR, shield support
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 cad p/t lock type 5
1шт.
28
CHAIN ASSY, jackshaft drive, Use 73 links from 10 ft roll marked 1791D, 1 connecting link 1310D and 2 offset link 1315D
1шт.
1310D
LINK
#50 single pitch connecting
1шт.
1315D
LINK
#50 single pitch offset
2шт.
