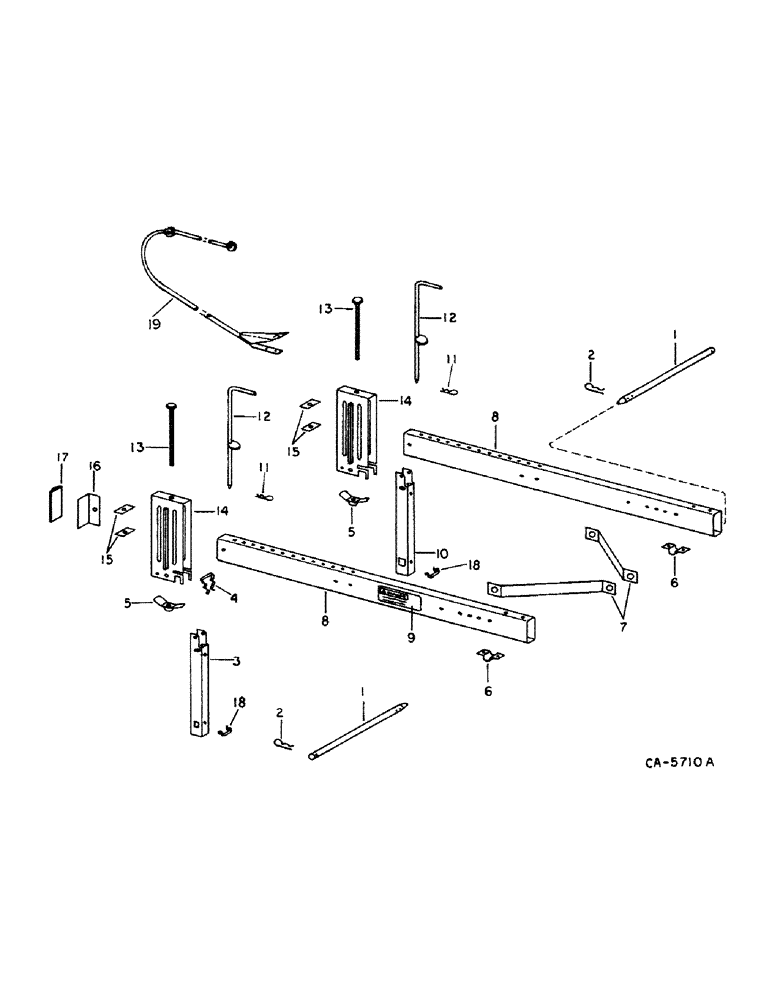

Запчасти Case IH 1482 (33-26) - FEEDER, REEL SUPPORT ARM (13) - FEEDER

1

PIN, upper pivot, Refer to this group under header

2шт.

2

486830R1

COTTER PIN

PIN, 3/16 qa cotter

2шт.

3

187320C2

SUPPORT

safety cylinder, Replaces 189958C

2шт.

4

184875C1

CLIP

safety stand support

2шт.

5

177531C1

FLANGE NUT

NUT ASSY, wing

2шт.

6

176787C2

CLAMP

reel arm

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 znd type 5

1шт.

7

176798C1

SHAFT

BRACE, support arm

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

8

184593C91

ARM

support, Includes: Ref. 9

2шт.

9

185944C1

PRODUCT GRAPHIC

caution

1шт.

10

187320C2

SUPPORT

safety cylinder

1шт.

11

586591R1

COTTER PIN

PIN, 1/8 qa cotter

2шт.

12

176788C2

ROD ASSY.

ROD ASSY, locking

2шт.

13

565171R1

BOLT,Hex, 1/2" - 13 x 10"

lift arm

2шт.

14

185747C1

YOKE

ASSY, lift

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

15

584813R1

STRIP

yoke stop

4шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 type 1

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 cad p/t lock type 8

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

184876C1

CLAMP

CLIP, safety stand retaining

2шт.

19

178619C1

ROD ASSY.

ROD ASSY, divider long RH

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.
