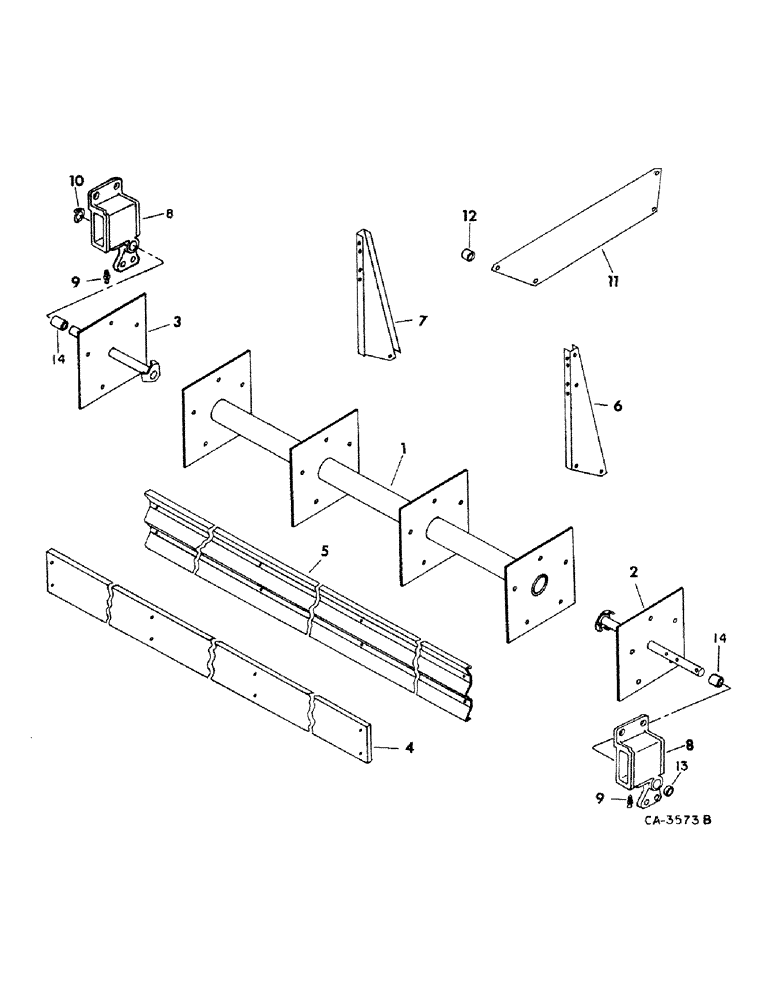

Запчасти Case IH 1482 (33-24) - FEEDER, IH REEL, 17.5 FOOT HEADER (13) - FEEDER

1

176744C1

TUBE

ASSY, reel

1шт.

2

176802C1

SHAFT

reel RH

1шт.

3

176798C1

SHAFT

reel LH

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

187021C1

BAT ASSY.

BAT, reel

5шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

6

179108C1

SUPPORT

bat LH

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

179709C1

SPROCKET ASSY.

SUPPORT, bat RH

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

176811C2

SUPPORT

shaft

2шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str self-tap lub

2шт.

10

633177R1

WASHER

WASHER, cotter pin retaining

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

Q3859

WASHER

1.781 x 2.750 x .105 pln

1шт.

22768R1

WASHER

1.781 x 2.750 x .042

1шт.

11

171396C1

GUARD

end

10шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe 1/4" Pipe x 3/4"

20шт.

13

NOT USED IN THIS APPLICATION

1шт.

14

NOT USED IN THIS APPLICATION

1шт.
