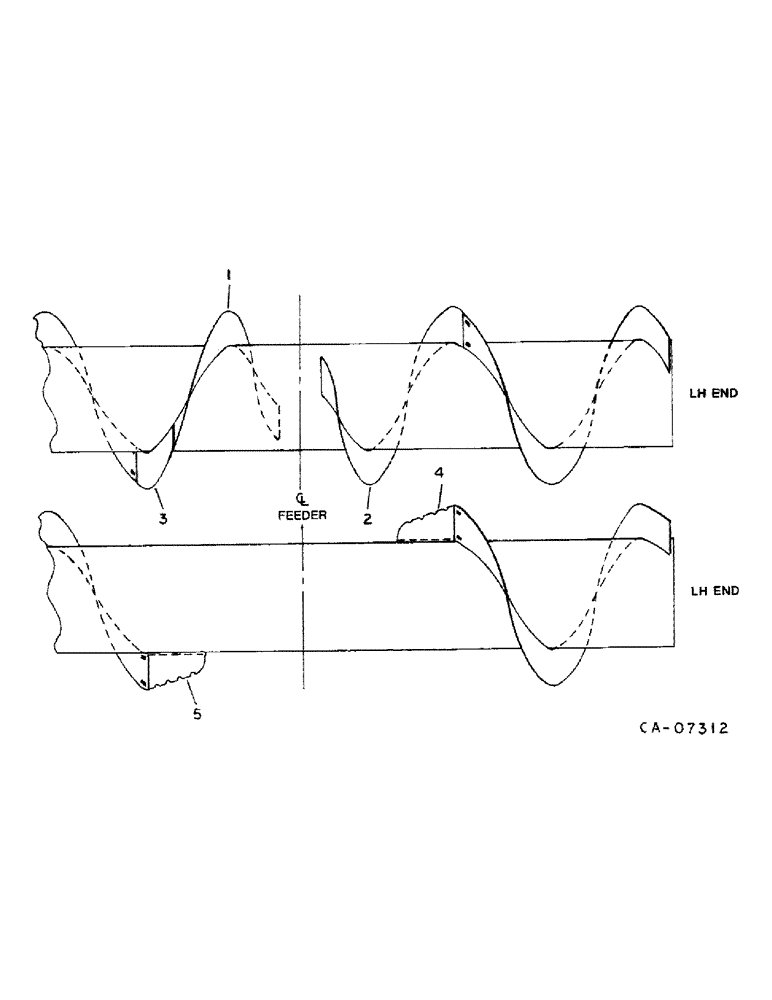

Запчасти Case IH 1482 (33-23) - FEEDER, AUGER EXTENSION (13) - FEEDER

1

587775R91

AUGER

EXTENSION ASSY, RH, For downed crops

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16-18 hex

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

626610R91

AUGER

EXTENSION ASSY, LH, For downed crops

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16-18 hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

1305933C1

EXTENSION ASSY.

EXTENSION ASSY, RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

4

EXTENSION, auger LH, Order package 1300428C91

1шт.

5

EXTENSION, auger RH, Order package 1300428C91

1шт.

1300428C91

PACKAGE

auger extension, Consists of:

1шт.

EXTENSION, auger LH (NSS)

1шт.

EXTENSION, auger RH (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
