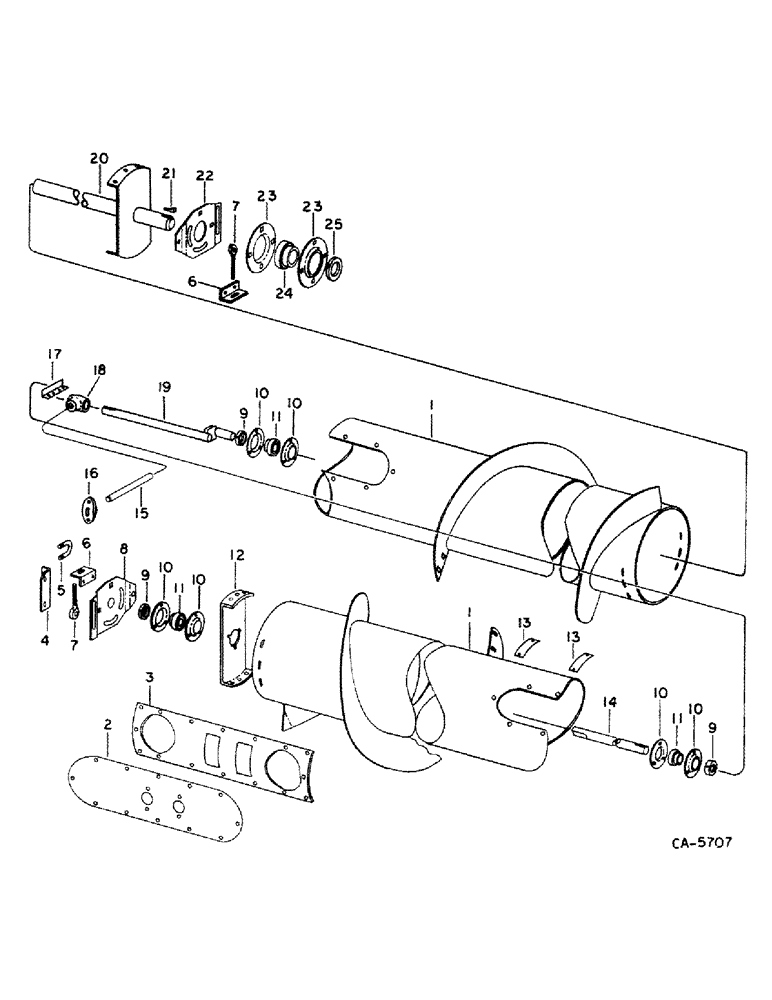

Запчасти Case IH 1482 (33-21) - FEEDER, HEADER AUGER (13) - FEEDER

1

179876C1

AUGER

ASSY, For 12.5 ft, Serial Range: -10240

1шт.

1

1313051C1

AUGER

ASSY, For 12.5 ft, Start Serial: 10241

1шт.

1

187038C2

AUGER ASSY, For 17.5 ft, Serial Range: -10240

1шт.

1

1313052C1

AUGER

ASSY, For 17.5 ft, Start Serial: 10241

1шт.

2

150731C2

COVER

auger finger, Serial Range: -10240

1шт.

2

1313091C1

COVER

auger finger, Start Serial: 10241

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

177663C4

ANGLE

finger adjustment

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

3/8 round

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

1шт.

6

177065C1

ANGLE

adjusting

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

177662C1

EYEBOLT,1/2" - 13 x 3 1/2"

BOLT, adjusting eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

8

177082C1

BRACKET

bearing RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

9

455102R21

COLLAR

W/ SET SCREW

3шт.

10

937517R1

FLANGE

bearing

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, shaft

3шт.

12

184556C1

RETAINER

angle RH shaft

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

1шт.

13

167823C1

COVER

auger finger hole

4шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

1шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hdcr flg lk

1шт.

14

189964C1

SHAFT

auger adjustment, For 12.5 ft

1шт.

14

187037C1

SHAFT

auger adjustment, For 17.5 ft

1шт.

15

187072C3

FINGER

retractable, Serial Range: -10240

12шт.

15

1313061C1

FINGER

PIN, retractable, Start Serial: 10241

18шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

16

189649C1

GUIDE

finger, Start Serial: 10241

12шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

16

1307259C2

GUIDE

finger, Start Serial: 10241

18шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 flg lock

1шт.

127550

NUT,Tee, 1/4"-20

1/4-20 pln tee

1шт.

17

197879C1

ANGLE

auger center shaft clamp

1шт.

18

187071C1

HUB

finger, Serial Range: -10240

16шт.

18

1308425C1

HUB

finger, Start Serial: 10241

20шт.

19

185638C1

SHAFT ASSY.

SHAFT ASSY, center

1шт.

20

181581C1

SHAFT ASSY.

SHAFT ASSY, center

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

1шт.

21

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, hd sq tapered

1шт.

22

177081C1

BRACKET

bearing LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

23

663562R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING, shaft LH

1шт.

25

455112R11

COLLAR

W/ SET SCREW, bearing locking

1шт.
