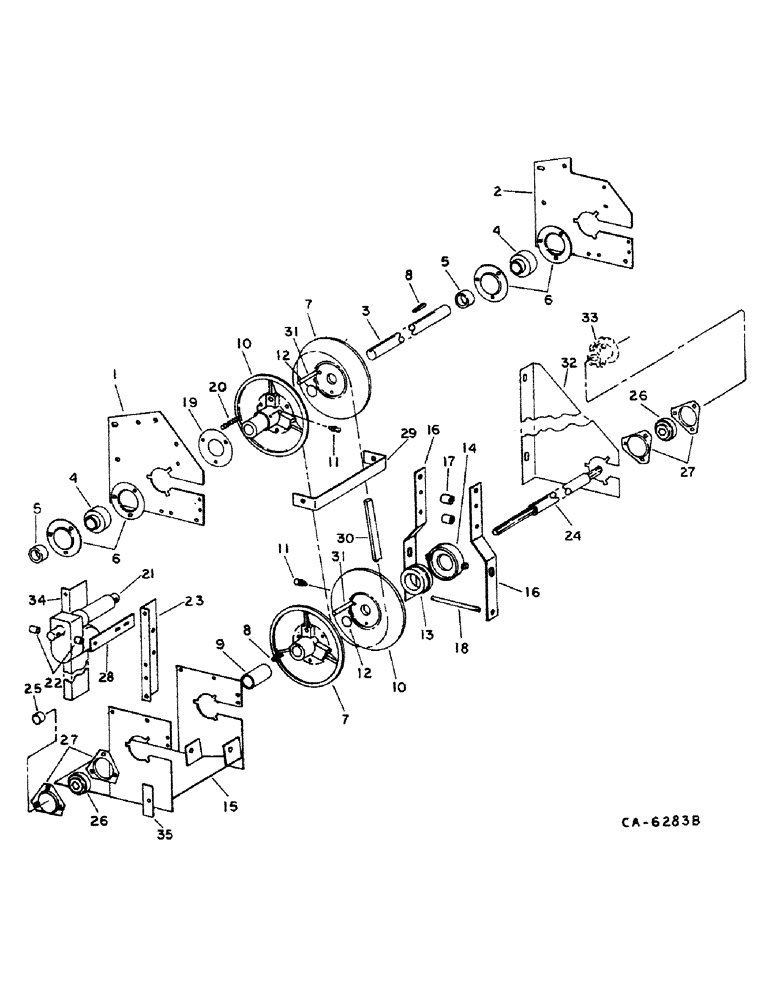

Запчасти Case IH 1482 (33-19) - FEEDER, HEADER VARIABLE DRIVE (13) - FEEDER

1

189169C2

SUPPORT

ASSY, variator jackshaft LH

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

2

189184C1

SUPPORT

PLATE, variator jackshaft support RH

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

1шт.

3

189165C1

SHAFT

variator

1шт.

4

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, ball

2шт.

5

517645R11

COLLAR

ASSY, bearing

2шт.

6

180955C1

FLANGED BEARING,0.375"

FLANGE, bearing

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

189174C91

PULLEY

W/ PINS, fixed half drive, 11.24 in. OD, 285.8 mm OD, Includes: Ref. 33

2шт.

8

28227R1

KEY

3/8 x 1-1/4 sq tapered

2шт.

9

28226R1

SPACER

1-1/2 x 2-1/2 std pipe

1шт.

10

189176C1

PULLEY

adjustable half drive, 11.24 in., 285.5 mm OD

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap

2шт.

12

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/8

2шт.

13

3206703R92

BEARING

thrust

1шт.

14

189182C1

PIVOT

driver

1шт.

15

189178C2

PIVOT

SUPPORT ASSY, pivot

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

16

189177C1

ARM

shifter pivot

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

127672C1

SPACER

.438 x 1.00 x 1.12

2шт.

18

189181C1

ROD

PIN, pivot

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 hd type 1

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

19

189194C1

RETAINER

drive pulley

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20

606487C1

VALVE SPRING

SPRING

3шт.

21

1330205C1

MOTOR

ASSY, drive actuator, Replaces 181678C1 by also ordering package, 1330189C91

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21969R1

HEADED PIN,1/2" x 4"

PIN, 1/2 x 4.000 hd type 1

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

22

391553R1

SPACER,1/2" Pipe x 7/8"

1/2 x .875 std pipe

2шт.

23

1307728C2

ANGLE

motor support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

24

187075C1

SHAFT

header jack

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

25

650363R1

SPACER

1-1/4 x 1 std pipe

1шт.

26

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, header jackshaft

2шт.

27

180955C1

FLANGED BEARING,0.375"

FLANGE, header jackshaft bearing

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

28

1330188C1

BAR ASSY.

BAR ASSY, actuator support, For motor, 1330205C1

2шт.

28

181677C1

BAR, actuator support, For motor 181678C1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

29

189173C1

BRACE

CHANNEL, support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

30

189219C1

V-BELT,1.25" W x 63.15" L

BELT , Drive 1.25" W x 63.15" L

1шт.

31

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln hdn dowel

2шт.

32

189199C2

BRACKET

SUPPORT, header jackshaft bearing

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

668569R1

WASHER

.344 x 1.500 x .105

1шт.

33

SPROCKET, header drive coupler, 13T, Refer to this group under feeder jackshaft drive

1шт.

34

1307742C2

ANGLE

motor bracket

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

35

154041C1

STRIP

motor support clamp

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

1330189C91

PACKAGE

actuator support bar, Consists of: 1330188C1 bar assy and instructions

1шт.
