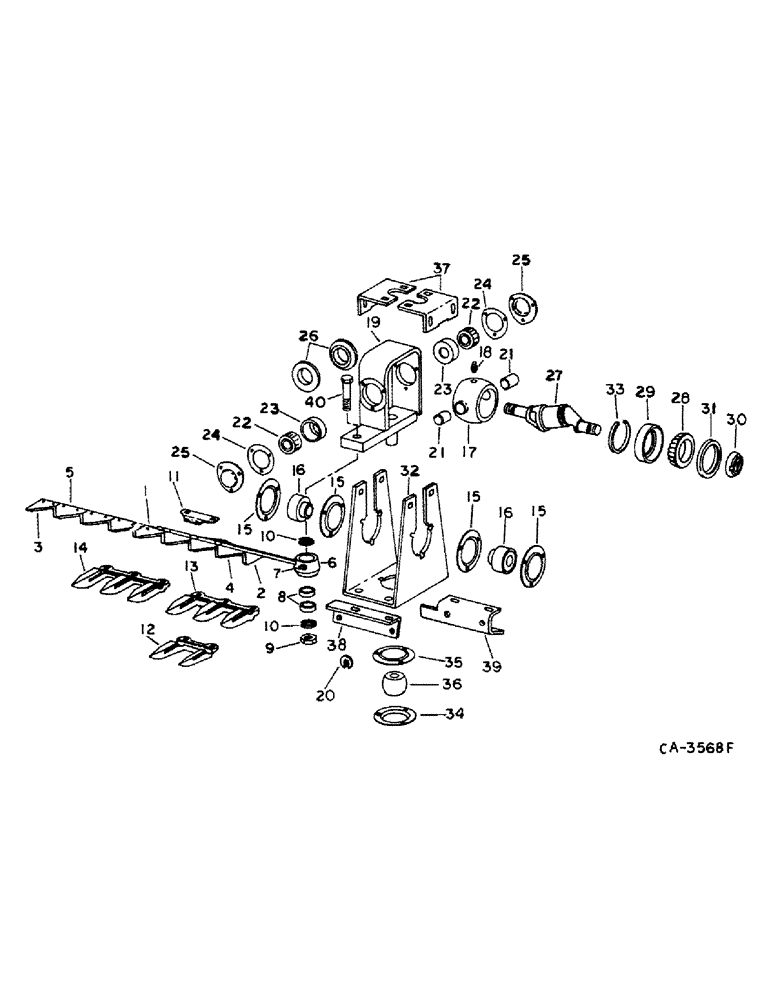

Запчасти Case IH 1482 (33-15) - FEEDER, KNIFE, FOR 17.5 FOOT HEADER (13) - FEEDER

1

181952C93

KNIFE ASSY

plain

1шт.

1

181953C93

BLADE

KNIFE ASSY, chrome, Includes: Ref. 2 - 6, Parts accessory

1шт.

990667R91

BOX

RIVET PKG, 1/4 x 7/8 74 D c/hd, 74 pcs

1шт.

991059R91

RIVET

PKG, no. 6 x 5/8 o/hd, 2 lb

1шт.

990719R91

RIVET

RIVET PKG, no. 6 x 7/8 o/hd, 1 lb

1шт.

2

1319390C1

KNIFE SECTION

SECTION, half LH, Replaces 634789R1 and 634790R1 serrated halves

1шт.

3

1319391C1

KNIFE SECTION

SECTION, half RH, Replaces 634791R1 and 634792R1 serrated halves

1шт.

4

634787R2

KNIFE SECTION

SECTION, LH, plain serrated

3шт.

4

634788R2

KNIFE SECTION

SECTION, LH, chrome serrated, Parts accessory

3шт.

5

634793R2

KNIFE SECTION

SECTION, plain serrated

65шт.

5

634794R2

KNIFE SECTION

SECTION, chrome serrated, Parts accessory

65шт.

6

197230C91

HEAD

W/ BEARINGS, knife, Includes: Ref. 7, 8 and 10

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

8

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

head ball

2шт.

9

22244R1

LOCK NUT

3/4 znp nylon insert

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , head brg 1.625", Int, #162

2шт.

11

176722C1

CLIP

hold down

16шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

633098R1

GUARD

double

3шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

176724C1

GUARD

triple LH

3шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

633240R1

GUARD

triple

18шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

202909C1

BEARING HOUSING

FLANGE, bearing grooved, Replaces 470746R1

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

1306680C1

FLANGE NUT

NUT, 3/8 p/t flange lock

1шт.

16

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

shaft

2шт.

17

178020C1

HOUSING

bearing

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

19

181865C2

SUPPORT ASSY.

YOKE W/ STUD, drive

1шт.

178024C2

PIN,28.57mm OD x 89mm L

STUD, bearing

1шт.

20

545484R1

WASHER

WASHER, shim

1шт.

21

178025C1

PIN,21.49mm OD x 36.58mm L

bearing housing

2шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

2шт.

23

371883R1

BEARING CUP

2шт.

24

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

bearing retainer .002

1шт.

24

458956R1

SHIM

bearing retainer .005

1шт.

24

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

bearing retainer .010

1шт.

25

1316859C1

CAP

RETAINER, bearing, Replaces 458958R1

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90d lube

1шт.

26

197895C1

SEAL

SEAL, bearing

2шт.

27

1305084C1

SHAFT

wobble

1шт.

28

G15215

ROLLER BEARING

CONE, bearing

2шт.

29

619387R1

BEARING CUP

CUP, bearing

2шт.

30

178028C1

LOCK NUT

lock

1шт.

Ref#30 - the spanner wrench for the 178028C1 is listed in 1600 Service Manual Section 9115 as a 16-569.

1шт.

31

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL, oil

2шт.

32

1307386C2

SUPPORT

wobble drive, Replaces 178030C2

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

1шт.

33

627095C1

SPACER

snap ring cup

1шт.

34

167878C11

FLANGE

W/ 45 DEG LUB FITTING, brg

1шт.

35

202909C1

BEARING HOUSING

FLANGE, bearing grooved, Replaces 470746R1

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

1шт.

36

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

HOUSING W/ BEARING, ball, Replaces 181866C91

1шт.

37

178033C1

SHIELD

drive

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

38

185873C2

SUPPORT

ANGLE, front mounting

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

1шт.

25536R1

WASHER

.531 x 1.062 x .095 phc hdn

1шт.

39

185872C2

BRACKET

CHANNEL, rear mounting

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

40

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga, hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

1330048C91

WOBBLE BOX

800 SERIES WOBBLE BOX

1шт.

1330048C91R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

1330048C91C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.
