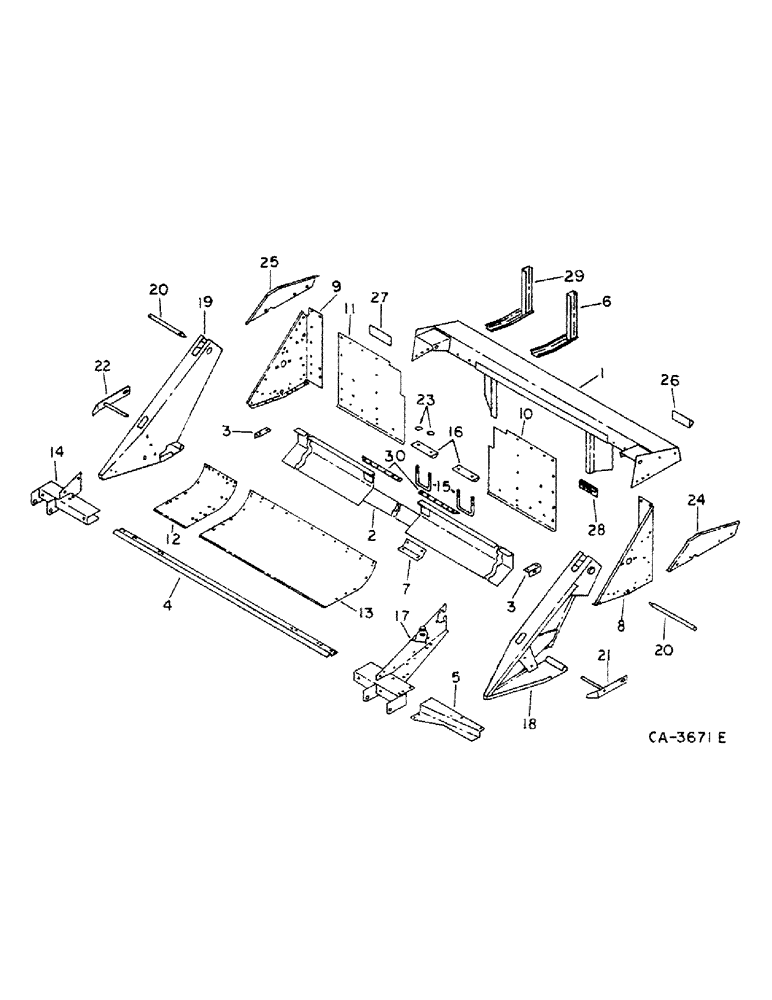

Запчасти Case IH 1482 (33-12) - FEEDER, HEADER (13) - FEEDER

1

184746C92

BEAM ASSY.

BEAM ASSY, main, For 12.5 ft

1шт.

1

181951C92

BEAM ASSY, main, For 17.5 ft, Includes: Ref. 27 & 28

1шт.

2

179874C2

BEAM ASSY.

BEAM ASSY, lower, For 12.5 ft

1шт.

2

187041C4

BEAM ASSY.

BEAM ASSY, lower, For 17.5 ft

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

3

176685C2

ANGLE

stripper end

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

4

179873C1

BAR

cutter, For 12.5 ft

1шт.

4

176642C2

KNIFE

BAR, cutter, For 17.5 ft

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

178004C1

SUPPORT

knife drive lower, For 17.5 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 phc hdn

1шт.

6

176651C3

SUPPORT ASSY.

SUPPORT ASSY, J inner RH

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad p/t lock type 5

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

1шт.

7

176655C1

ANGLE

bottom support, For 12.5 ft

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

8

176656C2

SHEET

LH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

9

176657C2

SHEET

RH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

10

176670C1

BACKSHEET, left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

176665C1

SHEET

BACKSHEET, right, For 12.5 ft

1шт.

187044C1

BACKSHEET, right, For 17.5 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

12

176678C2

BOTTOM

right, For 12.5 ft

1шт.

12

187043C2

SHEET

BOTTOM, right, For 17.5 ft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

13

176684C2

SHEET

BOTTOM, center

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

14

176836C1

SUPPORT ASSY.

CHANNEL ASSY, RH divider

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

15

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

16

177140C1

BAR

feeder latch u-bolt

2шт.

17

178001C3

SUPPORT

ASSY, knife drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

18

176812C1

DIVIDER

ASSY, LH, For 17.5 ft

1шт.

19

176813C1

DIVIDER

ASSY, RH, For 17.5 ft

1шт.

20

197959C2

AXLE PIN

PIN, upper pivot, For 17.5 ft, 1 used RH

1шт.

517843R1

COTTER PIN

PIN, 3/16 cot

1шт.

27807R1

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

21

176830C2

BOLT

PIN ASSY, lower LH, For 17.5 ft

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x .812 hd type 1

1шт.

22

176832C2

PIN ASSY.

PIN ASSY, lower RH, For 17.5 ft

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x .812 hd type 1

1шт.

23

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

24

176937C2

GUARD

SHIELD, auger end LH, Standard w/ windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

25

176938C2

GUARD

SHIELD, auger end RH, Standard w/ windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

26

175311C1

REFLECTOR

red, For 17.5 ft

1шт.

27

1320694C1

DECAL

PRODUCT GRAPHIC, danger, Replaces 176977C1

1шт.

28

184624C1

PRODUCT GRAPHIC

caution

1шт.

29

176650C3

SUPPORT ASSY.

SUPPORT ASSY, J outer RH, For 17.5 ft

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad p/t lock type 5

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

30

STRIPPER, auger adjustable, For 17.5 ft, Order 180583C91 package

2шт.

180583C91

STRIPPER PACKAGE

PACKAGE, auger adjustable stripper bar, 17.5 ft, Consists of:

1шт.

STRIPPERS (NSS)

2шт.

INSTRUCTIONS (NSS)

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
