Запчасти Case IH 1482 (33-10) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER

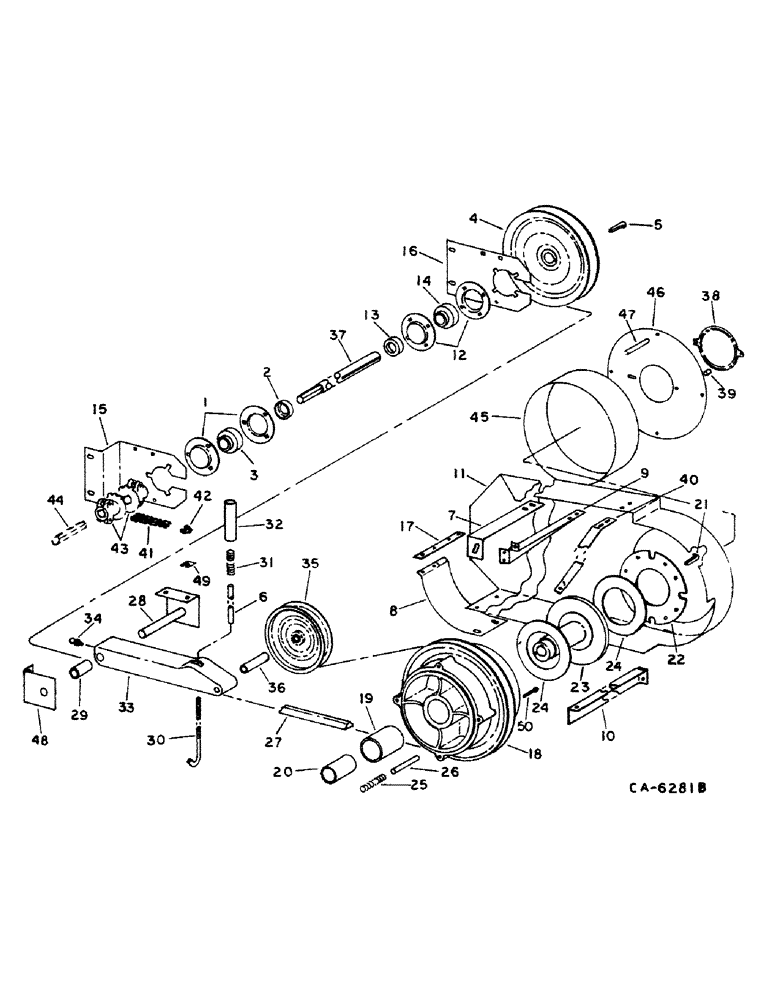

Схема запчастей Case IH 1482 - (33-10) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER
25
16
45
20
8
46
27
50
49
4
5
37
42
43
24
48
7
47
39
30
36
15
24
13
10
38
1
23
29
41
40
21
9
34
44
33
19
28
12
17
2
22
3
26
14
35
11
6
31
18
32

Артикул

Название

Примечание

Количество

1

180955C1

FLANGED BEARING,0.375"

FLANGE, jackshaft bearing LH

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

517645R11

COLLAR

W/ SET SCREW, bearing LH

1шт.

3

611583R91

BALL BEARING

BEARING, LH

1шт.

4

176568C2

PULLEY

driven, 13.5 in. OD, 342.9 mm OD

1шт.

5

Q1376

KEY

3/8 x 2-1/4 sq tapered

1шт.

6

176544C2

SPACER

adjusting bolt inner

1шт.

7

189450C2

SUPPORT ASSY.

SUPPORT, shield upper front

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

8

189458C1

SUPPORT

shield drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

189452C1

SUPPORT

shield upper rear

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

185750C1

SUPPORT

shield lower rear

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

187000C3

SHIELD

ASSY, drive

1шт.

12

663562R1

FLANGE

bearing RH

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

13

184648C1

COLLAR

W/ SET SCREW, bearing RH

1шт.

14

184647C91

BALL BEARING,34.92mm ID x 80mm OD x 21mm W

BEARING, RH

1шт.

15

184636C2

SUPPORT

bearing LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

16

187478C2

SUPPORT

bearing RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

17

187014C1

SUPPORT

BAR, shield adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

185958C92

PULLEY ASSY.

PULLEY W/ BUSHING, clutch, 16.7 in OD, 424.4 mm OD, Includes: Ref. 19

1шт.

19

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

clutch pulley

1шт.

20

1305393C1

SPACER

clutch hub

1шт.

21

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

22

185955C1

PLATE

RETAINER, clutch

1шт.

23

1305154C2

HUB

RETAINER, clutch

1шт.

24

181579C1

DISC

DISC, clutch friction

2шт.

25

1305692C1

SPRING

slip clutch

8шт.

142619H

WASHER

.406 x .750 x .105

1шт.

26

181583C2

SPACER

clutch spring

8шт.

27

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Header drive OC 22.33 mm W x 3706.69 mm L

1шт.

28

182322C1

SUPPORT

ASSY, idler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

29

PO27260

SPACER,1" Pipe x 2"

1.05 x 1.315 x 2.0 pipe

1шт.

30

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

idler draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

21883R1

WASHER

.531 x 1.750 x .090

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

31

523267R1

SPRING

adjusting bolt

1шт.

32

176569C1

SPACER

adjusting bolt spring

1шт.

33

1305142C1

ARM ASSY.

ARM, jackshaft tightener

1шт.

34

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/2-28 45 deg self tap

1шт.

35

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

drive tightener, 8-3/4 in. OD, 222.3 mm OD

1шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 x 8 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

36

525721R1

SPACER,3/4" X-Strng Pipe x 3"

3/4 x 3 x-strong

1шт.

37

187076C2

SHAFT

feeder cross

1шт.

38

188315C1

DOOR

access

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

39

388441C1

SPACER

1/4 x 1 x-strong

2шт.

40

185749C1

SUPPORT

shield upper strap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

41

CHAIN ASSY, coupler, double, Use 11 links from 10 ft roll marked 1355D, 1 offset link 1313D and 1 connecting link 1312D

1шт.

1312D

LINK

#60H-2 single pitch connecting

1шт.

1313D

CHAIN LINK

LINK, #60H-2 single pitch offset

1шт.

42

197887C91

LINK

offset

1шт.

43

182325C1

SPROCKET ASSY.

SPROCKET, header drive coupler, 13T

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

44

SHAFT, header drive, Refer to this group under header drive

1шт.

45

1305724C1

SHIELD

SPACER, friction clutch

1шт.

46

1305725C1

SHIELD

RETAINER, friction clutch cover

1шт.

47

4507031R1

SPACER

.281 x .375 x 3.0 tube

4шт.

433051

BOLT, 1/4 x 3-3/4 type 5 Hex, 1/4"-20 x 3 3/4", G5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

48

182323C1

SUPPORT

idler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

49

151670C1

SHIM

SHIM, jackshaft idler pivot

4шт.

50

1315320C1

BOLT,Hex, 3/8" - 16 x 4 3/4", Type 5

3/8 x 4-3/4 hex type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

Выбрано товаров: 104
