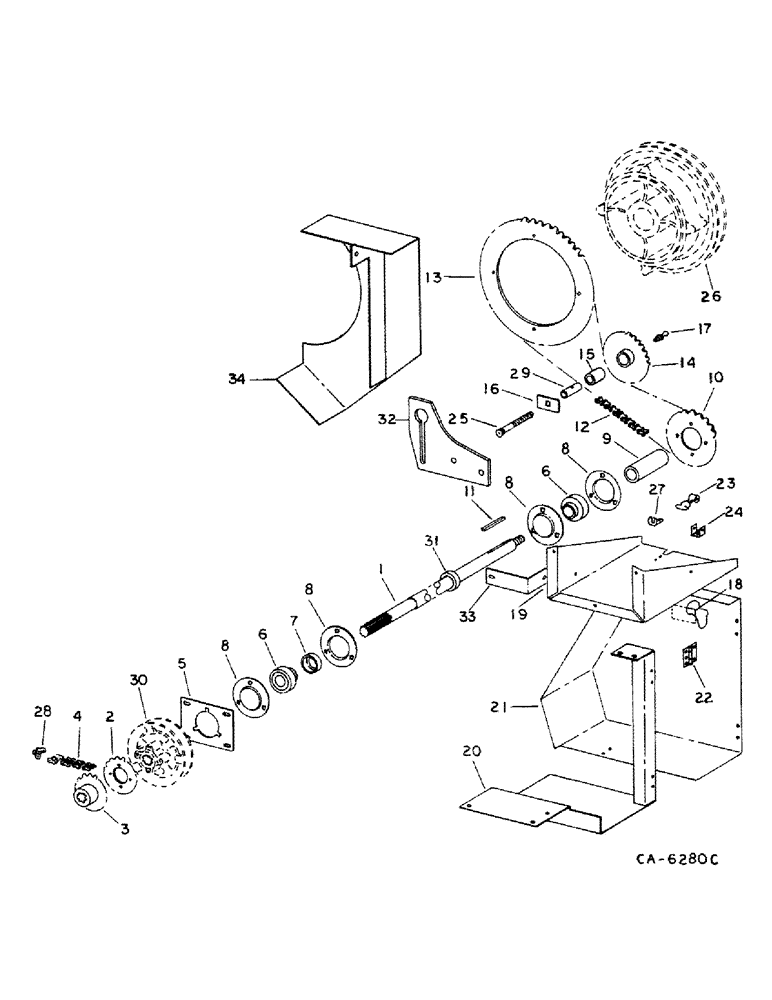

Запчасти Case IH 1482 (33-08) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

1308086C91

SHAFT

feeder cross

1шт.

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-NF cad p/t lock type 5

1шт.

23071R1

WASHER

.906 x 2.000 x .164

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

1шт.

22482R1

WASHER

1.406 x 2.250 x .105

1шт.

2

181656C1

SPROCKET ASSY.

SPROCKET, drive cross shaft, 19T

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 phc type 8

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

3

189643C2

SPROCKET ASSY.

SPROCKET ASSY, chain coupling, 19T

1шт.

4

CHAIN ASSY, coupling, double, Use 17 links from 10 ft roll marked 1355D, 1 offset link 1313D and 1 connecting link 1312D

1шт.

1312D

LINK

#60H-2 single pitch connecting

1шт.

1313D

CHAIN LINK

LINK, #60H-2 single pitch offset

1шт.

5

187398C1

BAR

cross shaft LH bearing support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

6

611583R91

BALL BEARING

BEARING, cross shaft

2шт.

7

517645R11

COLLAR

locking

1шт.

8

180955C1

FLANGED BEARING,0.375"

RETAINER, bearing

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

189387C1

BUSHING

clutch hub

1шт.

10

189642C1

SPROCKET ASSY.

SPROCKET, feeder drive, 20T

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 2-3/4 sq parallel

1шт.

12

CHAIN ASSY, feeder drive, For use w/o rock trap, Use 69 links from 10 ft roll marked 654437R91 and 1 connecting link 654438R91

1шт.

654438R91

LINK

#80 single pitch connecting

1шт.

12

CHAIN ASSY, feeder drive, For use w/ rock trap, Use 79 links from 10 ft roll marked 654437R91 and 1 connecting link 654438R91

1шт.

654438R91

LINK

#80 single pitch connecting

1шт.

12

CHAIN ASSY, feeder drive extension, Field installed rock traps only, Use 9 links from 10 ft roll marked 654437R91 and 1 connecting link 654438R91

1шт.

654438R91

LINK

#80 single pitch connecting

1шт.

13

185912C1

SPROCKET ASSY.

SPROCKET, feeder driven, 49T

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

172079C91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler, 19T, Includes: Ref. 15

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21759R1

WASHER

.656 x 2.000 x .105

1шт.

15

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

needle

1шт.

16

160690C1

BAR

idler

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

18

179749C2

PRODUCT GRAPHIC

danger

1шт.

19

187008C1

SUPPORT

feeder shield upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

184754C1

SUPPORT

ASSY, shield lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 p/hdcr tap

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

1319881C1

SHIELD

SUPPORT, feeder drive, Replaces 187006C1, Includes: Ref. 18

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

22

184644C2

HINGE

shield

2шт.

23

494307C1

LATCH

HOOK, shield hold down

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22910R1

HEADED PIN

PIN, 1/4 x 1.500 hd type 1

1шт.

24

188103C1

BRACKET

hook anchor

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

25

23601K

BOLT,5/8" - 11 x 4"

idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21759R1

WASHER

.656 x 2.000 x .105

1шт.

26

PULLEY W/ BUSHING, feeder clutch, Refer to this group under feeder jackshaft drive

1шт.

27

764071C1

BRACKET

RETAINER, trim hook

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 c-z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

28

197887C91

LINK

offset

1шт.

29

578607R1

SLEEVE CYLINDER

SLEEVE

1шт.

30

PULLEY, unloader jackshaft drive, Refer to group 26 under grain tank unloader drive

1шт.

31

1307984C1

SPACER

BUSHING, RH bearing

1шт.

32

1320778C1

PLATE

idler

1шт.

467657R1

BOLT,Short NK, 5/8"-11 x 1 1/2", G5, Full Thd

5/8 x 1-1/2 crg type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

33

1319926C1

SUPPORT

feeder drive shield

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

34

1320745C91

SHIELD

ASSY, drive extension, Includes: product graphic 1320694C1

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7500032

BUSHING

NUT, 5/16 wing

2шт.
