Запчасти Case IH 1482 (33-07) - FEEDER, ELECTRIC CLUTCH, FEEDER AND UNLOADER DRIVE (13) - FEEDER

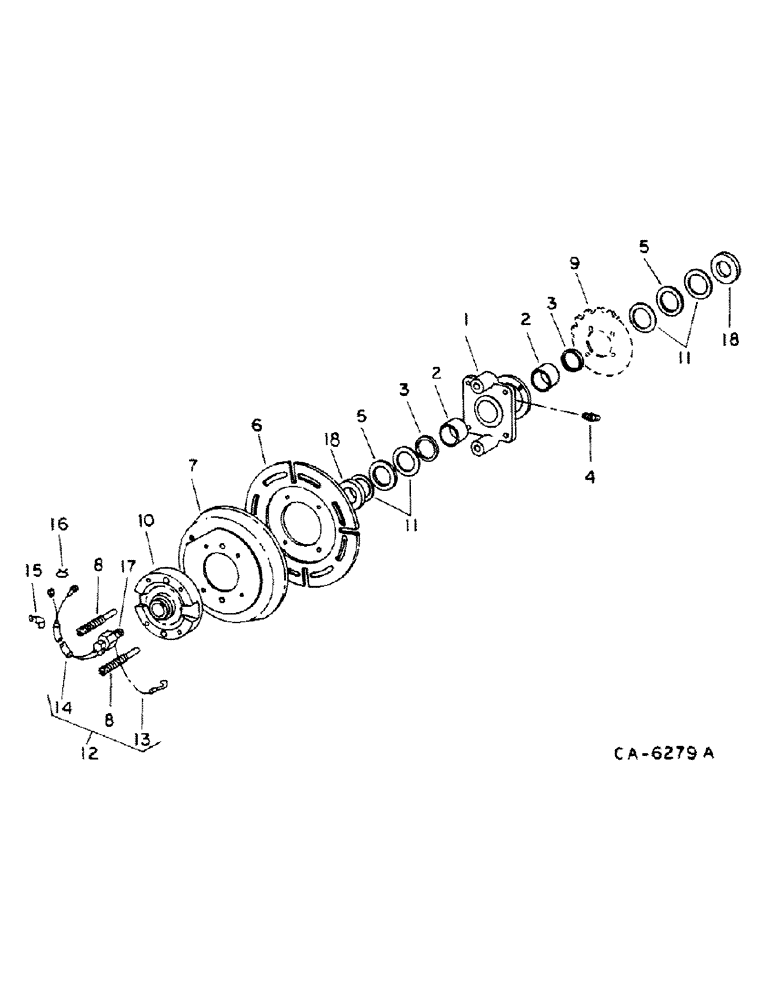

Схема запчастей Case IH 1482 - (33-07) - FEEDER, ELECTRIC CLUTCH, FEEDER AND UNLOADER DRIVE (13) - FEEDER
12
7
11
18
5
4
3
6
18
8
1
17
10
15
2
5
8
2
11
16
14
3
9
13

Артикул

Название

Примечание

Количество

1

189385C91

HUB ASSY.

HUB ASSY, drive clutch, Includes: Ref. 2 & 3

1шт.

2

392680R91

NEEDLE BEARING

clutch hub

2шт.

3

158109C91

SEAL

drive clutch hub bearing oil

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/8-28 str lub

1шт.

5

164683C1

THRUST WASHER

clutch hub thrust

2шт.

6

188754C1

ARMATURE

ASSY, drive clutch

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

188753C1

MAGNET

drive clutch

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

23071R1

WASHER

.906 x 2.000 x .164

1шт.

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-NF cad p/t lock type 5

1шт.

8

177190C1

STUD

drive clutch lockout

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

SPROCKET, feeder and unloader drive, Refer to this group under feeder drive, Refer to group 26 under grain tank unloader drive

1шт.

10

189384C1

HUB

unloader magnet drive

1шт.

10

189638C2

HUB

feeder magnet drive

1шт.

11

24582R1

WASHER

1-29/32 x 2-3/4 x 16 ga

4шт.

12

197839C91

HARNESS

brush holder, Includes: Ref. 13 & 14, Serial Range: -10005

1шт.

12

1313961C91

HARNESS

brush holder, Start Serial: 10006

1шт.

13

179650C1

ELECTRICAL WIRE

WIRE ASSY, Serial Range: -10005

1шт.

14

179651C1

CABLE

ASSY, Serial Range: -10005

1шт.

15

263717R91

CLIP

cable

1шт.

16

317683C1

CLAMP, brush holder cable

1шт.

17

122177C2

HARNESS

HOLDER ASSY, brush

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18

1307352C1

WASHER

1.438 x 3.000 x .180

2шт.

Выбрано товаров: 33
