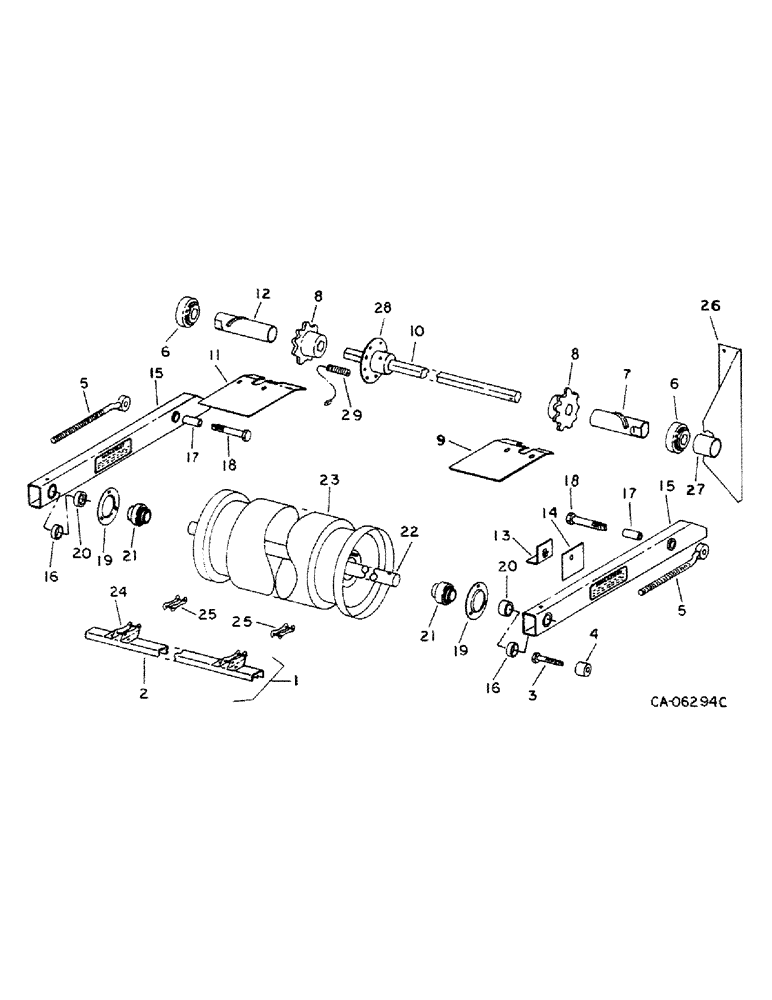

Запчасти Case IH 1482 (33-03) - FEEDER, FEED CONVEYOR (13) - FEEDER

1

1319204C91

CONVEYOR

ASSY, feed, Replaces 182097C91 and 1313189C91, Composed of:

1шт.

CHAIN, feed conveyor (NSS)

2шт.

CHANNEL, feed conveyor, slat (NSS)

12шт.

RIVET, 3/8 x 3/4 pln f/hd solid (NSS)

48шт.

2

1313420C1

SLAT

PACKAGE, feed conveyor, Replaces 182101C1, Consists of:

1шт.

SLAT, feed conveyor channel (NSS)

1шт.

RIVET, 3/8 x 3/4 pln f/hd solid (NSS)

4шт.

INSTRUCTIONS, installing (NSS)

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

chain tightening clamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22770R1

WASHER

.531 x 1.500 x .164

2шт.

4

197211C1

SPACER

feeder drum stop

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener eye

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

4шт.

6

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

7

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

8

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain, 9T (Replaces 187556C1 )

2шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex. soc cup-pt

4шт.

9

185818C1

STRIPPER ASSY.

SUPPORT, pivot LH, stripper

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

10

197278C1

SHAFT

feed conveyor, Without rock trap

1шт.

10

1320099C2

SHAFT

feed conveyor, With rock trap

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

2шт.

11

185819C1

STRIPPER ASSY.

SUPPORT, pivot RH, stripper

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

12

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

13

187364C2

ANGLE

ASSY, drum arm upper stop

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

.656 x 1.250 x .054 sq/h

2шт.

14

187225C1

BAR

upper stop adjusting, With stone retarder drum

2шт.

14

187347C1

PLATE

BAR, upper stop adjusting, Without stone retarder drum

2шт.

15

1305103C1

ARM ASSY.

ARM ASSY, feeder drum support

2шт.

16

11449P

SPACER,1 1/4" Pipe x 1/2"

1-1/4 x 1/2 in. std pipe, drum bearing

2шт.

17

187217C1

SPACER,7/8" Tube x 1 13/16"

7/8 x 1-13/16 in. tube, drum arm pivot

2шт.

18

187218C1

BOLT

drum support arm

2шт.

558506R1

SPACER

21/32 x 7/8 x 5/16 in, support arm bolt, Without stone retarder

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

4шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

19

202909C1

BEARING HOUSING

FLANGE, conveyor drum bearing, Replaces two 656631R1, All items with stone retarder drum

4шт.

Serial no. 40001 and above without stone retarder drum.

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

6шт.

25709R1

WASHER

.406 x .812 x .089 hdn

6шт.

19

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, conveyor drum bearing, without stone retarder drum, Serial Range: -40000

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

20

557995R11

COLLAR

W/ SET SCREW, drum bearing locking, All with stone retarder drum

2шт.

Serial no. 40001 & above without stone retarder drum.

1шт.

20

455102R21

COLLAR

W/ SET SCREW, drum bearing locking

2шт.

Serial no. 40000 and below without stone retarder drum.

1шт.

21

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

ASSY, feed conveyor drum, All with stone retarder drum

2шт.

Serial no. 40001 & above without stone retarder drum.

1шт.

21

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING ASSY, feed conveyor drum

2шт.

Serial no. 40000 and below without stone retarder drum.

1шт.

22

187208C1

ROD

feeder drum, shaft, All with stone retarder drum

1шт.

Serial no. 40001 & above without stone retarder drum.

1шт.

22

175983C2

SHAFT

ROD, feeder drum, shaft, without stone retarder drum, Serial Range: -40000

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 znp type 5

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

23

1957440C1

DRUM

ASSY, feed conveyor, Replaces drum, 187196C2 by also ordering four flanges, 202909C1, All with stone retarder drum (Replaces 1957349C1)

1шт.

23

175976C1

DRUM HUB

DRUM ASSY, feed conveyor, without stone retarder drum, Serial Range: -40000

1шт.

23

1319862C2

DRUM BRAKE ASSY

DRUM ASSY, feed conveyor, without stone retarder drum, Start Serial: 40001

1шт.

24

182090C1

LINK,Chain, 41.4mm Pitch

LINK, conveyor attaching

1шт.

25

182094C1

LINK,Chain, Link, 41.4mm

conveyor attaching

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

26

185786C2

ANGLE

feeder shaft, Serial Range: -20000

1шт.

27

162172C1

SPACER

conveyor shaft LH

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

6шт.

28

1305665C1

DISC

DISC ASSY, transducer pick-up

1шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex. soc cup-pt

2шт.

29

187855C1

ELECTRICAL GAUGE

GAGE, feeder reluctance pick-up, Serial Range: -5500

1шт.

145507

NUT,Stamped, 7/8"-14

7/8 NF c-z stamped

1шт.

29

1301241C1

SENSOR

CONVERTOR, reluctance pick-up, Start Serial: 5501

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 c-z stamped

1шт.

SB 50-87 Feeder Drum Bearing Flange Changed

1шт.

SB 15-88 Feeder Chains for Service are released with an A557 Transmission Chain for longer life and improved reliability. production use of the new chain to begin with 1682 Combines and will follow on all others as the old stock is depleted.

1шт.

SB 21-88 1313420C2 Bolt On Feeder Chain Slatz

1шт.
