Запчасти Case IH 1482 (33-01) - FEEDER, FEEDER (13) - FEEDER

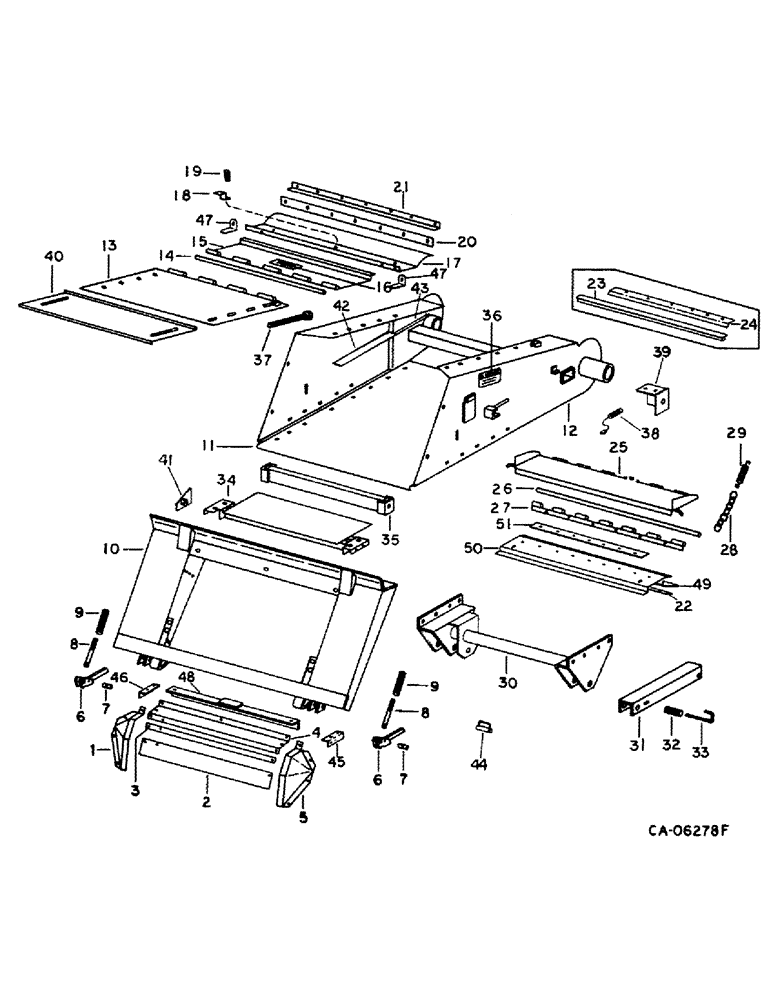

Схема запчастей Case IH 1482 - (33-01) - FEEDER, FEEDER (13) - FEEDER
34
40
2
35
15
33
22
47
31
12
19
9
8
17
5
29
23
6
21
10
24
45
48
27
30
28
9
1
16
14
49
43
51
37
32
50
26
11
38
44
8
3
46
42
41
20
18
7
39
36
25
13
7
47
6

Артикул

Название

Примечание

Количество

1

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

175956C1

COVER

front lower

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad prevailing torque lock

1шт.

3

175953C1

STRAP

STRIP, front cover backing

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 prev. torque lock

1шт.

4

175918C1

COVER

feeder adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

175908C1

DEFLECTOR

ASSY, feeder front LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

179024C1

HINGE

HANDLE ASSY, feeder locking latch

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

locking latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

8

177138C1

ROD

locking latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9

367833R1

SPRING

locking latch rod

2шт.

10

181933C2

ADAPTER ASSY, feeder

1шт.

11

1324572C1

PANEL

SHEET, feeder bottom, Replaces 187488C2

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

3/8 phc flange

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 phc flanged

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

no. 3/8 x 1-1/4 t/hds

1шт.

12

1305368C91

HOUSING

ASSY, feeder, Includes: Ref. 36

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 prevailing torque hex.

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

13

185839C2

SUPPORT

ASSY, feeder top, Replaces 1305768C1

1шт.

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT, 1/2 x 1-1/4 sq-nk crg znd type 8

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 phc flange

1шт.

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, fan bearing retainer

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

14

175907C1

ROD

top door hinge

1шт.

15

180556C91

DOOR

ASSY, feeder top

1шт.

16

179749C2

PRODUCT GRAPHIC

danger

1шт.

17

197523C3

COVER

feeder top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 phc flange

1шт.

18

184645C1

CLIP

top door latch

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

19

7422T

SPRING

top door latch

1шт.

20

634248R1

SEAL

SEAL, feeder top

1шт.

21

197527C1

SUPPORT

feeder top seal

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

197526C1

SEALING STRIP

lower door seal

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 p/t lock

1шт.

23

197525C2

DOOR SEAL

SEAL, feeder lower door, Serial Range: -40000

1шт.

24

197524C1

STRAP

STRIP, lower door seal spacer, Serial Range: -40000

1шт.

25

193612C2

DOOR

ASSY, feeder bottom

1шт.

26

175931C1

ROD

feeder bottom door hinge

1шт.

27

193611C2

HINGE

feed plate

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

28

167570C1

CHAIN,203.2mm L

lower door latch

2шт.

29

635503R1

SPRING,148.8mm Free Length

lower door latch

2шт.

30

189556C2

SUPPORT

ASSY, feeder lift

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

3/8 flange lock

1шт.

31

197554C3

CHANNEL

lift cylinder lock

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

1шт.

32

M296

SPRING

lift locking rod

1шт.

33

197849C1

ROD

cylinder lift lock

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

34

187209C2

SUPPORT

ASSY, feeder bottom, With stone retarder drum

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

35

187213C1

SUPPORT

ASSY, feeder bottom rear, With stone retarder drum

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

36

184782C1

PRODUCT GRAPHIC

danger

2шт.

37

1307750C1

BOLT,Hex, 5/8" - 11 x 11mm

header leveling adjusting

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 phc hdn

1шт.

38

GAGE, reluctance pickup, Refer to this group under feed conveyor

1шт.

39

1307486C1

SUPPORT ASSY.

SUPPORT ASSY, transducer mounting

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 hex-hd flange

1шт.

40

182318C1

COVER

SUPPORT, feeder top front

1шт.

41

1307485C1

SUPPORT ASSY, draw bolt, Used w/ 17.5 ft header

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

42

182030C2

SUPPORT

GUIDE, upper

2шт.

43

182035C1

SUPPORT

GUIDE, lower

2шт.

44

1338021C1

PIN,7.94mm OD

5/16 safety hitch, Replaces 407171R1

2шт.

45

175913C1

ANGLE

adapter LH. w/o stone retarder drum

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

46

175914C1

ANGLE

adapter RH, w/o stone retarder drum

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

47

1322144C1

ANGLE

top door stop

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

48

1319745C1

SUPPORT ASSY.

SUPPORT ASSY, feeder bottom, w/o stone retarder drum

1шт.

49

1319962C1

SEAL

feeder rear, Start Serial: 40001

1шт.

50

1319960C1

SUPPORT

feeder bottom rear, Start Serial: 40001

1шт.

51

1319964C1

STRIP

BAR, feeder bottom rear spacing, Start Serial: 40001

1шт.

SB 68-87 Header Adapter Pkg for 1010 & 1015 Headers 1968694C1

1шт.

Выбрано товаров: 129
