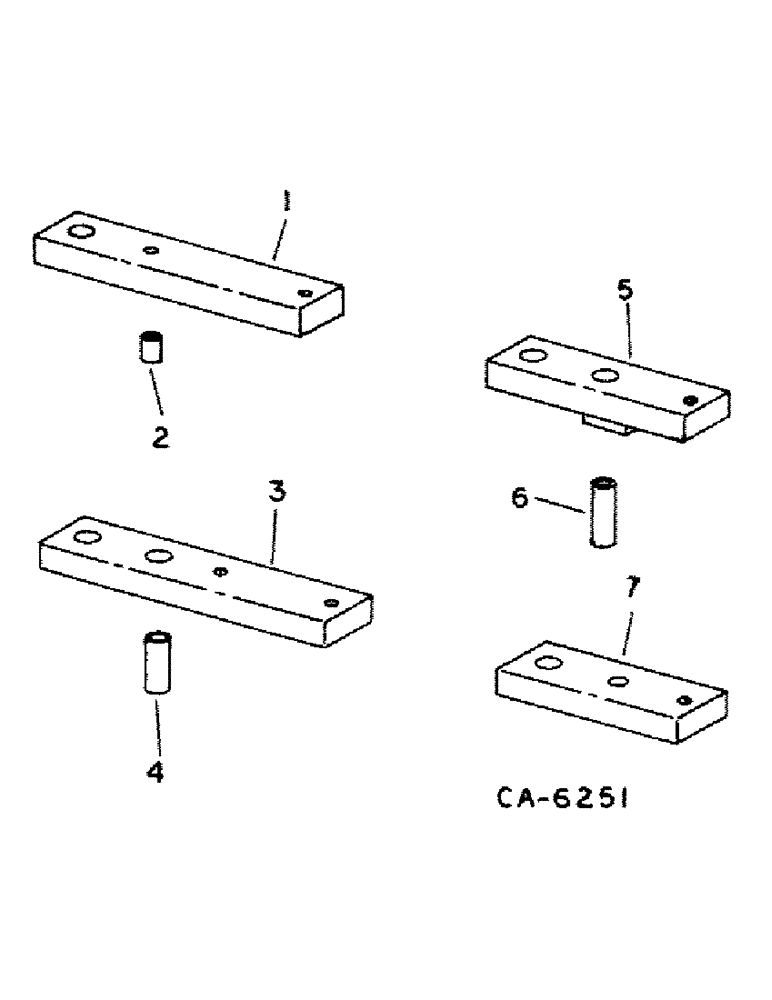

Запчасти Case IH 1482 (09-02) - FRAME, TRACTOR DRAWBAR EXTENSIONS, WITH 1-3/8 INCH PTO (12) - FRAME

1

BAR, draw, Not serviced separately, order kind 142 code 3027, Used on 1066, 1086, 1466, 1486, 1566, 1586, 3388 and 3588 IH tractors w/ 3 pt hitch

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

25557R1

WASHER,13/16" x 1 3/4" x .219", HDN

.812 x 1.750 x .219 phc hdn

1шт.

2

26915B

SPACER

.781 x 1.125 x 1.38

1шт.

3

BAR, drawn, Not serviced separately, order kind 142 code 3028, Used for IH 1066, 1086 and 3388 w/ hvy duty swinging drawbar

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

3/4 x 4-3/4 type 5 , Course threads

1шт.

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1 x 4-1/2 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

9849633

NUT,1"-8, G5

1шт.

26665R1

WASHER,1 1/16" x 2 1/2" x .219", HDN

1.062 x 2.500 x .219 phc hdn

1шт.

4

214564C1

SPACER

1.03 x 1.375 x 2.9

1шт.

5

67839C1

EXTENSION

BAR, draw, Used for IH 1466, 1486, 1566, 1586 and 3588 w/ hvy duty swinging drawbar

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 type 5

1шт.

NLS

NO LONGER SERVICED

BOLT, 3/4 x 4-1/2 type 5

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

481540R1

WASHER

.781 x 2.12 x .25 ht

1шт.

6

67864C1

PIN

SPACER

1шт.

7

BAR, drawn, Not serviced separately, order 143 code 3030, For competitive tractors w/ 1-3/8 PTO and for Case 2294 tractors w/ 3 PT hitch

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1 x 4-1/2 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

9849633

NUT,1"-8, G5

1шт.

26665R1

WASHER,1 1/16" x 2 1/2" x .219", HDN

1.062 x 2.500 x .219 phc hdn

1шт.
