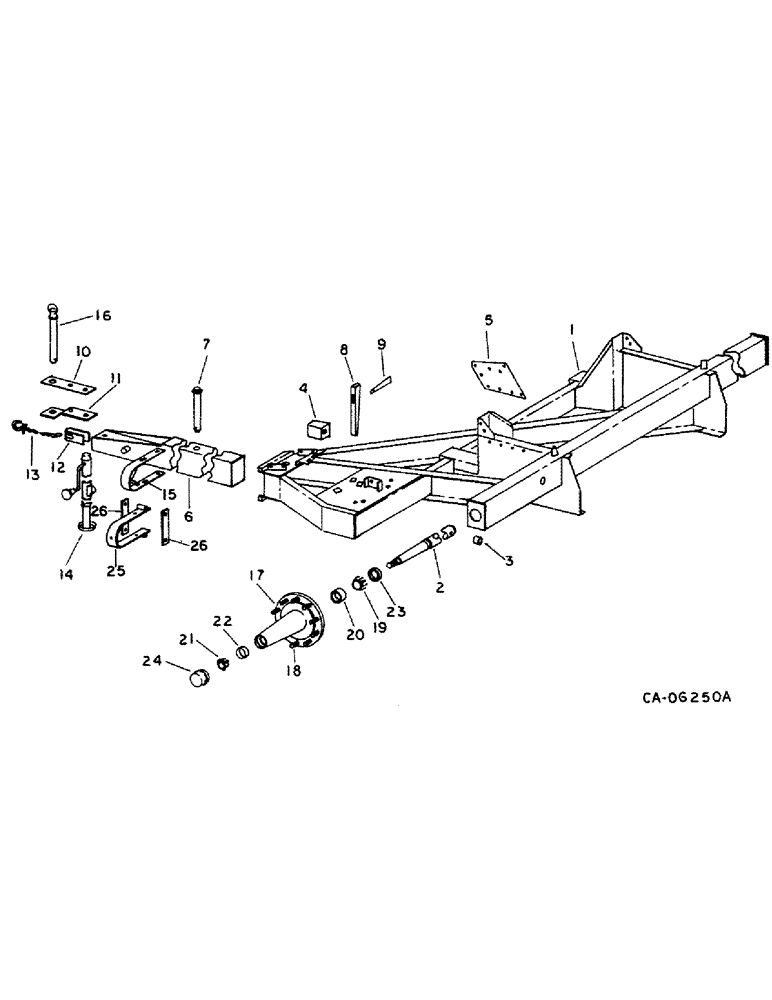

Запчасти Case IH 1482 (09-01) - FRAME, MAIN FRAME AND TONGUE (12) - FRAME

1

FRAME ASSY, main (NSS)

1шт.

2

189328C1

SPINDLE

main axle

2шт.

23675R1

BOLT,Hex, 1"-8 x 7 1/2", G5

1 x 7-1/2 type 5

1шт.

9849633

NUT,1"-8, G5

1шт.

427667

SLOTTED NUT,1 1/2"-6, G5

NUT, 1-1/2-NF pln slt type 5

1шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

1шт.

49068K

WASHER

1-17/32 x 2-1/2 x 3/16

1шт.

3

179237H1

SPACER

1.06 x 1.50 x 1.12 long LH

1шт.

3

187058C1

SPACER

1.06 x 1.50 x 1.44 long RH

1шт.

4

185677C2

STOP

ASSY, tongue

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

189559C1

SUPPORT

angle plate

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

6

189248C3

TOW BAR

TONGUE ASSY

1шт.

7

189325C2

PIN ASSY.

PIN ASSY, tongue pivot

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

181895C1

WASHER

1.28 x 2.24 x .18

1шт.

21653R1

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

1шт.

8

189327C1

WEDGE

tongue locating

1шт.

1338021C1

PIN,7.94mm OD

5/16 safety hitch, Replaces 407171R1

1шт.

429-112

3/4-NF type 8

1шт.

9

184909C1

WEDGE

BAR, knockout wedge

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

10

189254C1

BAR

hitch

1шт.

11

189255C1

PLATE

SUPPORT, clevis

1шт.

21466R1

BOLT,Hex, 1"-8 x 8 1/2", G5

1 x 8-1/2 type 5

1шт.

9849633

NUT,1"-8, G5

1шт.

131144

SPARE PART,1"

1"

1шт.

12

189352C2

CHANNEL

safety chain

1шт.

13

63506C3

CHAIN (AG)

CHAIN ASSY, safety

1шт.

14

179809C2

HOIST

ASSY, lifting jack

1шт.

15

184947C1

ANGLE

CHANNEL ASSY, wheel stop, Serial Range: -10000

2шт.

15

1308485C3

CHANNEL

ASSY, wheel stop, Start Serial: 10001

2шт.

27955R1

BOLT,Hex, 5/8" - 11 x 10 1/2", Gr 8

5/8 x 10-1/2 phc type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

16

184588C1

PIN

ASSY, draw bar

1шт.

955264R1

PIN

1/4 qa

1шт.

17

189329C92

HUB

ASSY, main wheel, Includes: Ref. 18, 20 and 22 (SB 83-90)

2шт.

18

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

hub

20шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

1шт.

19

529452R91

ROLLER BEARING

CONE, hub inner bearing

2шт.

20

529453R1

BEARING, CUP

CUP, hub inner bearing

2шт.

21

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

CONE, hub outer bearing

2шт.

22

376463C1

BEARING CUP

CUP, hub outer bearing

2шт.

23

189333C1

OIL SEAL

oil inner

2шт.

24

189425C1

HUB CAP

CAP, hub

2шт.

25

1320018C1

CHANNEL

ASSY, wheel stop, For use w/ 50 series tractor

2шт.

26

1320020C1

BAR

wheel stop, For use w/ 50 series tractor

4шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.
