Запчасти Case IH 1482 (10-05) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

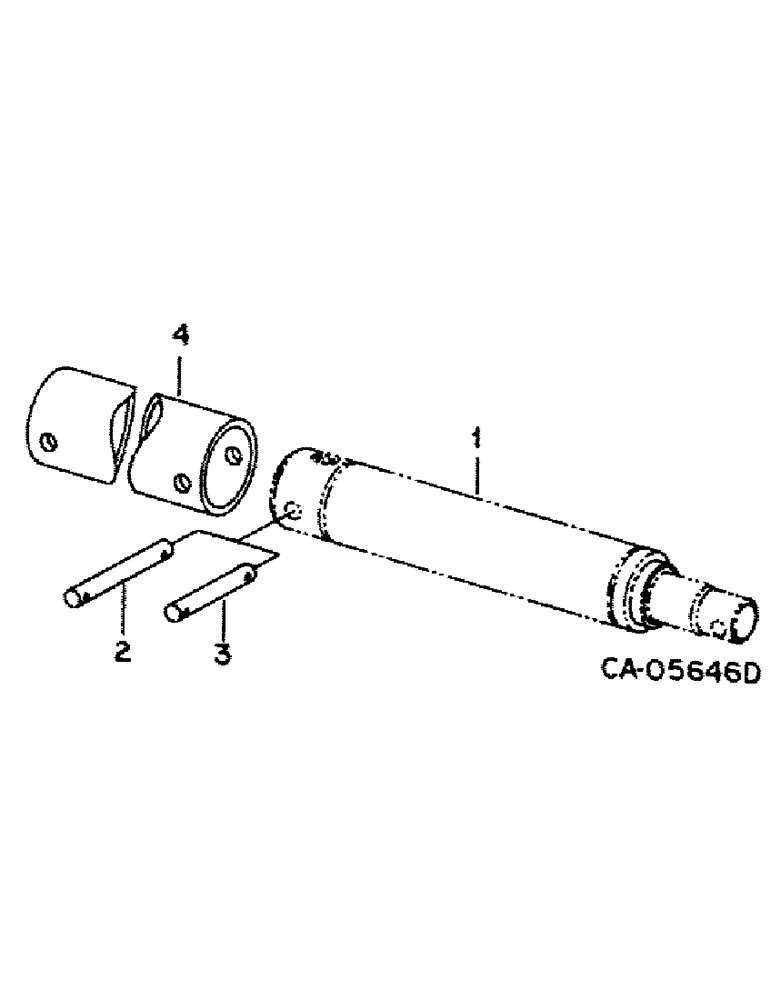

Схема запчастей Case IH 1482 - (10-05) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS
3
1
2
4

Артикул

Название

Примечание

Количество

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY, header lift, For service parts refer to cyl-1 section A

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1482 INTERNATIONAL HARVESTER PULL BEHIND COMBINE, Assembly, header lift

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service, 1 for use without sunflower attachment, 2 for use with sunflower attachment of 17.5 ft. header

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

lift cylinder, 1 for field installed rock trap, 2 for sunflower attachment

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, For use w/o sunflower attach

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

1320145C1

BRACE

TUBE, extension, 10.24 in., 260 mm, Without rock trap, 1 for use w/o sunflower attach, 2 for use w/ sunflower attachment or 17.5 ft. header

1шт.

4

1320729C2

TUBE,2.75" ID, 3.5" OD

extension, 12.23 in., 310.75 mm, With flats on one end of tube, For field installed rock trap

2шт.

4

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

extension, 12.23 in., 310.75 mm, No flats on end of tube, 1 for factory installed rock trap, 2 for sunflower attachment

1шт.

Выбрано товаров: 11
