Запчасти Case IH 1482 (10-04) - HYDRAULICS, HYDRAULIC DIAGRAM, UNLOADER SWING (07) - HYDRAULICS

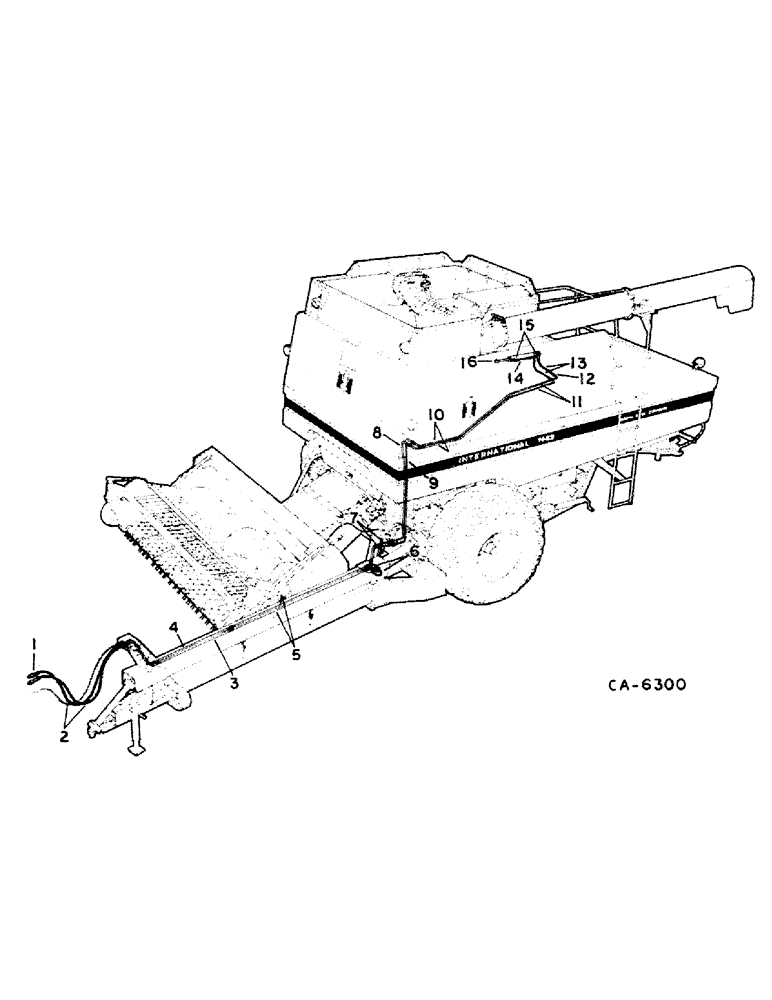

Схема запчастей Case IH 1482 - (10-04) - HYDRAULICS, HYDRAULIC DIAGRAM, UNLOADER SWING (07) - HYDRAULICS
11
13
3
2
9
8
13
4
16
14
10
5
15
1

Артикул

Название

Примечание

Количество

1

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, male

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

391797R1

HYD CONNECTOR,7/16"-20, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 7/16-20 37 deg

2шт.

2

183549C2

HOSE,6.35 mm ID x 1295.00, SAE 100R1 CLASS 7

front unloader swing, 55 in. - 1295 mm

2шт.

2

1324882C1

HOSE

front loader swing, 61 in. - 1550 mm, For Case 4WD tractors

2шт.

3

1330582C1

UNLOADING TUBE

TUBE ASSY, unloader swing, Replaces 183534C1

1шт.

4

1330583C1

UNLOADING TUBE

TUBE ASSY, unloader swing, Replaces 183533C1

1шт.

5

183532C1

UNLOADING TUBE

TUBE ASSY, unloader swing

2шт.

6

183531C1

HOSE,6.35 mm ID x 686.00, SAE 100R1 CLASS 7

ASSY, center unloader swing, 27 in. - 685.8 mm

2шт.

7

183530C1

UNLOADING TUBE

TUBE ASSY, unloader swing

2шт.

8

183529C1

UNLOADING TUBE

TUBE ASSY, unloader swing

1шт.

9

183528C1

TUBE

ASSY, unloader swing

1шт.

10

183527C1

TUBE

ASSY, unloader swing

2шт.

11

183526C1

UNLOADING TUBE

TUBE ASSY, unloader swing

2шт.

12

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 1/4 bulkhead

2шт.

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 1/4 bulkhead union

2шт.

13

195604C1

HOSE ASSY.

HOSE ASSY, top unloader swing, 15 in. - 381.00 mm

2шт.

14

196800C1

HYD TUBE

TUBE ASSY, unloader swing

1шт.

15

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 c-z hyd fld adj 90D

2шт.

369751

O-RING, 1/4 OD tube

2шт.

183547C1

VENT

orifice

1шт.

16

113960C93

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 381mm Stroke

CYLINDER ASSY, unloader swing, For service parts refer to cyl-1 section B

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

28196R1

SPLIT PIN/SAFETY PIN

PIN, 5/8 x 2.250 clevis

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.
