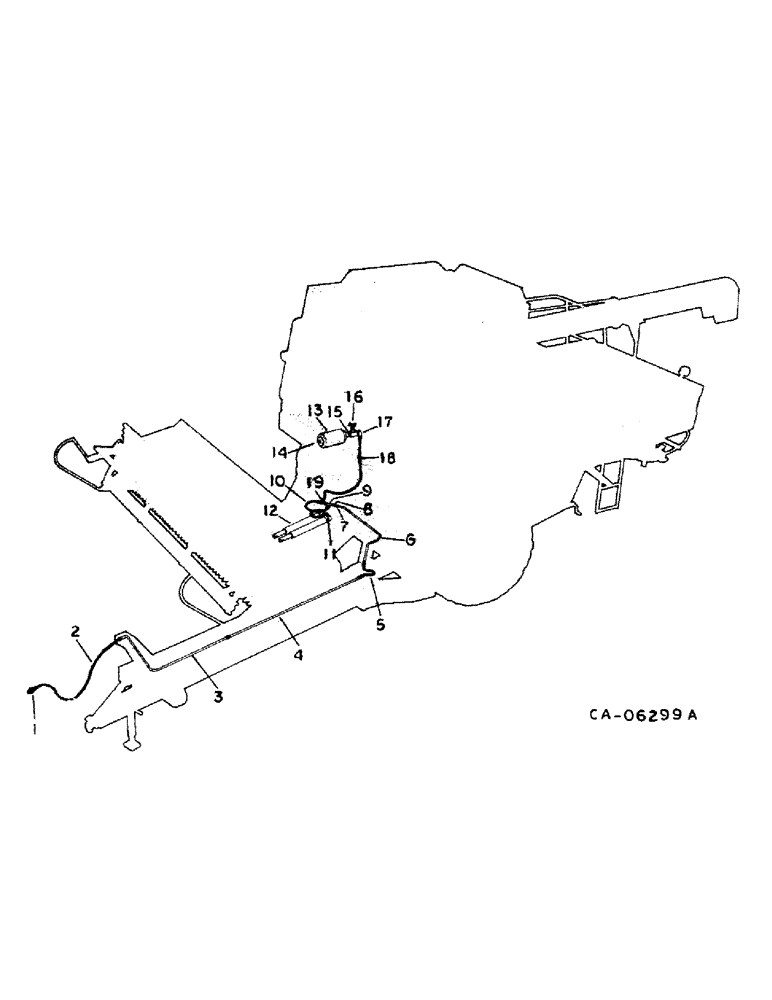

Запчасти Case IH 1482 (10-03) - HYDRAULICS, HYDRAULIC DIAGRAM, HEADER LIFT (07) - HYDRAULICS

1

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, male

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 3/4-16 37 deg

1шт.

2

1324883C1

HOSE

ASSY, header lift, 53 in./1345 mm, Replaces 196822C1 & 1310709C1

1шт.

2

1324884C1

HOSE

ASSY, header lift, 63 in./1600 mm, For Case 4WD tractors

1шт.

3

1330585C1

HYD TUBE

TUBE ASSY, header lift, Replaces 183538C1

1шт.

4

183537C2

HYD TUBE

TUBE ASSY, header lift

1шт.

5

1270738C1

HYDRAULIC HOSE,0.38" ID x 25.00", SAE 100R1 A

Header Lift, Replaces 150825C91 0.38" ID x 25.00", SAE 100R1 A

1шт.

6

183536C1

TUBE

ASSY, header lift

1шт.

7

183535C1

UNION

cylinder, Serial Range: hose-tube

1шт.

183548C1

VENT

orifice

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 c-z hyd fld short swivel

1шт.

9

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2 c-z hyd fld tube swivel, For use w/ sunflower attachment

1шт.

10

195602C1

HOSE

ASSY, lift cylinder, 22 in. - 558.8 mm, 1 for use w/o sunflower attach, 2 for use w/ sunflower attach

1шт.

11

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 c-z hyd fld adj 90D, 1 for use w/o sunflower attach, 2 for use w/ sunflower attach

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

12

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, header lift, 1 for use w/o sunflower attach, 2 for use w/ sunflower attach or 17.5 ft. header, Refer to this group under header lift cylinder and cyl-1 section A

1шт.

12

127779C94R

REMAN-HYD CYLINDER

1482 INTERNATIONAL HARVESTER PULL BEHIND COMBINE, ASSY, header lift, 1 for use w/o sunflower attach, 2 for use w/ sunflower attach or 17.5 ft. header

1шт.

12

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

13

84927C91

TANK

ASSY, accumulator, Replaces 196811C91 by also furnishing connector 380632R1 and o-ring 368269R1

1шт.

196821C1

STRIP

2шт.

172133C1

SUPPORT

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

172131C1

GUARD

tank valve

1шт.

172130C91

VALVE

ASSY

1шт.

15

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, c-z hyd fld 5/8 to 1/2 sht

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

For 5/8 in. OD, Used with tank 196811C91

1шт.

15

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, c-z hyd fld 3/4 to 1/2 sht

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6, Used with tank 84927C91

1шт.

16

187779C1

VALVE

needle, Includes: o-ring

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

For 1/2 in. OD

2шт.

17

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 c-z hyd fld adj 90D

1шт.

18

850262C1

HOSE

ASSY, 83 in./2108.2 mm

1шт.

19

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2 c-z hyd fld tube swivel

1шт.
