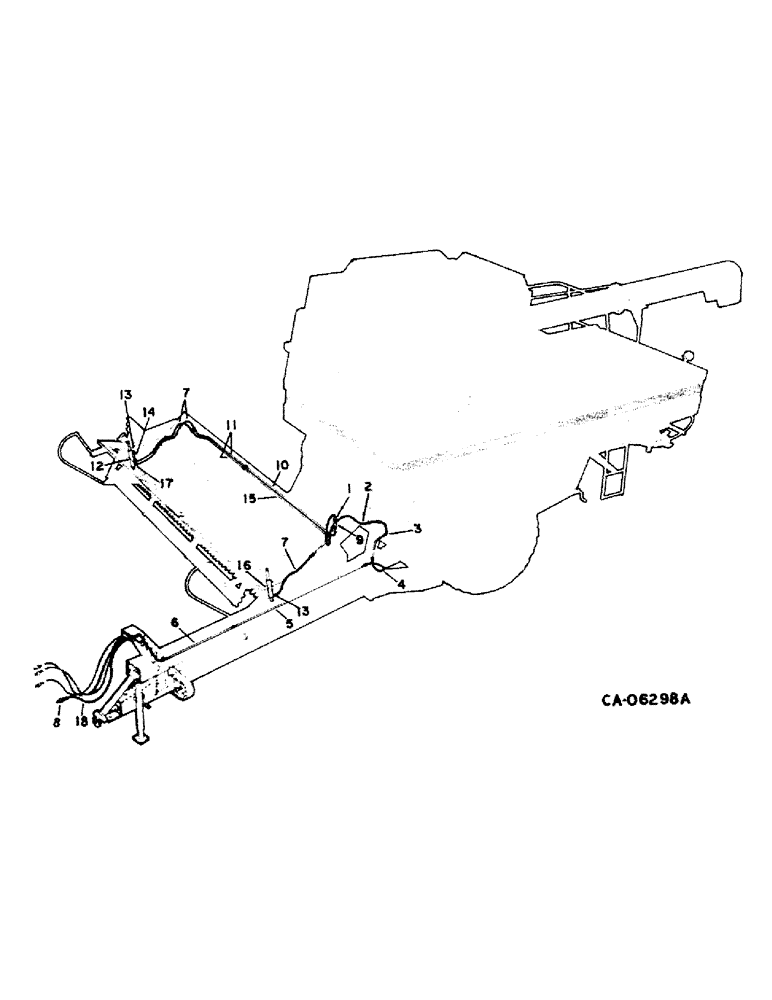

Запчасти Case IH 1482 (10-02) - HYDRAULICS, HYDRAULIC DIAGRAM, REEL LIFT (07) - HYDRAULICS

1

187562C1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

1шт.

2

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

ASSY, rear, 68 in., 1727.2 mm, Serial Range: -20000

1шт.

2

183920C1

HOSE ASSY.

HOSE ASSY, rear, 77 in., 1955.8 mm, Start Serial: 20001

1шт.

3

183540C1

TUBE

ASSY, rear

1шт.

4

183543C1

HOSE

ASSY, center, 26 in., 660.4 mm

1шт.

5

183541C2

HYD TUBE

TUBE ASSY, center

1шт.

6

1330584C1

HYD TUBE

TUBE ASSY, front, Replaces 183542C1

1шт.

7

336081R91

HOSE

ASSY, 46 in., 1168.4 mm

3шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, male

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 9/16-18 x 7/8-14 37 deg

1шт.

9

187563C1

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

183546C1

VENT

orifice

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

1шт.

10

1301188C1

HYD TUBE

TUBE ASSY, pressure to master cylinder

1шт.

11

1301189C1

HYD TUBE

TUBE ASSY, outer

2шт.

12

547358R94

CYLINDER BLOCK

CYLINDER ASSY, master, For service parts refer to cyl-1 section B

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

1шт.

547388R94

SEAL KIT

KIT, cylinder service

1шт.

13

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 c-z hyd fld adj 90D

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

14

1301186C1

HYD TUBE

TUBE ASSY, master cylinder

1шт.

15

1301187C1

HYD TUBE

TUBE ASSY, master to slave cylinder

1шт.

16

532763R92

CYLINDER ASSY.

CYLINDER ASSY, slave, For service parts refer to cyl-1 section A

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

1шт.

532531R92

SEAL KIT

KIT, cylinder service

1шт.

17

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 c-z hyd fld short

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

18

1321247C1

HOSE ASSY.

HOSE ASSY, front, 56.2 in., 1430 mm

1шт.

18

1324886C1

HOSE ASSY.,90 Degree, 9/16"-18 x 1/4" NPT

HOSE ASSY, front, 66 in., 1675 mm, For Case tractors 4WD tractors

1шт.
