Запчасти Case IH 1482 (10-01) - HYDRAULICS, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS

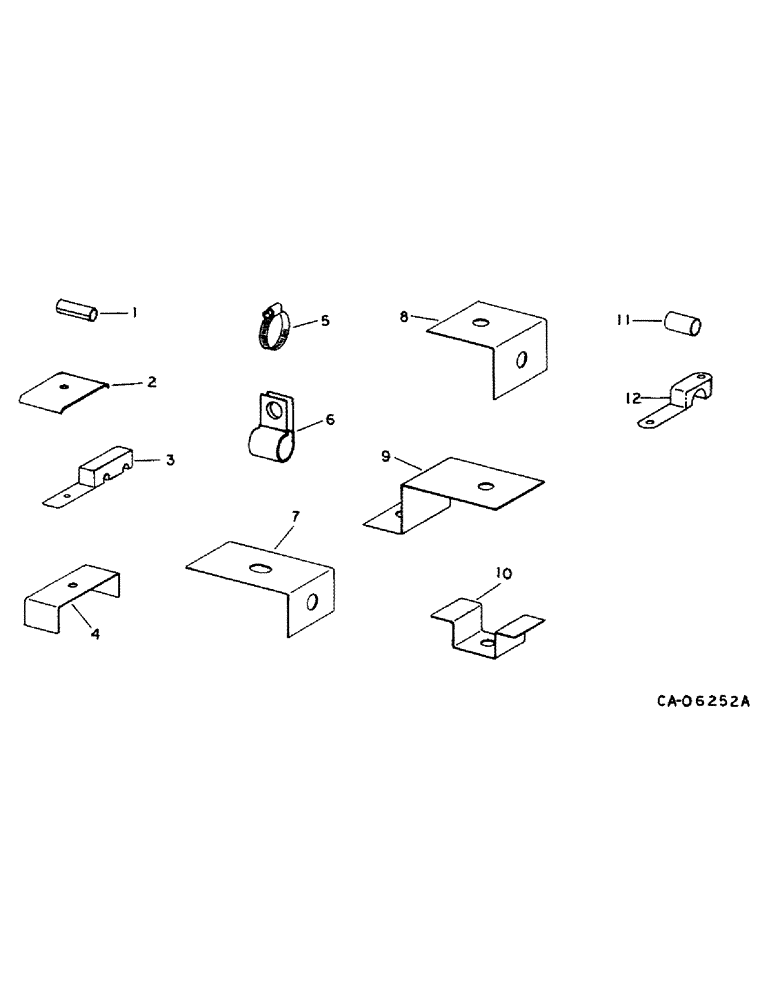

Схема запчастей Case IH 1482 - (10-01) - HYDRAULICS, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS
12
7
8
6
3
1
11
4
10
2
9
5

Артикул

Название

Примечание

Количество

1

163489C1

STRIP

For 1/4 in. OD tube, metal, For use with, reel lift, unloader swing

2шт.

1

163490C1

RUBBER INSULATOR

STRIP, 3/8 in. OD tube, metal, For use with, reel lift

11шт.

1

163491C1

RUBBER INSULATOR

STRIP, For 1/2 in. OD tube, metal, For use with, header lift

8шт.

2

165601C1

CLAMP

.406 dia. hole, metal, For use with, header lift

8шт.

2

165602C1

CLAMP

.344 dia. hole, metal, For use with, reel lift

2шт.

3

183824C1

CLAMP

unloader swing, plastic

12шт.

3

183825C1

CLAMP

reel lift

4шт.

3

1301178C1

CLAMP

header lift, plastic

7шт.

4

178816C1

CLIP

hose

2шт.

5

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type F hose, For use with, master reel lift cylinder, unloader swing cylinder

1шт.

6

573099C2

CLAMP, reel lift

2шт.

6

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

header lift hose

2шт.

7

187833C1

SUPPORT

unloader swing

1шт.

8

196518C1

SUPPORT TUBE

SUPPORT, hyd. reel lift tube

1шт.

9

196517C1

SUPPORT TUBE

SUPPORT, For use with, reel lift (2), unloader swing cylinder (4)

1шт.

10

1301323C1

CLAMP

CLIP, reel lift hose

1шт.

11

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe 1/4" Pipe x 3/4"

2шт.

12

183821C1

CLAMP

reel lift, plastic

1шт.

12

196447C1

CLAMP

header lift, plastic

1шт.

Выбрано товаров: 19
