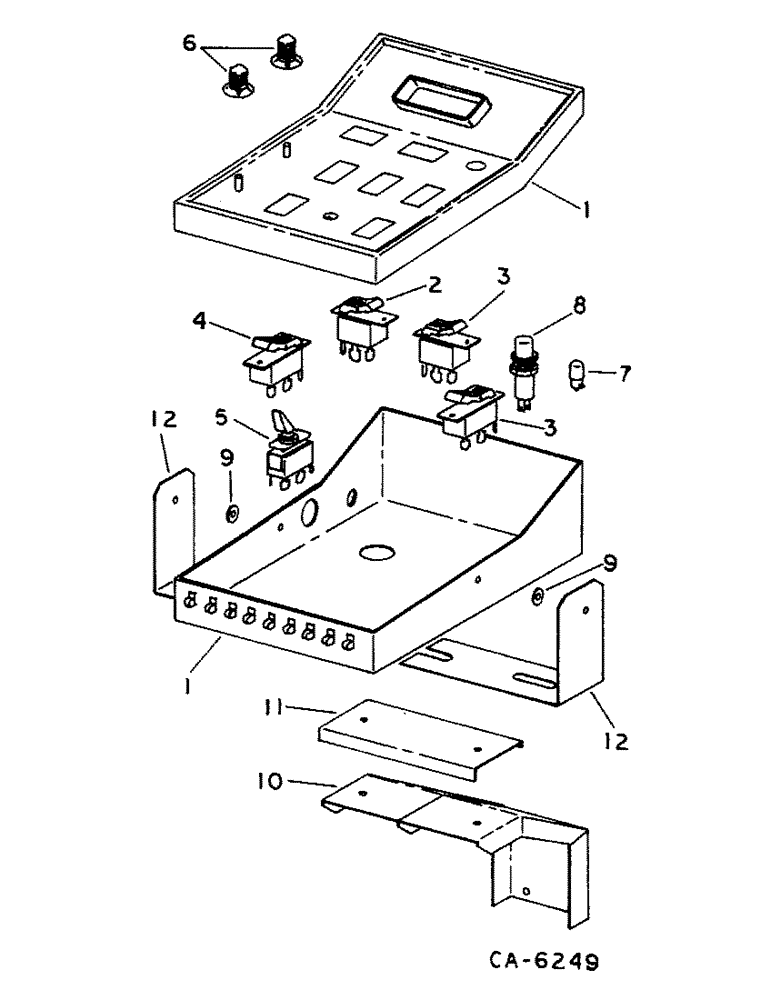

Запчасти Case IH 1482 (08-07) - ELECTRICAL, SHAFT SPEED MONITOR CONTROL PANEL (06) - ELECTRICAL

1300661C91

REMAN-ELECT MONITOR

CONTROL ASSY, Includes: Ref. 1 - 9

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

179454C1

RUBBER WASHER

5/16 rubber friction

1шт.

223-36

FUSE,2 Amp, Type 3AG

2 amp

1шт.

1

HOUSING ASSY, Not serviced separately, order control assy, R187646C91 or 1300661C91

1шт.

2

183896C1

SWITCH

ASSY, console power

1шт.

3

1301004C1

SWITCH

ASSY, console, optional w/ 183896C1, Used for night light and unloader clutch

2шт.

3

183896C1

SWITCH

ASSY, console, Optional w/ 1301004C1 and 1301005C1

2шт.

3

1301005C1

SWITCH

ASSY, console, Tachometer, Optional w/ 183896C1

1шт.

4

198960C1

SWITCH

ASSY, speed variator, Used for fan, pickup and rotor drive

3шт.

5

187560C1

SWITCH

ASSY, feeder clutch

1шт.

6

1301036C1

BUTTON

KNOB, alarm set control

2шт.

7

58554C1

BULB,C2F, #1892, 14V

LAMP, console night light

3шт.

8

109369C91

LIGHT ASSY.

LAMP ASSY, Serviceable parts are:

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

no. 1815

1шт.

9

179454C1

RUBBER WASHER

5/16 rubber

2шт.

10

1301052C91

SUPPORT

ASSY, console, Includes: Ref. 11 & 12

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

1301057C1

CHANNEL

support

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

1301058C1

ANGLE

support

2шт.
