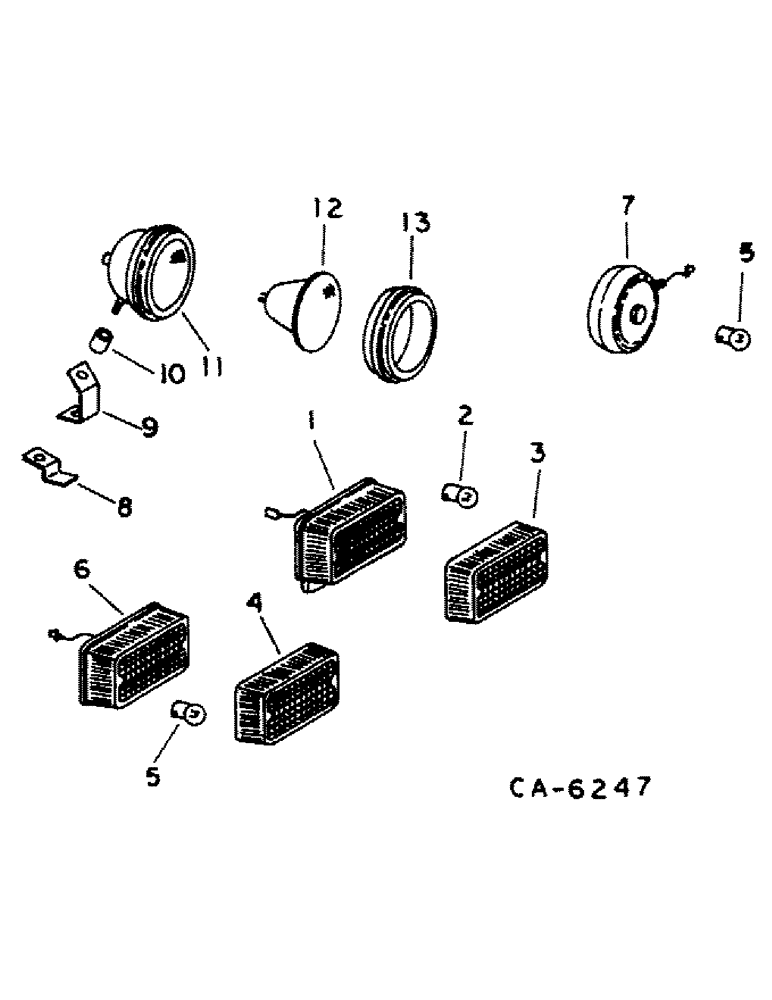

Запчасти Case IH 1482 (08-06) - ELECTRICAL, LIGHTS AND MOUNTING (06) - ELECTRICAL

1

216044C92

LAMP

ASSY, tail, Includes: Ref. 2 & 3

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 c-z flange lock

1шт.

28151R1

SCREW

#10 x 2-1/4 phc p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

2

9417867

BULB,C6, #1157, 12.8V

no. 1157

2шт.

3

216045C1

LENS

tail lamp

2шт.

4

130883C1

LENS

warning lamp

2шт.

5

9417866

BULB,C6, #1156, 12.8V

no. 1156

1шт.

6

130882C91

LAMP

LAMP ASSY, rear warning, Includes: Ref. 4 & 5

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 c-z flange lock

1шт.

28151R1

SCREW

#10 x 2-1/4 phc p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

7

196978C91

LIGHT

LAMP ASSY, flasher front, Includes: Ref. 5

2шт.

120371

NUT,1/2"-20, G5

1шт.

8

184974C1

BRACKET

SUPPORT, head lamp

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

9

561915R1

BRACKET

lamp mount

5шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

10

1267358C2

SEAT

INSULATOR, mounting

5шт.

11

391005R91

HEADLIGHT

LAMP ASSY, Includes: Ref. 12 & 13

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

373662R91

LAMP

UNIT

5шт.

13

676078R1

RETAINER

light

5шт.
