Запчасти Case IH 1482 (08-05) - ELECTRICAL, JUNCTION CONTROL BOX (06) - ELECTRICAL

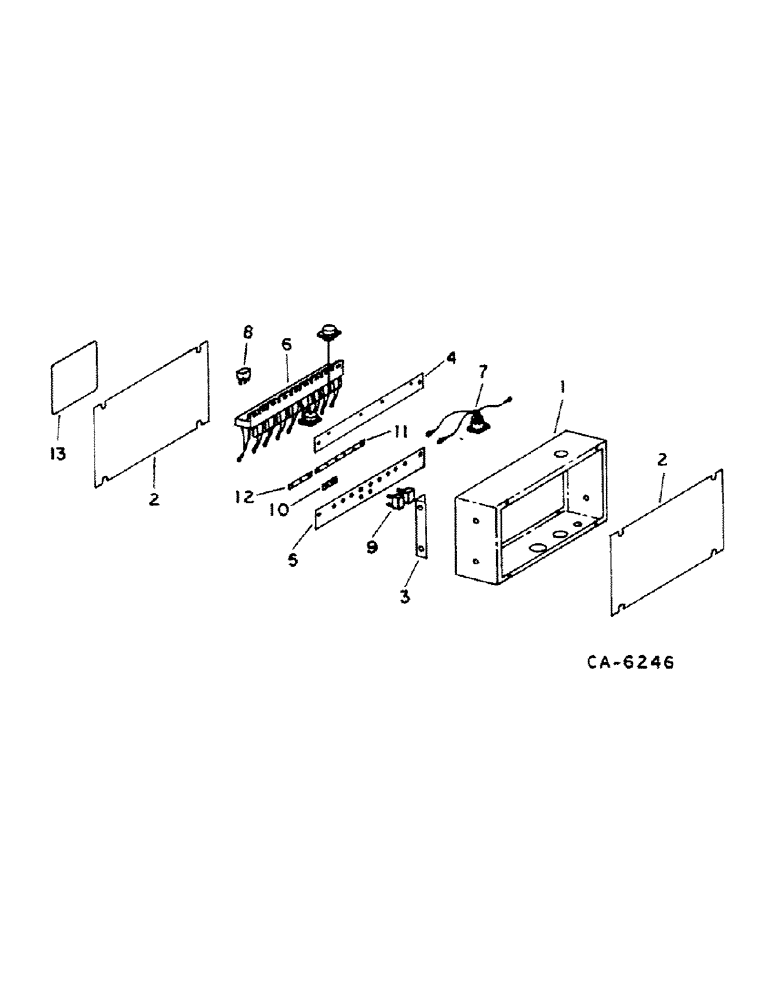

Схема запчастей Case IH 1482 - (08-05) - ELECTRICAL, JUNCTION CONTROL BOX (06) - ELECTRICAL
10
8
2
6
11
1
5
9
13
12
7
3
4
2

Артикул

Название

Примечание

Количество

187658C91

CONTROL

ASSY, junction, Includes: Ref. 1 - 13

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

1

1301194C1

BOX

ASSY, junction

1шт.

2

1301195C1

PLATE

junction box

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

3

1301200C1

ANGLE

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

4

1301199C1

SUPPORT

control box relay

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

5

1301198C1

SUPPORT

circuit breaker power bar

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

6

1301202C1

HARNESS

ASSY, junction box

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

no. 6 x 3/8 phc p/hdcr mach

1шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext-int tooth lock

1шт.

160035

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

7

1301201C1

CABLE

ASSY, junction box

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

no 6 x 3/8 phc p/hdcr mach

1шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext-int tooth lock

1шт.

8

1301458C1

RELAY

9шт.

9

262969C91

FUSE

BREAKER, circuit

2шт.

10

1301157C1

BAR

circuit breaker power

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

160035

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 1- ext-int tooth lock

1шт.

11

1301196C1

BAR

circuit breaker left

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

160035

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

12

1301197C1

BAR

circuit breaker right

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

160035

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10-NF x 3/8 znp p/hdcr mach

1шт.

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER, no. 10 ext-int tooth lock

1шт.

13

1301203C1

PRODUCT GRAPHIC

caution junction box

1шт.

Выбрано товаров: 43
