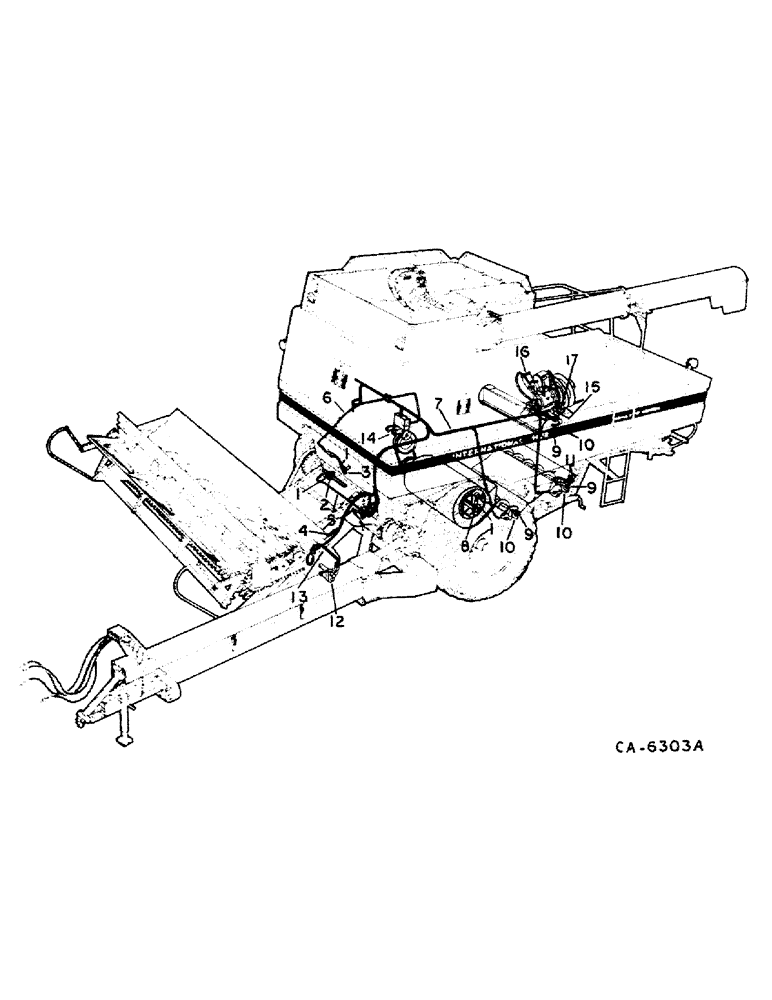

Запчасти Case IH 1482 (08-04) - ELECTRICAL, ELECTRICAL DIAGRAM, SHAFT SPEED MONITOR CONTROL, VARIABLE SPEED MOTORS (06) - ELECTRICAL

1

GAGE, reluctance pick-up, Refer to group 21 under rotor, Refer to group 24 under cleaning fan and shields, Refer to group 33 under feed conveyor

3шт.

2

DISC ASSY, transducer pick-up, Refer to group 33 under feed conveyor

1шт.

3

ROTOR, multi-position tachometer, Refer to group 21 under rotor

1шт.

4

187711C1

HARNESS

ASSY, feeder

1шт.

5

1301419C1

HARNESS

ASSY, feeder sensor

1шт.

6

HARNESS ASSY, main RH, Refer to this group under electrical diagram - night, tail and warning lights

1шт.

7

HARNESS ASSY, main center, Refer to this group under electrical diagram - night, tail, and warning lights

1шт.

8

SPROCKET, fan speed tachometer, Refer to group 24 under cleaning fan and shields

1шт.

9

178800C1

CLAMP

ASSY, beater, clean grain and tailings

3шт.

9

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper

1шт.

10

196984C1

SWITCH

ASSY, beater, clean grain and tailings and monitor control

3шт.

10

1301577C1

SWITCH

ASSY, straw chopper

1шт.

11

187997C1

SWITCH

ASSY, shoe

1шт.

12

MOTOR ASSY, drive actuator, Refer to group 33 under header variable drive

1шт.

13

187676C1

HARNESS

ASSY, header

1шт.

14

MOTOR ASSY, fan variable, Refer to group 24 under fan drive

1шт.

15

936694R91

SWITCH

variable pulley limit

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

138526

LOCK WASHER

no. 6 int tooth lock

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

16

MOTOR ASSY, variable, Refer to group 7 under rotor drive adjustment

1шт.

17

1301694C1

HARNESS

ASSY, micro-switch

2шт.
