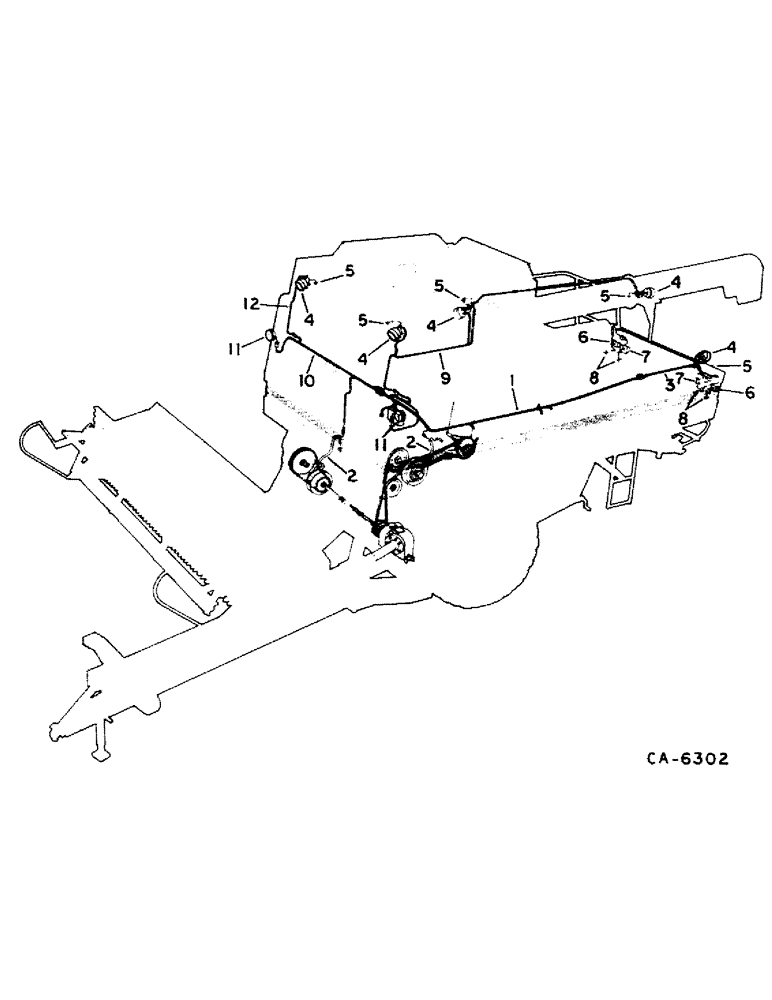

Запчасти Case IH 1482 (08-03) - ELECTRICAL, ELECTRICAL DIAGRAM, NIGHT, TAIL AND WARNING LIGHTS, FEEDER AND UNLOADER CLUTCH (06) - ELECTRICAL

1

187673C92

WIRE HARNESS

HARNESS ASSY, main center, Serial Range: -5500

1шт.

1

1301693C91

HARNESS

ASSY, main center, Start Serial: 5501

1шт.

If service is required on connector ring, furnish package and ring.

1шт.

2

HARNESS, brush holder, Refer to group 33 under electrical clutch

2шт.

3

183751C1

HARNESS

ASSY, main rear

1шт.

4

LAMP ASSY, Refer to this group under lights and mountings

5шт.

5

196524C1

CABLE

ground

5шт.

6

LAMP ASSY, rear warning, Refer to this group under lights and mountings

2шт.

7

LAMP ASSY, tail, Refer to this group under lights and mountings

2шт.

8

187799C1

CABLE

ground

4шт.

9

187675C1

HARNESS

ASSY, LH front grain tank and unloader light

1шт.

10

187674C2

HARNESS

ASSY, main RH

1шт.

11

LAMP ASSY, front flasher, Refer to this group under lights and mountings

2шт.

12

183749C1

HARNESS

ASSY, RH front grain tank light

1шт.

1301428C1

ELECTRICAL WIRE

WIRE, tail light, Not illustrated, For 86 series tractor

1шт.

173040C1

ROD, CONNECTING

CONNECTOR

1шт.

149459C91

SEAL PACKAGE

PACKAGE, connector ring, Consists of:

1шт.

RING, connector (NSS)

10шт.
