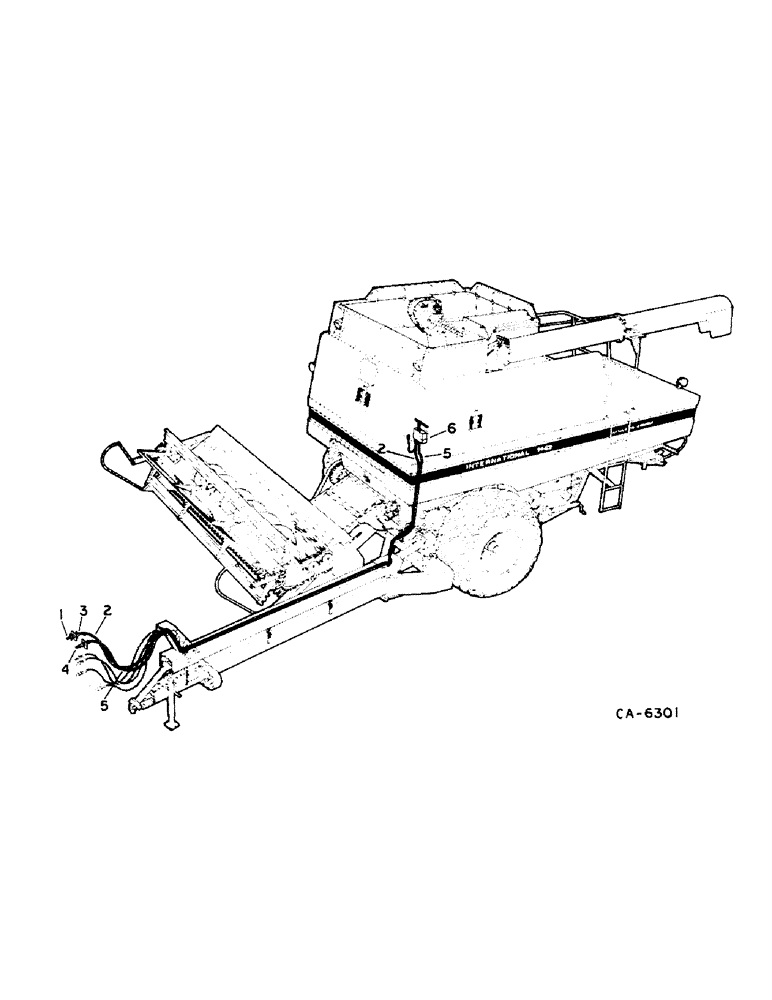

Запчасти Case IH 1482 (08-02) - ELECTRICAL, ELECTRICAL DIAGRAM, POWER AND SIGNAL HARNESS (06) - ELECTRICAL

1

183755C1

CABLE

ASSY, power, For 86 series tractor, 90 in., 2286.0 mm

1шт.

1

183756C1

CABLE

CALBE ASSY, ground, For 86 series tractor, 12 in., 304.88 mm w/ one clip

1шт.

1

183758C1

CABLE

ASSY, magnetic switch to fuse panel, For 86 series tractor, 12 in., 304.8 mm w/ two clips

1шт.

2

187654C91

HARNESS

ASSY, main power and turn signal, Includes: Ref. 3

1шт.

1301191C1

CONNECTION

CONNECTOR, ring

1шт.

Ref #2 - Mating connector is 131498C1

1шт.

3

483509C1

PLUG

ASSY, 7 pole, Includes: bolt and nut

1шт.

Ref #3 - Mating connector is 131497C1

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

4

187648C91

HARNESS

ASSY, Serial Range: console-hitch

1шт.

If service is required on connector ring, furnish package and ring.

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no 6 x 1/2 znp p/hdcr mach

1шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext-int tooth lock

1шт.

5

187656C91

HARNESS

ASSY, signal hitch to box, 24 pole

1шт.

If service is required on connector ring, furnish package and ring.

1шт.

6

CONTROL BOX, junction, Refer to this group under junction control box

1шт.

149459C91

SEAL PACKAGE

PACKAGE, connector ring, Consists of:

1шт.

RING, connector (NSS)

10шт.
