Запчасти Case IH 1482 (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRAPS (06) - ELECTRICAL

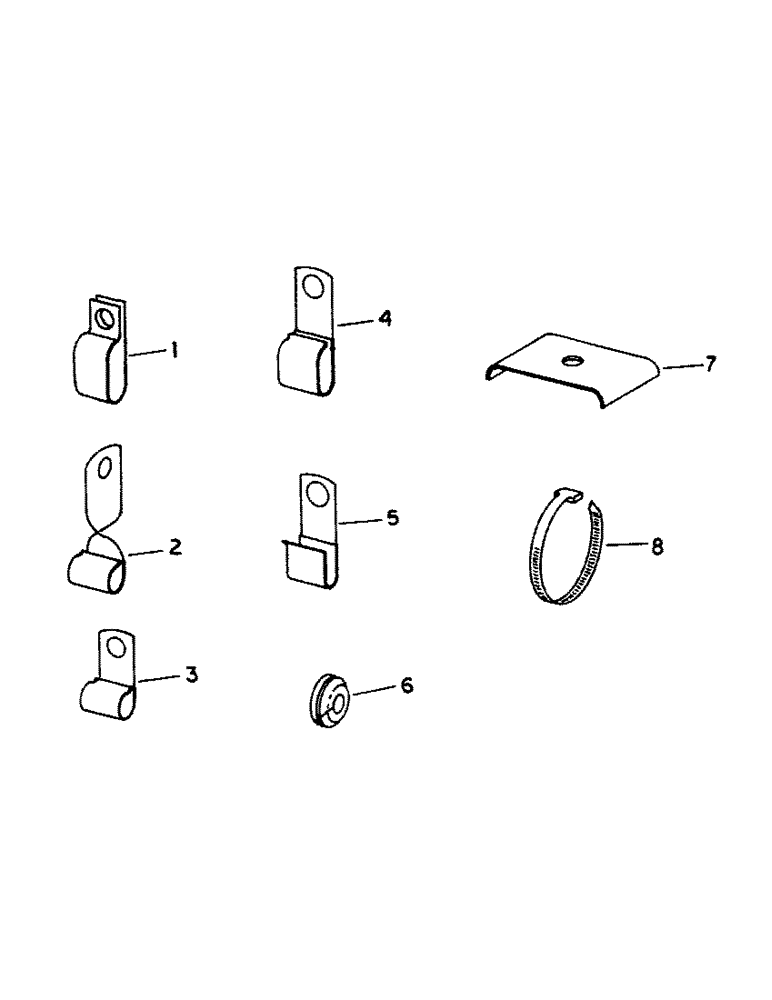

Схема запчастей Case IH 1482 - (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRAPS (06) - ELECTRICAL
7
8
2
5
1
3
4
6

Артикул

Название

Примечание

Количество

1

315411R1

CLIP

Used for harness main center signal, hitch to box (I)

8шт.

2

363660R1

CLIP

feeder (I)

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, Used for, header harness (2), LH front grain tank and (13) unloader light, main center harness (25), main rear harness (6) main RH harness (12) (I)

1шт.

3

362127R1

CLIP

harness main RH

1шт.

3

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, Used for, harness main center (10), main rear (3), main RH (5) (I)

1шт.

3

358986R1

CABLE CLIP

CLIP, feeder

1шт.

3

384554R1

CLIP

Used for, LH front grain tank and unloader light (4), RH front grain tank light (4) (I)

1шт.

4

362666R1

CLIP

Used for, harness main center (10), main rear harness (3), main RH harness (5) (I)

1шт.

5

263717R91

CLIP

elec. clutch cable (I)

1шт.

6

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

tail light cable

2шт.

6

117972

GROMMET,1/4" ID x 1" x .062", Diag Cut

5/16 x 1 x 3/8 d/c rub, Used for, RH and LH front grain tank unloader light (2), rear deck

1шт.

6

117971

GROMMET,1/4" ID x 1" x .062", Diag Cut

rear harness

1шт.

6

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 x 1-1/16 x 7/16 d/c rub, front brg. support, left separator post (2), main RH harness

1шт.

6

128449C1

GROMMET

fender reluctance cage

1шт.

6

548262R1

GROMMET

front bearing support

1шт.

6

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 in. rubber

1шт.

7

165601C1

CLAMP

harness anchor

2шт.

8

702093C1

CABLE TIE

STRAP, tie, 3 in. maximum, Used for, console to hitch (11), feeder (2), header harness (4), LH front grain tank and unloader light (9), main center harness (2), main rear harness (3), signal hitch to box (12)

1шт.

8

291207C1

CLAMP

STRAP, tie, 4 in. maximum, signal, Serial Range: hitch-box

12шт.

Выбрано товаров: 19
