(15-01) - WHEEL AND TRACTION, MAIN WHEEL RIMS AND DISC

Запчасти Case IH 1482 (15-01) - WHEEL AND TRACTION, MAIN WHEEL RIMS AND DISC Wheels & Traction

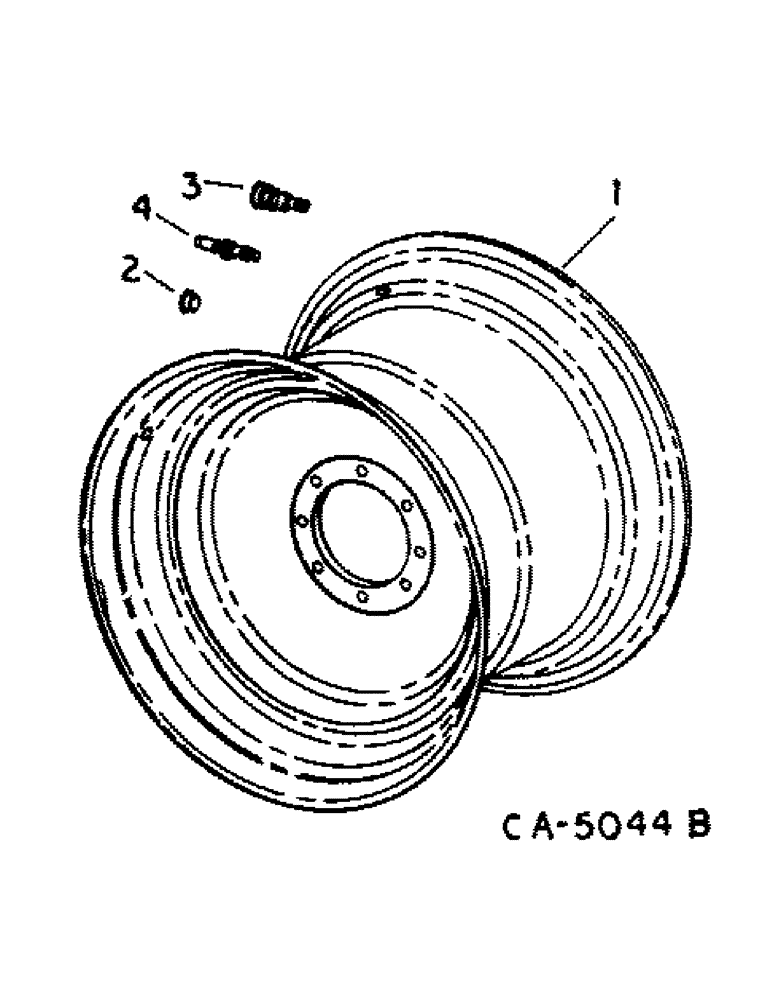

Схема запчастей Case IH 1482 - (15-01) - WHEEL AND TRACTION, MAIN WHEEL RIMS AND DISC Wheels & Traction
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

196197C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 25 main, For use w/ 26L-26 tires

2шт.

2

417194C1

PLUG

valve hose

2шт.

3

179482C1

VALVE STEM

VALVE ASSY, tubeless tire

2шт.

4

407184C1

VALVE STEM

CORE, tire

2шт.
