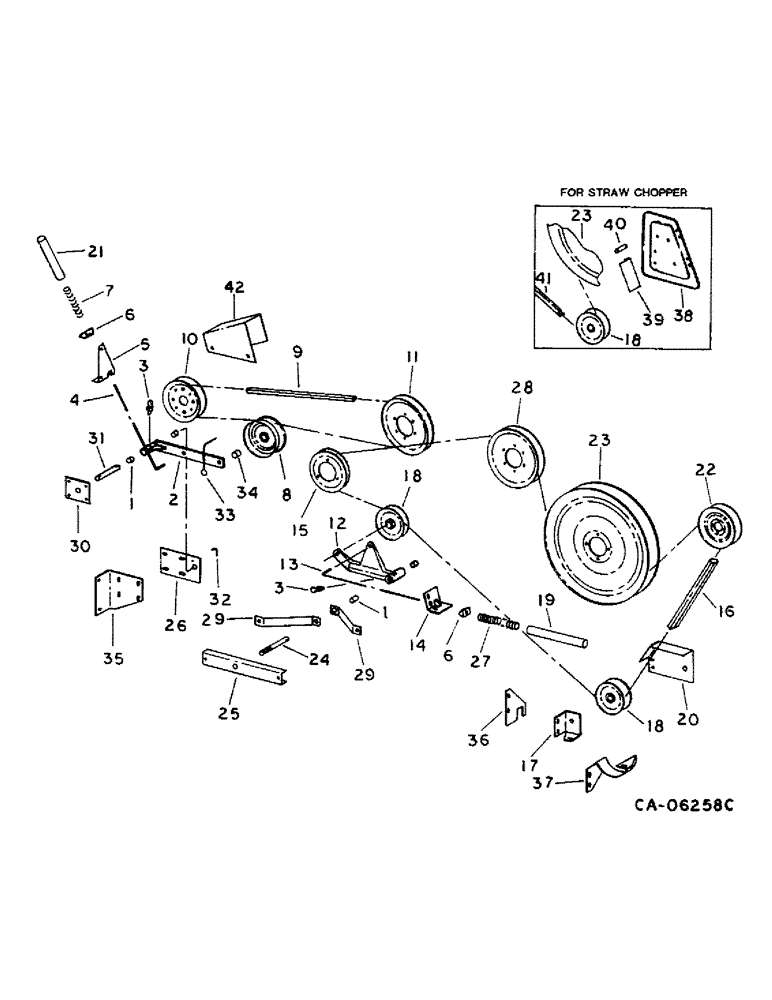

Запчасти Case IH 1482 (20-19) - SEPARATOR, BELT DRIVE, RIGHT HAND SIDE Separation

1

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

fan jackshaft drive

4шт.

2

189631C92

LEVER

ASSY, fan jackshaft drive

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

2шт.

4

191531C2

ROD

fan jackshaft drive arm tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

22042R1

WASHER

.531 x 2.000 x .105

1шт.

5

189639C1

SUPPORT

fan jackshaft drive idler spring

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

6

194652C1

PIVOT

BAR, rod seat

2шт.

7

155311C1

SPRING

arm rod

1шт.

8

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8 in. OD, 203.2 mm OD

1шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

5/8 x 4-1/4 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

9

185712C1

BELT,22.33 mm W x 3492.69 mm L

V-BELT , Fan jackshaft drive, OC 22.33 mm W x 3492.69 mm L

1шт.

10

189628C1

PULLEY

ASSY, jackshaft drive, 9.25 in. OD, 235.0 mm OD

1шт.

11

183325C1

PULLEY

ASSY, cleaning unit drive, 13.00 in. OD, 330.2 mm OD

1шт.

11

1308402C1

PULLEY

ASSY, cleaning unit driven, 12.5 in. OD, 317.5 mm OD, Parts accessories

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

12

193447C91

ARM

LEVER ASSY, elevator jackshaft idler, Includes: Ref. 1

1шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

13

192359C1

ROD

elevator drive idler lever, Use w/o straw chopper

1шт.

13

181145C1

ROD

cleaning unit drive belt, Use w/ straw chopper

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

14

186489C1

ANGLE

elevator drive bar

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

15

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, jackshaft drive, 9.75 in. OD, 247.7 mm OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

16

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC 0.879" W x 255.99" L

1шт.

17

188253C2

SUPPORT

ASSY, elevator drive fixed idler, Replaces 1309455C1

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

673214R91

PULLEY

elevator drive idler, 7-5/16 in. OD, 185.7 mm OD

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

186515C1

ELEVATOR TUBE

TUBE, elevator drive spring

1шт.

20

1302350C1

SHIELD

SUPPORT, drive fixed idler

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21

192938C2

TUBE

SPACER, jackshaft drive tube

1шт.

22

195161C1

PULLEY

ASSY, beater drive, 8-3/8 in. OD, 212.9 mm OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

193682C1

PULLEY

ASSY, shaker shaft driven, 25 in. OD, 635.0 mm OD

1шт.

104234

RIVET,FH, 3/16" x 3/8"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

188298C2

STUD

jackshaft pivot arm

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

25

186588C2

CHANNEL

pivot arm support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

26

184945C1

BAR

SUPPORT, fan jackshaft idler drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

27

195086C1

SPRING

elevator drive idler lever

1шт.

28

183325C1

PULLEY

ASSY, jackshaft driven, 13.00 in. OD, 330.2 mm OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

29

182676C2

SUPPORT

elevator pivot

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

30

191466C1

BAR

PLATE, elevator drive arm

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

31

187165C1

PIN

pivot arm

1шт.

471194R1

AXLE PIN

PIN, quick attachable cot

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

.781 x 1.750 x .105

1шт.

32

55074C1

PIN

ROD, idler lever stop

1шт.

33

194894C1

ROD

belt support upper

1шт.

34

184944C1

SPACER

tightener pulley

1шт.

35

184946C1

SUPPORT

jackshaft idler

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

36

1302067C1

GUIDE

BAR, elevator belt upper, Serial Range: -10000

1шт.

36

1302352C1

GUIDE

BAR, elevator belt upper, Start Serial: 10001

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

37

1302068C2

GUIDE

SUPPORT, elevator belt lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

38

1302353C1

GUARD

SUPPORT, elevator fixed idler, Start Serial: 10001

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

39

1302351C1

DEFLECTOR

SUPPORT, elevator rear shield, Start Serial: 10001

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

40

564737R1

SPACER,7/8" Tube x 2 1/16"

.656 x .88 x 2.06, Start Serial: 10001

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

50115K

WASHER

.656 x 2.5 x .105 pln

1шт.

41

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC 0.879" W x 200.99" L, Start Serial: 10001

1шт.

42

1313968C1

SHIELD

CHANNEL, jackshaft belt

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.
