Запчасти Case IH 1482 (20-15) - SEPARATOR, STRAW CHOPPER Separation

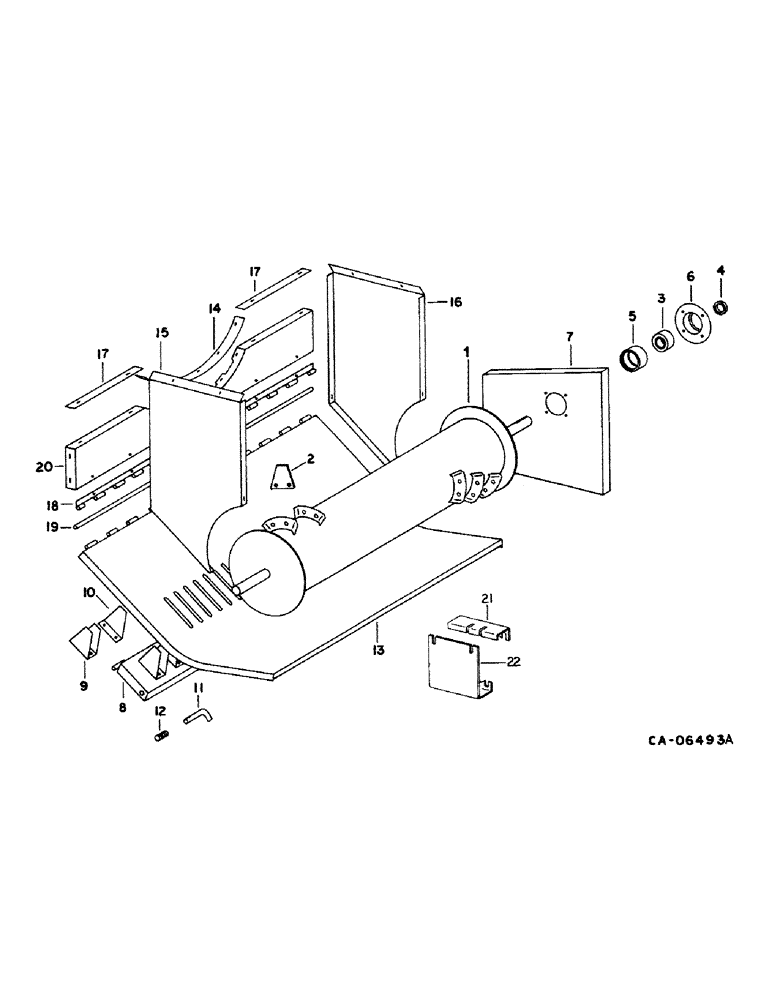

Схема запчастей Case IH 1482 - (20-15) - SEPARATOR, STRAW CHOPPER Separation
15
17
16
21
7
8
18
4
20
10
9
19
11
14
1
12
2
17
22
5
3
6
13

Артикул

Название

Примечание

Количество

1

185158C91

ROTOR

ASSY, Includes: Ref. 2

1шт.

23071R1

WASHER

.906 x 2.000 x .164

1шт.

21290R1

WASHER

1.344 x 2.000 x .054

1шт.

21779R1

WASHER

1.344 x 2.000 x .105

1шт.

2

174641C1

BLADE

rotor

28шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF slt type 5

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

3

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY

2шт.

4

455112R11

COLLAR

ASSY

2шт.

5

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

bearing

2шт.

6

936130R1

FLANGE

bearing

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

181057C1

SUPPORT

ASSY, LH

1шт.

7

181058C1

SUPPORT

ASSY, RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

185135C91

BAR

ASSY, concave, Includes: Ref. 9 & 10

1шт.

9

1302763C1

KNIFE

BLADE, concave

12шт.

10

1302764C1

KNIFE

BLADE, concave

1шт.

11

186736C1

ROD

concave bar

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

12

540815R1

SPRING

concave bar

2шт.

13

181147C2

PLATE

BOTTOM ASSY, deflector

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

182950C1

SUPPORT

STRIP, cage filler rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

15

182948C2

DEFLECTOR

SUPPORT, discharge LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

16

182949C2

DEFLECTOR

SUPPORT, discharge RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

17

182895C1

FILLER

BAR, bulkhead rear

2шт.

18

182893C1

HINGE

conc

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

19

182980C1

ROD,11.11mm OD x 1556mm L

concave hinge

1шт.

20

SUPPORT, lower cage rear, Refer to group 21 under cage

1шт.

21

181209C1

SUPPORT

chopper sensor

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

22

181208C1

SUPPORT

chopper shaft

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

Выбрано товаров: 53
