Запчасти Case IH 1482 (20-14) - SEPARATOR, STRAW SPREADER SHIELDS Separation

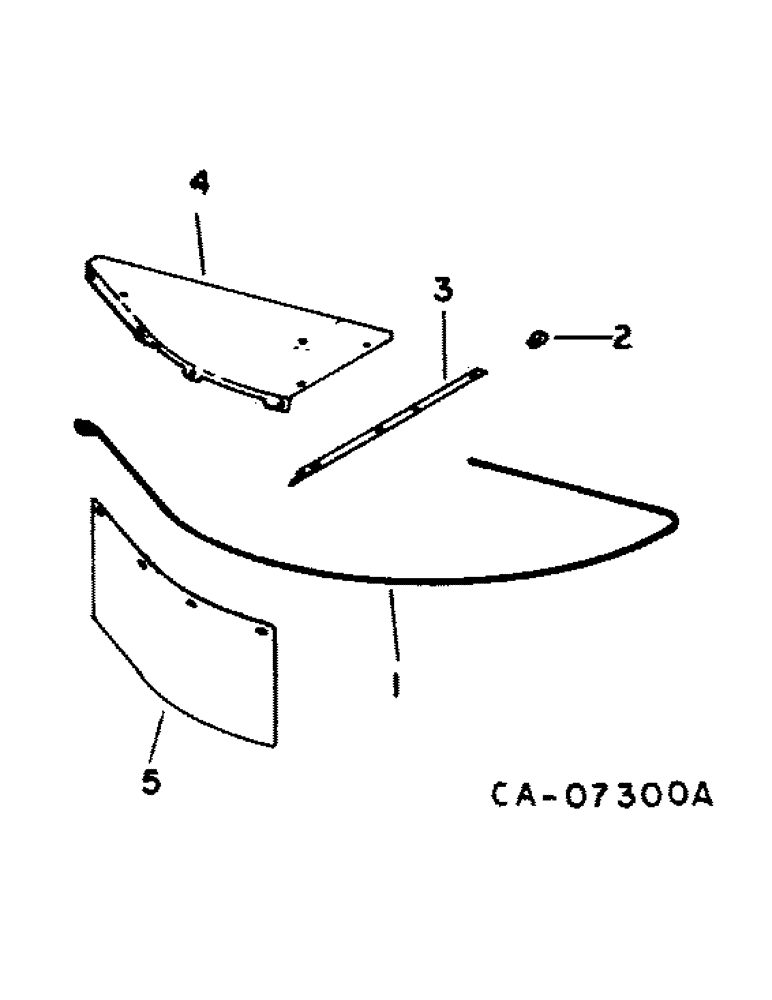

Схема запчастей Case IH 1482 - (20-14) - SEPARATOR, STRAW SPREADER SHIELDS Separation
4
1
5
3
2

Артикул

Название

Примечание

Количество

1

1308912C2

PIPE

shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

168417H1

CLAMP,11/16", 3/8" Bolt

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

1308913C1

SUPPORT

shield

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 glange lock

1шт.

4

1308914C1

SHIELD

SUPPORT, LH

1шт.

4

1308915C1

SHIELD

SUPPORT, RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

1308916C2

SHIELD

SHEET, side

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

Выбрано товаров: 16
